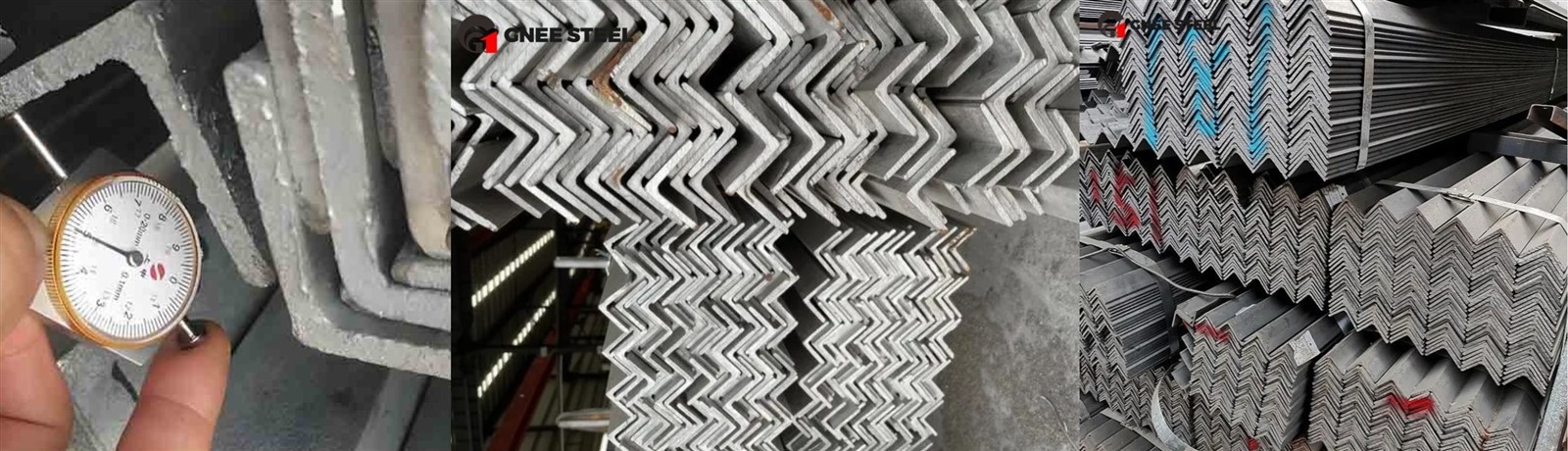

L Shaped 45 X 4mm Mild Steel Angle
L Shaped 45 X 4mm Mild Steel Angle is an equilateral angle steel made of low carbon steel, with both sides 45mm long, 4mm thick, L-shaped cross section and 90° internal angle. It is a simple cross-section steel and is commonly used in metal structures and machinery manufacturing.
Performance characteristics
Mechanical properties: Its yield strength is generally around 235MPa, and its tensile strength is in the range of 370-500MPa.
Processing performance: It is easy to perform processing operations such as cutting, welding, bending, and drilling.
Corrosion resistance: After surface treatment such as galvanizing, painting, and anti-rust paint, the corrosion resistance can be significantly improved.
Strong versatility: The 45x4mm specification is more common, and it has good compatibility with other building materials and mechanical parts, strong interchangeability, and is easy to use in different projects. It can be used with various steel sections, plates, etc.
Equal Angle Steel Sizes
| Note: These are only some of the sizes, if you need other sizes, please contact us. | |||||
| Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
| 100*12 | 17.898 | 160*10 | 24.729 | 200*25 | 73.600 |
| 100*16 | 23.257 | 160*12 | 29.391 | 220*16 | 53.901 |
| 110*8 | 13.532 | 160*14 | 33.987 | 220*18 | 60.250 |
| 110*10 | 16.690 | 160*16 | 38.581 | 220*20 | 66.533 |
| 110*12 | 19.782 | 175*12 | 31.800 | 220*22 | 72.751 |
| 110*14 | 22.809 | 175*15 | 39.400 | 220*24 | 78.902 |
| 120*12 | 21.666 | 180*12 | 33.159 | 220*26 | 84.987 |
| 120*10 | 18.370 | 180*14 | 38.382 | 250*18 | 68.956 |
| 120*12 | 21.666 | 180*16 | 43.542 | 250*20 | 76.180 |
| 125*8 | 15.504 | 180*18 | 48.634 | 250*24 | 90.433 |
| 125*10 | 19.133 | 200*14 | 42.894 | 250*25 | 93.770 |
| 125*12 | 22.696 | 200*15 | 45.300 | 250*26 | 97.461 |
| 125*14 | 26.193 | 200*16 | 48.680 | 250*28 | 104.422 |
| 140*10 | 21.488 | 200*18 | 54.401 | 250*30 | 111.318 |
| 140*12 | 25.522 | 200*20 | 60.056 | 250*32 | 118.149 |
| 140*14 | 29.490 | 200*24 | 71.168 | 250*35 | 128.271 |
45 45mm Steel Angles Application
Construction field: used in light frames, roof trusses, purlins, supports, etc. in building structures to enhance the stability and bearing capacity of building structures.
Machinery manufacturing: can be used to make guardrails, workbench brackets, conveyor line frames, etc. for mechanical equipment to provide support and protection for mechanical equipment.
Other industries: used as supporting structures and connectors in bridge construction; used to construct hull structures, deck railings, etc. in shipbuilding; can also be used in the construction of power towers and communication towers.
GNEE Steel Angle Steel Manufacturer
Based on the strategic layout of the enterprise and the global market demand, we have established a long-term and stable cooperative relationship with the steel industry, and cooperated with Europe, Sweden, Russia, Germany, the United States, Japan, India and other countries.
All GNEE products are supplied according to the standards of ASTM/AISI in the United States, DIN in Germany, JIS in Japan, and GB in China, and can be supplied according to the technical requirements provided by customers.
