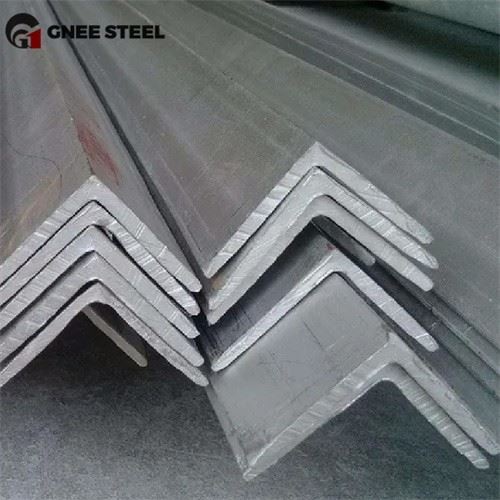

S275JR Hot Rolled Angle Steel Bar
GNEE Steel is a manufacturer, supplier and exporter of S275JR Angle Bars. We are a company with 18 years of manufacturing experience and are engaged in offering a wide range of S275JR Angle Bars.
As an ISO certified company, we manufacture a large range of S275JR Angle Bars products and have a large international clientele. We supply our products to clients in India as well as countries and regions around the world like USA, UK, Italy, Germany, Australia etc.
S275JR Steel Equal Angle Specification
| Product Name | steel angle bar S275JR 1.0044 hot rolled angle steel bar |
| Specifications | equal angle steel bar:20-250mm unequal angle steel bar:20-250mm Thickness: 1.2mm~20mm Length: 2.0m~12m |
| Material | Low carbon steel |
| Steel Grade | Q195 = S195 / A53 Grade A Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C |
| Standard | EN10025 |
| Surface Anti-rusty Coating | black galvanized |
| Pipe Ends | Plain ends |
| Certificates | ISO 9001 / ISO 18001 / ISO 14001 / CE |
| Packing and Shipment | 1. OD 300mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles 2. above OD 300mm in bulk or according to custom opinion 3. 25 tons/container and 5 tons/size for a trial order; 4. For 20" container the max length is 5.8m; 5. For 40" container the max length is 11.8m. |
| Usage | Construction / building materials steel pipe Structure steel pipe Solar structure component steel pipe Fence post steel pipe Greenhouse frame steel pipe |
| Trade terms | FOB, CFR, CIF, EXW, FCA |
| Payment terms | T/T, LC |
| Delivery time | 7-15 days (based on quantity) after receiving advanced payment by T/T or LC . |
| Main market | Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania |
The chemical of S275JR angle steel bar : EN 10025-2-2004
| Nominal thickness =< 40(mm) C max = 0.21 Nominal thickness =< 40(mm) CEV max = 0.40 |
| C | Mn | P | S | N | Cu | CEV |
| max 0.22 | max 1.5 | max 0.04 | max 0.04 | max 0.012 | max 0.55 | max 0.42 |
Mechanical properties of 275JR hot rolled steel angle
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 | 150 - 250 |
| Rm - Tensile strength (MPa) Flat and long products | 430-580 | 410-560 | 400-540 | 380-540 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 | 150 - 200 | 200 - 250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 275 | 265 | 255 | 245 | 235 | 225 | 215 | 205 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
+20° 27 |
| Nominal thickness (mm): | to 1 | 1 - 1.5 | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) parallel, | 15 | 16 | 17 | 18 | 19 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 | 150 - 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 23 | 22 | 21 | 19 | 18 |
GNEE Steel Angle Steel Manufacturer
We have 18 years of experience in foreign exchanges. Our main products are profile steel, angle steel, flat steel, wear-resistant steel, etc. We can also provide quality certificates. We have experienced production staff, ready to meet your needs and ensure customer satisfaction. Welcome to visit our company.
