NFA 35-502 E36WA3 corten steel
Corrosion-Resistant Structural Steel Plate Products Description
E36WA3 weathering steel is a structural weathering steel also known as atmospheric corrosion resistant steel. The main alloying elements are chromium, nickel and copper with phosphorus added to give it excellent self-protective properties.
As E36WA3 atmospheric steel reacts with elements in the atmosphere, the material forms a rust layer over time, essentially protecting the steel from corrosion.

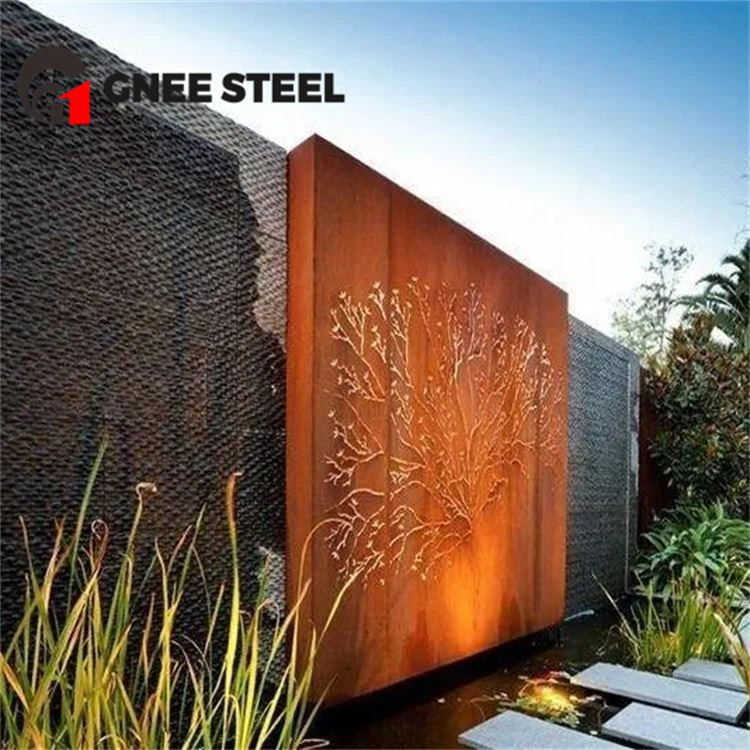

E36WA3 corten steel sheet metal is a long-lasting and cost-effective structural steel solution that can be used in applications such as steel bridges chimney gas applications and steel sculpture architecture because of the aesthetically pleasing surface of E36WA3.
In addition, E36WA3 corten steel structure with improved atmospheric corrosion resistance can also be used in applications such as construction, chimneys, manufacturing, trucks, silos, towers, and more.
NFA 35-502 E36WA3 Corten Steel Products Details
E36WA3 Steel Chemical Composition:
| C % | Mn % | Cr % | Si % | CEV % | S % |
| Max 0.12 | Max 1 | 0.3-1.25 | Max 0.75 | Max 0.52 | Max 0.035 |
| Cu % | P % | N % | |||
| 0.25-0.55 | 0.06 - 0.15 | Max 0.009 |
E36WA3 Steel Mechanical Properties:
| Grade | Min. Yield Strength Mpa | Tensile Strength MPa | Impact | ||||||||
| E36WA3 | Nominal Thickness (mm) | Nominal Thickness (mm) | degree | J | |||||||
| Thick mm | ≤16 | >16 ≤40 |
>40 ≤63 |
>63 ≤80 |
>80 ≤100 |
>100 ≤150 |
≤3 | >3 ≤100 | >100 ≤150 | 0 | 27 |
| E36WA3 | 355 | 345 | …. | …. | …. | …. | 510-680 | 470-630 | …. | ||
Weather Resistant Steel Plate Products Image
GNEE Group Team Photo
GNEE Group Exhibition Pictures
GNEE Group Customer Visits
If you have more needs and questions about NFA 35-502 E36WA3 corten steel, please contact us!
