A36 W4×13 Wide Flange H Beam Steel is a hot-rolled structural steel beam manufactured according to the ASTM A36 standard. It is widely used in construction and structural engineering due to its reliable strength, excellent weldability, and cost-effective performance.
The W4×13 H Beam belongs to the American wide flange beam (W-shape) series, featuring a cross-section similar to the letter "H". This structural design provides an optimized strength-to-weight ratio and excellent bending resistance in multiple directions, making it suitable for a wide range of load-bearing applications.

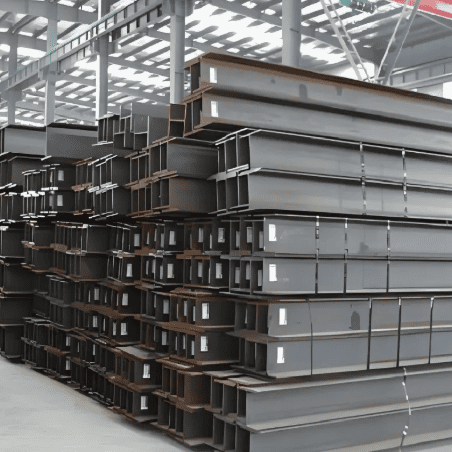

A36 W4×13 Wide Flange H Beam Steel
With a stable yield strength of minimum 250 MPa (36 ksi), ASTM A36 steel beams are commonly used in building frames, industrial structures, bridges, and machinery support systems. The W4×13 beam is especially suitable for medium-duty structural components where compact size and structural efficiency are required.
A36 W4×13 H Beam Dimensions
The W4×13 Wide Flange Beam has standardized dimensions that provide reliable structural performance.
| Property | Value |
|---|---|
| Beam Type | Wide Flange Beam |
| Material | ASTM A36 Carbon Structural Steel |
| Beam Height (H) | 5 in |
| Flange Width (W) | 3.004 in |
| Flange Thickness (T) | 0.326 in |
| Web Thickness (B) | 0.214 in |
| Weight per Foot | 13 lb/ft |
| Length | 20 ft (custom length available) |
| Weight Each | Approx. 200 lb |
Custom cutting lengths are available according to project requirements.
Chemical Composition of ASTM A36 Steel
The chemical composition of ASTM A36 carbon structural steel ensures good weldability and structural reliability.
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.26 |
| Manganese (Mn) | 0.60 – 0.90 |
| Phosphorus (P) | ≤ 0.04 |
| Sulfur (S) | ≤ 0.05 |
| Silicon (Si) | ≤ 0.40 |
This balanced composition provides a good combination of strength, ductility, and fabrication performance.
Mechanical Properties of A36 H Beam
| Property | Value |
|---|---|
| Yield Strength | ≥ 250 MPa (36 ksi) |
| Tensile Strength | 400 – 550 MPa |
| Elongation | ≥ 20% |
These mechanical properties allow A36 W4×13 beams to perform reliably in structural load-bearing applications.
Advantages of Wide Flange H Beam
Wide flange H-beams are widely used in modern construction due to their structural and economic benefits.
High Structural Strength
Compared with traditional I-beams, H-beams provide a larger section modulus, improving load-bearing performance while reducing material consumption by up to 10–15%.
Excellent Structural Stability
The symmetrical cross-section design allows the beam to resist bending forces effectively in multiple directions, providing excellent stability in structural frameworks.
Lightweight Structural Design
Steel structures using H-beams are significantly lighter than reinforced concrete structures, which reduces foundation loads and overall construction costs.
Efficient Space Utilization
Because steel columns and beams require smaller cross-sections than concrete elements, they increase the usable floor area in buildings.
Easy Fabrication and Installation
H-beams are easy to cut, weld, drill, and assemble, which simplifies construction and reduces installation time.
Recyclable and Sustainable
Steel beams can be reused and recycled, making them an environmentally friendly construction material.
Applications of A36 W4×13 Wide Flange Beam
Due to its excellent structural performance, ASTM A36 W4×13 H Beam Steel is widely used in many industries.
Typical applications include:
- Structural building frameworks
- Steel workshops and industrial plants
- Bridge construction
- Transmission towers
- Machinery support structures
- Shipbuilding structures
- Warehouse and container frames
- Lifting and transportation machinery
- Industrial furnaces and reaction towers
The beam's compact size makes it particularly suitable for secondary structural supports and medium-load structural members.
Surface Treatment Options
To meet different project requirements, several surface treatments are available:
- Oiled surface
- Sand blasting
- Galvanized coating
- Anti-corrosion painting
- Custom cutting and fabrication
Packaging and Delivery
| Item | Details |
|---|---|
| Packaging | Bundled with steel strips and waterproof plastic cloth |
| Minimum Order | 5 MT |
| Delivery Time | 10–20 days after receiving deposit or L/C |
| Trade Terms | FOB / CFR / CIF |
| Payment Terms | T/T, L/C, D/P, Western Union |
All products are packed according to international seaworthy export standards to ensure safe transportation.
Why Choose Our A36 Wide Flange H Beams
- Manufactured according to ASTM A36 standard
- Stable mechanical properties and reliable structural performance
- Complete size range and customized cutting service
- Strict quality inspection and certification
- Fast production and global export experience
Our A36 W4×13 Wide Flange H Beam Steel products are widely exported for structural engineering projects worldwide. Contact us today to get competitive pricing, technical specifications, and fast delivery for ASTM A36 Wide Flange Beams.
Contact now to get A36 H Beams Quote
What is A36 grade structural steel?
A36 is a standard structural steel grade, specifically defined by ASTM for carbon steel. It is typically available in hot-rolled form, although cold-rolled options exist for tighter tolerance needs. As a structural-grade material, it's used in everything from building frameworks and bridges to heavy equipment.
What does A36 stand for?
A36 is designated by its mechanical properties instead of its chemical properties. In the American Society for Testing Materials (ASTM) system, the A stands for ferrous metal, while the 36 refers to its minimum yield strength of 36,000 PSI.
What steel is stronger than A36?
A572 is a high-strength, low-alloy (HSLA) steel with a minimum yield strength of 50 ksi, while A36 has a minimum yield of 36 ksi. A572 contains strengthening alloys like manganese and phosphorus, making it stronger and more corrosion-resistant than A36.
What is the thickness of A36?
vailable Sizes in A36 Heavy Steel Plate
| THICKNESS | LENGTH | |
|---|---|---|
| A36 | 3/16" – 18" | Up to 480" |
