ASTM A572Gr50 Steel Beam
A572Gr50 Hot Rolled H Beam Products Description
A572Gr50 steel is suitable for a variety of cutting, bending and forming processes, and the A572Gr50 h section beam we offer can ensure processing accuracy and shape requirements.
As an ISO certified company, we produce a large number of A572Gr50 h section steel products and have a large number of international customers. We provide A572Gr50 steel h beam to customers in India and global countries and regions such as the United States, United Kingdom, Italy, Germany, Australia, etc.
The A572Gr50 h section steel beam we offer is available in a variety of sizes and can also be customized according to specific requirements. At the same time, we can also provide quality certificates for A572Gr50 h shaped iron beam and accept third-party testing.
ASTM A572Gr50 Steel Beam Products Details
| Grade | Carbon, max, % | Manganese, max, % | Silicon, max, % | Phosphorus, max, % | Sulfur, max, % |
|---|---|---|---|---|---|
| 50 | 0.23 | 1.35 | 0.40 | 0.04 | 0.05 |
| Grade | Yield point, min, ksi [MPa] | Tensile strength, min, ksi [MPa] |
|---|---|---|
| 50 | 50 [345] | 65 [450] |
| Item | Weight (kg/m) | Depth (mm) | Width (mm) | Web thickness (mm) | Flange thickness (mm) |
|---|---|---|---|---|---|
| IPN 80 | 5.9 | 80 | 42 | 3.9 | 5.9 |
| IPN 100 | 8.3 | 100 | 50 | 4.5 | 6.8 |
| IPN 120 | 11.1 | 120 | 58 | 5.1 | 7.7 |
| IPN 140 | 14.3 | 140 | 66 | 5.7 | 8.6 |
| IPN 160 | 17.9 | 160 | 74 | 6.3 | 9.5 |
| IPN 180 | 21.9 | 180 | 82 | 6.9 | 10.4 |
| IPN 200 | 26.2 | 200 | 90 | 7.5 | 11.3 |
| IPN 220 | 31.1 | 220 | 98 | 8.1 | 12.2 |
| IPN 240 | 36.2 | 240 | 106 | 8.7 | 13.1 |
| IPN 260 | 41.9 | 260 | 113 | 9.4 | 14.1 |
| IPN280 | 47.9 | 280 | 119 | 10.1 | 15.2 |
| IPN 300 | 54.2 | 300 | 125 | 10.8 | 16.2 |
| IPN320 | 61.0 | 320 | 131 | 11.5 | 17.3 |
| IPN 340 | 68.0 | 340 | 137 | 12.2 | 18.3 |
| IPN 360 | 76.1 | 360 | 143 | 13 | 19.5 |

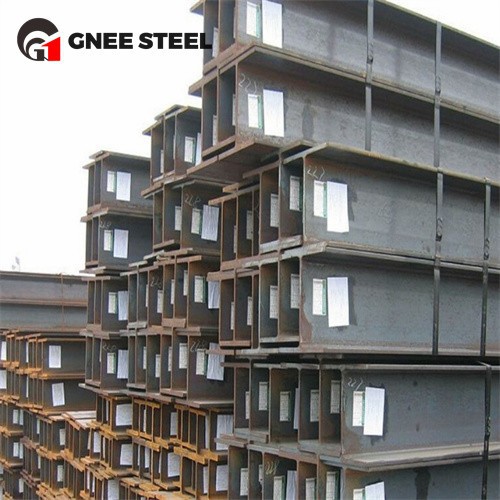

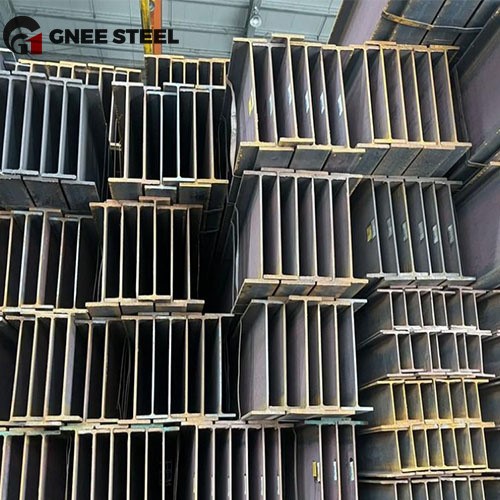

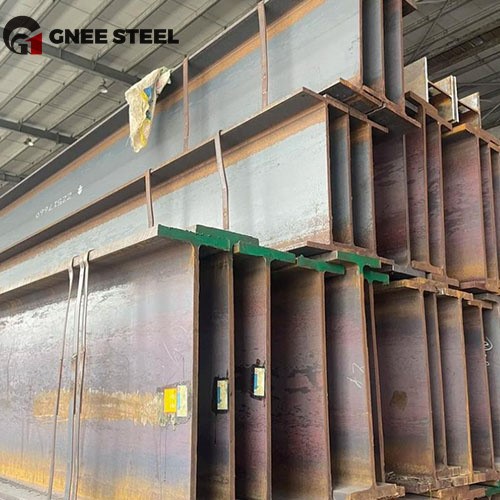

A572Gr50 H Beam Structural Steel Products Image
If you have more needs and questions about ASTM A572Gr50 steel beam, please contact us!
