S355J2 H Beam Steel



S355J2 H beam is a European standard low-alloy high-strength structural steel section manufactured in accordance with EN 10025-2. With a minimum yield strength of 355 MPa, this H-profile steel offers excellent load-bearing capacity, weldability, and structural stability for demanding engineering projects.



The key feature of S355J2 steel is its impact toughness at -20°C, which ensures reliable performance in cold climates or structures subjected to dynamic loads. This makes S355J2 H beams an ideal choice for bridges, heavy steel structures, and infrastructure projects where safety and durability are critical.



As a professional steel supplier, Gnee can provide S355J2 H profile steel beams in various sizes, customized lengths, and export-ready packaging, helping global contractors and distributors obtain high-quality structural steel efficiently.



S355J2 H Beam Steel Products Details



H BEAM TABLE
SIZE	Theoretical weight-GB(kg/m)	Theoretical weight-JIS(kg/m)	SIZE	Theoretical weight-GB(kg/m)	Theoretical weight-JIS(kg/m)
200*100*5.5*8	21.7	20.9	458*417*30*50	415	415
200*200*8*12	50.5	49.9	482*300*11*15	115	111
200*204*12*12	56.7	56.2	488*300*11*18	129	125
244*175*7*11	44.1	43.6	496*199*9*14	79.5	77.9
248*124*5*8	25.8	25.1	498*432*45*70	605	604
250*125*6*9	29.7	29	500*200*10*16	89.6	88.1
250*250*9*14	72.4	71.8	506*201*11*19	103	102
250*255*14*14	82.2	81.6	582*300*12*17	137	133
294*200*8*12	57.3	55.8	588*300*12*20	151	147
294*302*12*12	85	83.5	594*302*14*23	175	170
298*149*5.5*8	32.6	32	596*199*10*15	95.1	92.4



Mechanical Properties of S355J2 H Beam



Property	Value
Yield Strength	≥ 355 MPa
Tensile Strength	470 – 630 MPa
Impact Test	27J at -20°C
Standard	EN 10025-2
Weldability	Excellent



Available Sizes of S355J2 H Profile Steel



We supply hot-rolled H beams in a wide range of standard and customized dimensions.

Parameter	Range
Height (H)	100 – 900 mm
Flange Width (B)	100 – 300 mm
Web Thickness	5 – 16 mm
Flange Thickness	8 – 32 mm
Length	6 m / 9 m / 12 m or customized

Surface condition options include black steel finish, shot-blasted surface, or galvanized processing according to project requirements.

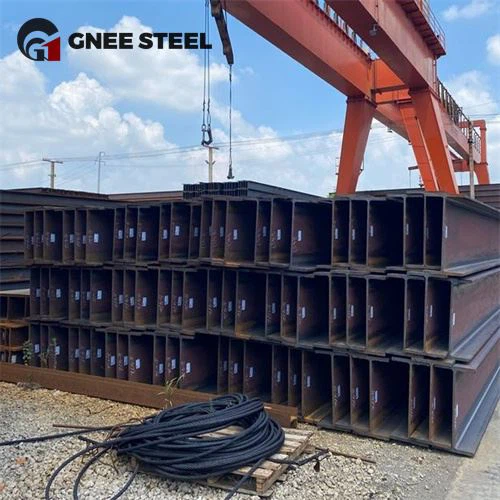

S355J2 H Beam Structural Steel Products Image



S355J2 H profile steel is widely used in structural projects that require strong load-bearing capacity and reliable performance in harsh environments.

1. Structural Frames for Steel Buildings

S355J2 H beams are commonly used as primary load-bearing columns and beams in steel structure buildings such as factories, warehouses, and commercial complexes.

Compared with ordinary structural steel, the higher yield strength of S355J2 allows engineers to reduce structural weight while maintaining strength, improving material efficiency and lowering overall construction costs.



2. Bridge Construction

In bridge engineering, S355J2 H beams are used for main girders, cross beams, and support structures.

Because the steel grade includes J2 impact testing at -20°C, it performs reliably under dynamic loads, vibration, and low-temperature environments, making it suitable for highway bridges, railway bridges, and overpasses.



3. Offshore and Marine Structures

S355J2 H profile steel is also widely used in port facilities, offshore platforms, and coastal infrastructure.

Its high strength and structural stability help ensure that the steel components can withstand wind loads, wave impacts, and long-term mechanical stress, which are common in marine environments.



4. Heavy Machinery and Equipment Frames

For large industrial machinery, cranes, and heavy equipment frames, S355J2 H beams provide strong support structures capable of handling significant loads.

The good weldability of this steel grade makes it easier for manufacturers to fabricate complex welded structures, improving production efficiency.



5. Energy and Infrastructure Projects

S355J2 H beams are frequently used in power plants, wind energy facilities, and large infrastructure projects.

Their strength and reliability ensure stable performance in structures such as:

• power plant steel frameworks
• wind turbine support structures
• transportation infrastructure
• industrial plants





Delivery Method	Description
Sea Freight (Container Shipping)	The most common shipping method for international orders. Steel products are loaded into 20ft or 40ft containers with standard seaworthy packing to ensure safe transportation during long-distance shipping.
Bulk Vessel Shipping	Suitable for large-volume steel orders, such as H beams, plates, or rails. Cargo is shipped via bulk carriers, which can significantly reduce freight costs for large projects.
FOB / CIF / CFR Terms	We support common international trade terms such as FOB, CIF, and CFR, allowing customers to choose the most convenient logistics arrangement.
Export Packaging	All products are packed with standard export seaworthy packaging, including steel strapping, protective wrapping, and reinforced bundles to prevent damage during transportation.
Export Documentation	We provide full export documents including Mill Test Certificate (MTC), Commercial Invoice, Packing List, Certificate of Origin, and other documents required for customs clearance.
Custom Logistics Support	Our team can assist with port booking, customs declaration, and international freight arrangements to ensure smooth delivery to your destination port.
Project Cargo Shipping	For large engineering projects, we can arrange break bulk shipment or project cargo logistics for oversized steel structures and long-length beams.



We offer flexible delivery options depending on the weight, size, and quantity of your order.









Contact now to get S355J2 H Beam Quote
