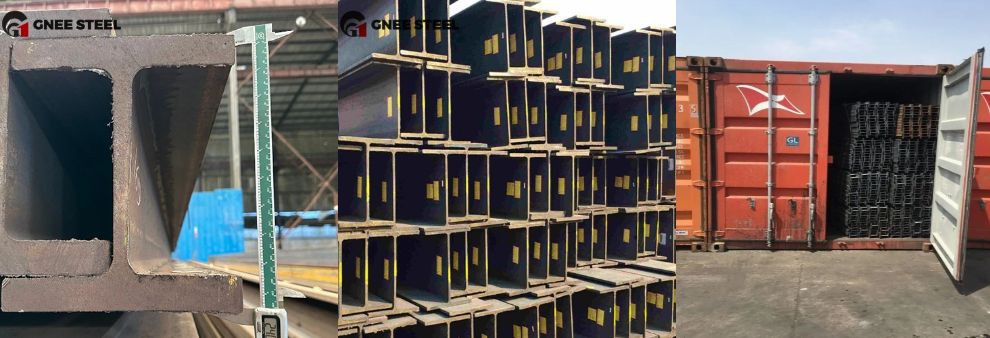

S355JR/355J0 406x140x39 h shaped steel beam
S355JR and S355J0 are structural steel grades defined according to European standard EN 10025, mainly used in buildings, bridges and other applications requiring higher strength.
Material and property comparison of S355JR/J0 h beam metal
S355JR h beam structure
Yield strength: at least 355 MPa (at room temperature)
Tensile strength: 470-630 MPa
Impact energy (20℃): at least 27 J
Mainly suitable for general structural purposes, with good comprehensive mechanical properties.
S355J0 h section beam
Yield strength: at least 355 MPa (at room temperature)
Tensile strength: 470-630 MPa
Impact energy (0℃): at least 27 J
Suitable for structural applications in low temperature environments, ensuring that the steel can still maintain good toughness at low temperatures.
Application scope of 406x140x39 steel h column
Low temperature environment
Applicable conditions: S355J0 material is particularly suitable for low temperature environment, and can still maintain at least 27J impact toughness at 0℃, while S355JR h type steel beam guarantees the same impact performance at 20℃.
Application scenarios: Such as polar research stations, cold storage buildings and other places where structural strength needs to be maintained under low temperature conditions.
High load demand environment
Applicable conditions: This type of H-shaped steel has a large cross-sectional size (height is about 406 mm, width is about 140 mm), and a weight of about 39 kg per meter, which can withstand high loads.
Application scenarios: For example, large industrial plants, heavy machinery support frames, core tube structures of high-rise buildings and other occasions with high requirements for bearing capacity.
Dynamic load environment
Applicable conditions: The good weldability and certain ductility of the S355 h shaped steel beam series of steel make it very suitable for dealing with dynamic loads.
Application scenarios: For example, the main beam or secondary beam position in bridge construction is still stable and reliable under traffic vibration or other forms of dynamic loads.
