HP10x42 & HP10x57 Steel H-Piles (Bearing Piles)
High-Performance Deep Foundation Solutions | ASTM A572 Grade 50
Unlike standard structural beams (W-Beams), HP Series H-Piles are designed specifically for deep foundation applications. Featuring equal flange and web thickness, HP10x42 and HP10x57 piles provide superior structural integrity during the rigorous driving process into soil or rock.
At GNEE STEEL, we specialize in supplying heavy-duty HP bearing piles for bridge construction, marine structures, and high-rise foundations.
Technical Specifications: HP10x42 vs. HP10x57
We supply H-Piles strictly adhering to ASTM A572 Grade 50 standards, ensuring a minimum Yield Strength of 50 ksi (345 MPa).
| Parameter | HP10x42 | HP10x57 |
| Section Depth | 9.70 in (246 mm) | 9.99 in (254 mm) |
| Flange Width | 10.075 in (256 mm) | 10.225 in (260 mm) |
| Web Thickness | 0.420 in (10.7 mm) | 0.565 in (14.4 mm) |
| Flange Thickness | 0.420 in (10.7 mm) | 0.565 in (14.4 mm) |
| Nominal Weight | 42 lb/ft (62.5 kg/m ) | 57 lb/ft (84.8 kg/m ) |
| Standard Lengths | 20', 40', 60' (Custom Cutting Available) | 20', 40', 60' (Custom Cutting Available) |
| Material Grade | ASTM A572 Gr.50 (Standard) / A992 | ASTM A572 Gr.50 (Standard) / A992 |
Note for Engineers: The uniform thickness of the HP profile allows for consistent stress distribution during driving and maximizes the surface area for friction load bearing.
HP10x42 HP10x57 Steel H-Piling Material
HP10x42 HP10x57 h-piles usually use ASTM A36 or A572-50 carbon steel, with a yield strength ≥250MPa and a tensile strength of 400-550MPa; it is benchmarked against European standard S235JR/American standard A992, and is suitable for construction and industrial load-bearing structures.
HP10x42 HP10x57 Steel H-Pile Process Characteristics
Hot rolling forming: uniform cross section, low residual stress, suitable for welding and machining.
Surface treatment: optional galvanizing or spraying process to enhance corrosion resistance.
Application of HP10x42 HP10x57 Structural Steel H-Piles
Building structure
HP10x42 h-shaped beam: suitable for medium load scenarios such as light factory beams and residential frame supports.
HP10x57 steel h-piling: Used in heavy-loaded plant columns, temporary bridge supports and other scenes that require high bending resistance.
Industrial equipment: As crane track beams, conveyor brackets, etc., HP10x57 is more popular due to its high moment of inertia.
Transportation facilities: Suitable for projects with high durability requirements such as highway noise barrier frames and railway platform roofs.
| Parameter | HP10x42 | HP10x57 |
|---|---|---|
| Section Height | 10 inches (254mm) | 10 inches (254mm) |
| Theoretical Weight | ~42 lb/ft (62.5kg/m) | ~57 lb/ft (84.8kg/m) |
| Flange Width | 200-250mm | 200-250mm |
| Moment of Inertia | 15,000-18,000cm⁴ | 20,000-25,000cm⁴ |
| Bending Resistance | Medium load capacity | High load capacity |
Key Applications (Foundation & Geotechnical)
HP10x42 and HP10x57 are the "workhorses" of the foundation industry. They are engineered for:
Deep Foundations: Creating friction or end-bearing piles for skyscrapers and heavy industrial plants where surface soil is weak.
Bridge Abutments: Supporting highway and railway bridges (high axial load capacity).
Marine Structures: Ideal for piers and dolphins due to their compact section and ability to penetrate dense soil layers.
Retaining Walls: Used as soldier piles in excavation support systems.
Value-Added Fabrication Services
Don't just buy the steel; get a Ready-to-Install solution. We offer full-service fabrication to speed up your job site operations:
Splicing: Need lengths over 60ft? We provide full-penetration butt welds or attach splicers.
Pile Points (Shoes): We can weld cast steel pile points to the tip to protect the pile when driving into bedrock.
Corrosion Protection: Coal-tar epoxy coating or Galvanizing for marine environments.
Custom Lengths: Cut exactly to your project's geotechnical requirements to minimize waste.
Why Buy H-Piles From GNEE STEEL?
Inventory: Massive stock of ASTM A572 Gr.50 ready for immediate shipment.
Quality: All material comes with Mill Test Certificates (MTC) ensuring chemical and mechanical compliance.
Logistics: We handle freight to your job site or port, including oversized loads for long piles.
Ready to Order?
Send us your pile schedule or bill of quantities. Our engineers will provide a competitive quote within 24 hours.

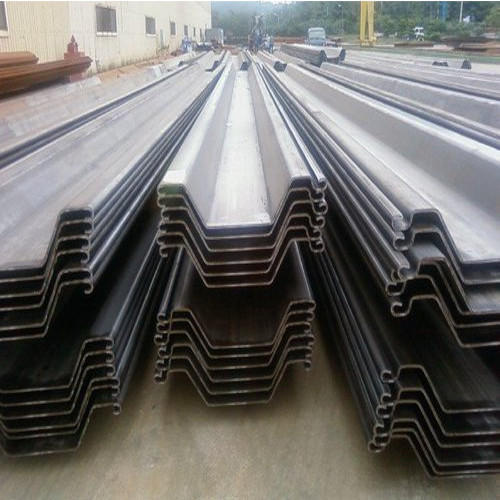

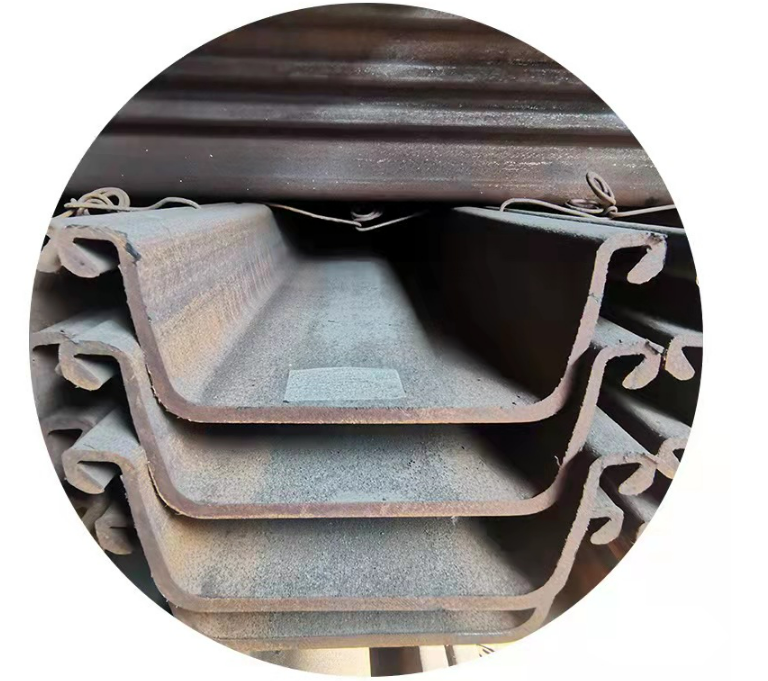

Products Parameter：
|
item |
High Strength Steel Sheet Pile |
|
Material Grade |
SYW295/SYW390/SY295/SY390/Q295BZ/Q390BZ/Q420BZ |
|
Size |
1) 400*100 - 600*210MM 2)Wall Thickness:10.5-27.6MM 3) U type sheet pile |
|
Standard |
JIS A5523, JIS A5528 |
|
Usage |
flood project,construction project,bridge etc. |
|
Coating |
1) Bared |
|
Technique |
hot rolled,cold rolled |
|
Delivery |
Container, Bulk Vessel. |
|
Quality |
1) No damage, no bent |
