Gnee Steel (Tianjin) Co., Ltd. is one of the most professional w10x60 w10x68 w10x77 a36/a572gr50/a992 h shaped steel beam manufacturers and suppliers in China, also supports customized service. If you're going to buy w10x60 w10x68 w10x77 a36/a572gr50/a992 h shaped steel beam made in China, welcome to get free sample from our factory. Quality products and low price are available.

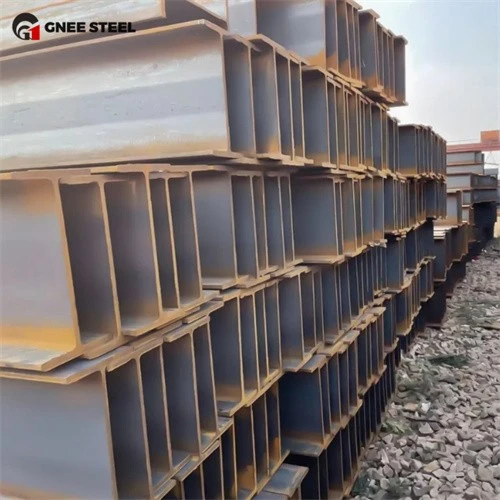

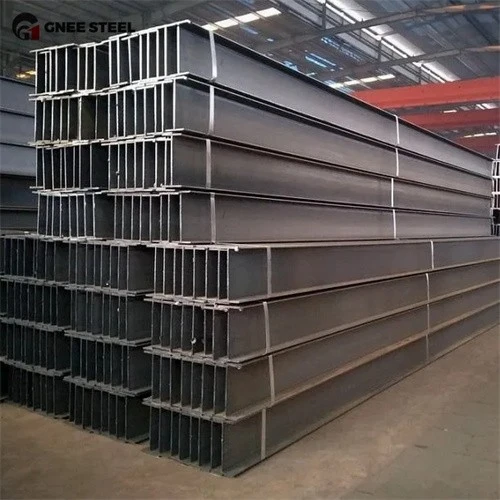

W10x60 W10x68 W10x77 A36/A572GR50/A992 H Shaped Steel Beam
| model | depth (in) | Flange width (in) | Web thickness (in) | Flange thickness (in) | Cross-sectional area (in²) | Weight per foot (lb/ft) |
|---|---|---|---|---|---|---|
| W10x60 | 10.22 | 10.08 | 0.420 | 0.680 | 17.6 | 60 |
| W10x68 | 10.40 | 10.13 | 0.470 | 0.770 | 20.0 | 68 |
| W10x77 | 10.60 | 10.19 | 0.530 | 0.870 | 22.6 | 77 |
Impact of Section Performance
Differences in size directly affect section performance, such as:
Moment of inertia I_x (bending stiffness):
W10x60: about 341 in⁴
W10x68: about 394 in⁴
W10x77: about 455 in⁴
W10x77 has the strongest bending resistance.
Section modulus S_x (bending strength):
W10x60: about 66.7 in³
W10x68: about 75.7 in³
W10x77: about 85.9 in³
The larger the S_x, the higher the bending strength of the beam.
These properties make W10x77 suitable for higher loads, while W10x60 is more suitable for medium load scenarios.
Application scenarios
W10x60 steel beam h: suitable for medium spans and loads, such as small and medium-sized building beams.
W10x68 h-shaped steel beam: suitable for industrial structures that require higher load-bearing capacity.
W10x77 h-type beam: suitable for heavy-load scenarios, such as bridges or main load-bearing members of large frames.
