Products Description

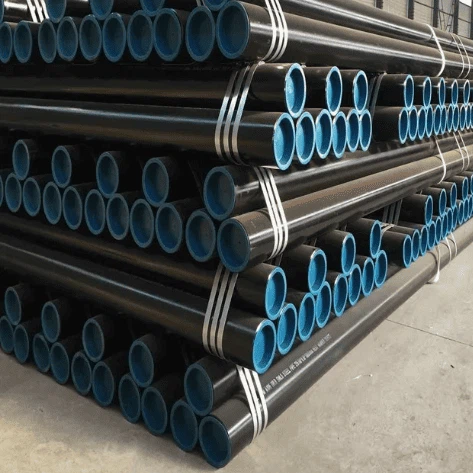

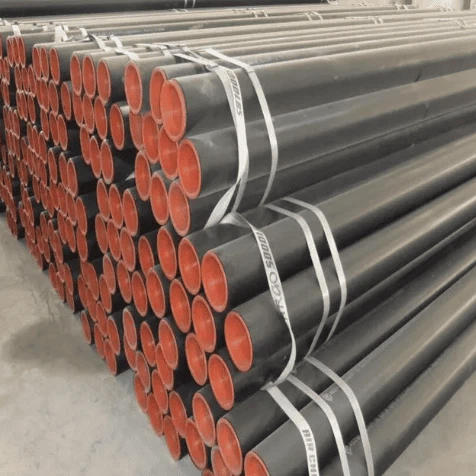

ASTM A335 P91 Alloy Steel Seamless Pipes, commonly designated by their UNS number K91560 Pipe, represent a highly sophisticated grade of P91 Ferritic alloy steel.
This material, often sought after as Alloy Steel P91 Pipes, is engineered as a modified 9% Chromium, 1% Molybdenum steel, further enhanced by precisely controlled additions of Vanadium, Niobium, and Nitrogen.
The specific P91 material composition and subsequent heat treatment are paramount to achieving its renowned high-temperature performance. Often referred to as Chrome moly P91 pipe, Grade P91 develops a fine, tempered martensitic microstructure through a carefully executed normalizing and tempering process.
This specialized microstructure, directly resulting from its unique P91 chemical composition, provides exceptional high-temperature strength, superior long-term creep resistance, and enhanced fatigue life when compared to conventional chromium-molybdenum steels. The seamless construction of these pipes ensures maximum structural integrity, which is critical for their intended service in demanding conditions.
The ASTM A335 Grade P91 standard, and its ASME equivalent ASME SA335 P91 Pipe, outlines the requirements for these High-temperature steel pipe products, which are primarily used in power generation and petrochemical industries. A key distinction within this grade is the existence of two types:
ASTM A335 P91 Type 1
ASTM A335 P91 Type 1 was the original formulation of this advanced 9Cr-1Mo-VNb steel. It laid the groundwork for the exceptional creep strength and high-temperature performance associated with the P91 grade. While still covered under the UNS K91560 designation, Type 1 established the foundational chemistry and property targets. However, advancements in steelmaking practices and a deeper understanding of the micro-alloying effects led to further refinements.
ASTM A335 P91 Type 2
ASTM A335 P91 Type 2 is the more contemporary and predominantly specified version of this grade in modern applications. It builds upon the foundation of Type 1 with often more stringent controls over the p91 material composition (particularly the balance of micro-alloying elements like Vanadium, Niobium, and Nitrogen, as well as certain residual elements) and potentially more refined processing and heat treatment parameters.
These optimizations in P91 Type 2 are aimed at achieving even more consistent and superior creep rupture strength and toughness, making it the preferred choice for new constructions in ultra-supercritical (USC) power plants and other critical high-temperature, high-pressure services.
Unless a specific project dictates Type 1, references to "P91" or Alloy Steel P91 Pipes in new applications typically imply P91 Type 2.
The primary advantage of ASTM A335 P91 Alloy Steel Seamless Pipes, particularly Type 2, lies in their capacity to operate reliably and efficiently at significantly higher temperatures and pressures.
This capability is indispensable for enhancing the thermal efficiency, reducing emissions, and ensuring the operational integrity of advanced thermal power plants, especially in components like main steam lines and critical sections of USC boilers.
Specifications
| Specification Attribute | Details for ASTM A335 P91 Pipes |
|---|---|
| Primary Standard | ASTM A335 / ASME SA335 |
| Grade | P91 (Type 1 and Type 2, with Type 2 being predominantly used) |
| UNS Designation | UNS K91560 Pipe (Covers both Type 1 and Type 2) |
| Material Type | P91 Ferritic Alloy Steel (Creep Strength Enhanced Ferritic - CSEF) |
| Manufacturing Process | Seamless (Hot Finished or Cold Drawn). Seamless alloy steel pipe P91 construction is mandatory for this grade under A335. |
| Outer Diameter (OD) | NPS 1/2" to NPS 24" (21.3mm to 610mm). Larger diameters may be available as custom orders. |
| Wall Thickness (WT) | Schedule 20 through Schedule XXS, and heavier walls as required by design pressure. Common schedules include SCH 40, 80, 120, 160. |
| Length | Single Random Length (SRL), Double Random Length (DRL), and Custom Cut Lengths up to specified maximums (e.g., 12-14 meters). |
| End Connections | Plain End (PE), Bevelled End (BE) as per ASME B16.25 for welding. |
| Testing & Certification | Includes hydrostatic testing, non-destructive examination (NDE), tensile tests, hardness tests. Mill Test Certificate (MTC) to EN 10204 3.1 or 3.2 provided, detailing the p91 chemical composition and confirming grade type if specified. |
Chemical Composition
| Alloy Steel P91 | C (Carbon) | Cr (Chromium) | Mn (Manganese) | Mo (Molybdenum) | P (Phosphorus) | S (Sulfur) | Si (Silicon) | V (Vanadium) | Nb (Niobium) | N (Nitrogen) | Al (Aluminum) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Content (wt %) | 0.08 - 0.12 | 8.00 - 9.50 | 0.30 - 0.60 | 0.85 - 1.05 | 0.020 max | 0.010 max | 0.20 - 0.50 | 0.18 - 0.25 | 0.06 - 0.10 | 0.030 - 0.070 | 0.02 max* |
Mechanical Properties
| Property | Value |
|---|---|
| Tensile Strength | 85,000 psi (585 MPa) minimum |
| Yield Strength (0.2% offset) | 60,000 psi (415 MPa) minimum |
| Elongation in 2 inches (50 mm) | 20% minimum |
| Hardness | 250 HBW / 25 HRC (maximum) |
Applications of ASTM A335 P91 Pipes
The exceptional high-temperature capabilities of ASTM A335 P91 Pipes, derived from its specialized p91 material composition (especially Type 2), make them the material of choice for the most demanding sections of modern thermal power plants and other high-temperature process industries:
Main Steam Piping: Carrying superheated steam from the boiler to the turbine in ultra-supercritical (USC) and advanced ultra-supercritical (A-USC) coal-fired power plants.
Hot Reheat Piping: Transporting reheated steam back to the turbine.
Headers & Manifolds: Distributing high-pressure, high-temperature steam.
P91 Boiler Pipe: For critical boiler components like superheater and reheater outlet sections.
Heat Recovery Steam Generators (HRSGs): In high-efficiency combined cycle power plants.
Petrochemical & Refining: High-temperature process piping where conditions exceed the capabilities of lower alloy steels like P22.
Other High-Temperature Industrial Processes: Applications requiring robust High-temperature steel pipe with excellent creep resistance.
The use of ASTM A335 P91 Alloy Steel Seamless Pipes enables power plants to operate at higher temperatures and pressures, leading to increased thermal efficiency and reduced emissions.
