I-beam IPE S235JR

I-beam IPE S235JR

Product:I Beam S235JR Carbon Steel
Technique:Hot Rolled
Standard:ASTM JIS GB EN DIN
Tolerance:±1%
Send Inquiry
Description
Technical Parameters

I-beam IPE S235JR



Carbon I-Beam S235JR Products Description



GNEE is a S235JR steel beam supplier with 16 years of production experience. The S235JR i universal beam we provide is strictly produced in accordance with the standards, has passed the quality certification, can provide quality certificates, and accept third-party testing.



The S235JR steel I-beam we provide can provide size customization, cutting, welding, punching and other processing services according to your final use requirements for S235JR structural steel i section products.



I-beam IPE S235JR Products Details



Identification Nominal weight 1m Nominal dimensions Cross-section Dimensions for detailing Surface
  kg/m mm A h1 d Ø pmin pmax AL AG
    b h t1 t2 R1 cm2 mm mm   mm mm m2/m m2/m
IPE 80 6,0 46 80 3,8 5,2 5,0 7,64 69,6 59,6 - - - 0,328 54,64
IPE 100 8,1 55 100 4,1 5,7 7,0 10,30 88,6 74,6 - - - 0,400 49,33
IPE 120 10,4 64 120 4,4 6,3 7,0 13,20 107,4 93,4 - - - 0,475 45,82
IPE 140 12,9 73 140 4,7 6,9 7,0 16,40 126,2 112,2 - - - 0,551 42,70
IPE 160 15,8 82 160 5,0 7,4 9,0 20,10 145,2 127,2 - - - 0,623 39,47
IPE 180 18,8 91 180 5,3 8,0 9,0 23,90 164,0 146,0 M10 48 48 0,698 37,13
IPE 200 22,4 100 200 5,6 8,5 12,0 28,50 183,0 159,0 M10 54 58 0,768 34,36
IPE 220 26,2 110 220 5,9 9,2 12,0 33,40 201,6 177,6 M12 60 62 0,848 32,36
IPE 240 30,7 120 240 6,2 9,8 15,0 39,10 220,4 190,4 M12 66 68 0,922 30,02
IPE 270 36,1 135 270 6,6 10,2 15,0 45,90 249,6 219,6 M16 72 72 1,041 28,86
IPE 300 42,2 150 300 7,1 10,7 15,0 53,80 278,6 248,6 M16 72 86 1,160 27,46
IPE 330 49,1 160 330 7,5 11,5 18,0 62,60 307,0 271,0 M16 78 96 1,254 25,52
IPE 360 57,1 170 360 8,0 12,7 18,0 72,70 334,6 298,6 M22 88 88 1,353 23,70
IPE 400 66,3 180 400 8,6 13,5 21,0 84,50 373,0 331,0 M22 96 98 1,467 22,12
IPE 450 77,6 190 450 9,4 14,6 21,0 98,82 420,8 378,8 M24 100 102 1,605 20,69
IPE 500 90,7 200 500 10,2 16,0 21,0 115,50 468,0 426,0 M24 102 112 1,744 19,23
IPE 550 106,0 210 550 11,1 17,2 24,0 134,40 515,6 467,6 M24 110 122 1,877 17,78
IPE 600 122,0 220 600 12,0 19,0 24,0 156,00 562,0 514,0 M27

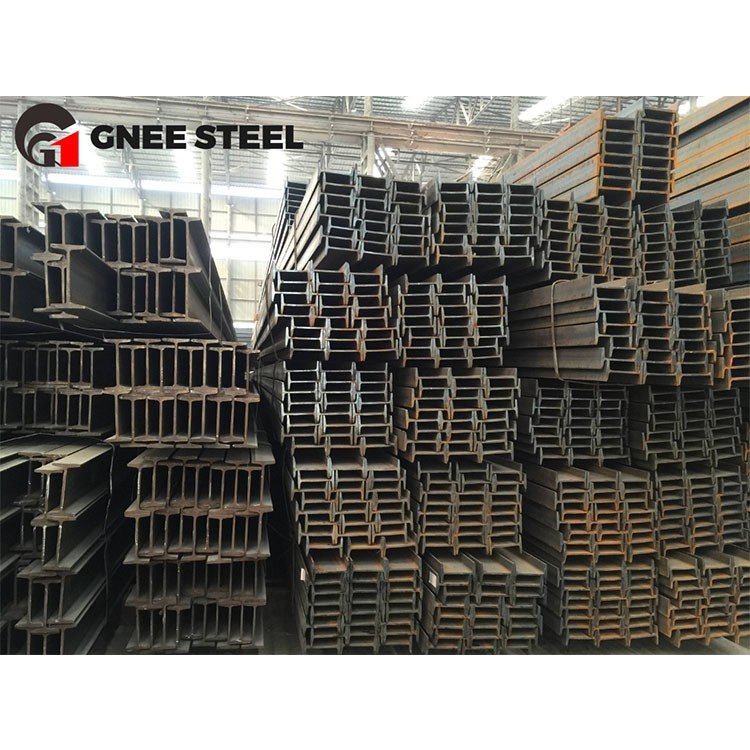

I Beam S235JR Carbon Steel Products Image



universal beam





FAQ

Q: What is S235JR i shaped steel beam equivalent material?

A: S235JR equivalent steel grades are IS 2062 Gr B, A36, SS400, ST37-2, Q235B, A283C, SM400A, FE360B, E24-2, etc.

Q: What is the difference between S235JR universal beam and S275JR i beam bar?

A: Compared with S235JR steel materials, Grade S275JR steel has a higher yield strength, reaching 275MPa. The tensile strength and elongation of S275JR are relatively higher, which can better meet the requirements of high strength, high rigidity, and high stability.

Q: What is your delivery time?

A: For stocks, we could transport the goods to loading port within 3 days after we received your deposit
For production period, it usually takes about 7-15 days after receiving the deposit.

Q: Can you provide sample ?

A: We can provide the small samples in stock for free, as long as you contact us.

Q: What is your terms of payment?

A: 30% T/T as the upfront deposit, 70% before delivery. We will show you the photos of products and package before you pay the balance.



If you have more needs and questions about I-beam IPE S235JR, please contact us!
