13CrMo4-5 boilers and pressure vessel plate
Pressure Vessel Quality Steel Product Description
13CrMo4-5 pressure vessel plate is a steel plate for pressure vessels that belongs to the European standard. 13CrMo4-5 steel boiler plate implements the standard: EN10082 standard.
13CrMo4-5 pvq plate has the following advantages and properties:
1. Good high temperature resistance: 13CrMo4-5 vessel steel plate can maintain good strength and creep resistance in high temperature environments. It can operate safely for a long time within the operating temperature range.
2. Good corrosion resistance: 13CrMo4-5 boiler steel has good corrosion resistance, especially for oxidizing media under high temperature and high pressure conditions.
3. Good welding performance: 13CrMo4-5 pressure vessel plate material has good weldability and can be subjected to conventional welding and post-weld heat treatment.
4. Excellent mechanical properties: 13CrMo4-5 pressure vessel steel plate has good yield strength, tensile strength and impact toughness, and can withstand high pressure and impact loads.
13CrMo4-5 boiler steel plate is used in petroleum, chemical industry, power stations, boilers and other industries to make reactors, heat exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas tanks, nuclear reactor pressure shells, boiler drums, Liquefied petroleum cylinders, high-pressure water pipes for hydropower stations, turbine volutes and other equipment and components.
Boiler Plate Products Details
13CrMo4-5 PVQ Steel Plate Chemical Composition：
| C | Si | Mn | P | S | Cr | Mo |
| 0.08 – 0.18 | max 0.35 | 0.4 – 1 | max 0.025 | max 0.01 | 0.7 – 1.15 | 0.4 – 0.6 |
13CrMo4-5 Boiler Quality Plate Mechanical Properties：
| Nominal thickness (mm): | to 60 | 60 – 100 | 100 – 150 | 150 – 250 | - |
| Rm – Tensile strength (MPa) | 450-600 | 440-590 | 430-580 | 420-570 | - |
| Nominal thickness (mm): | to 16 | 16 – 60 | 60 – 100 | 100 – 150 | 150 – 250 |
| ReH – Minimum yield strength (MPa) | 290-300 | 290 | 270 | 255 | 245 |

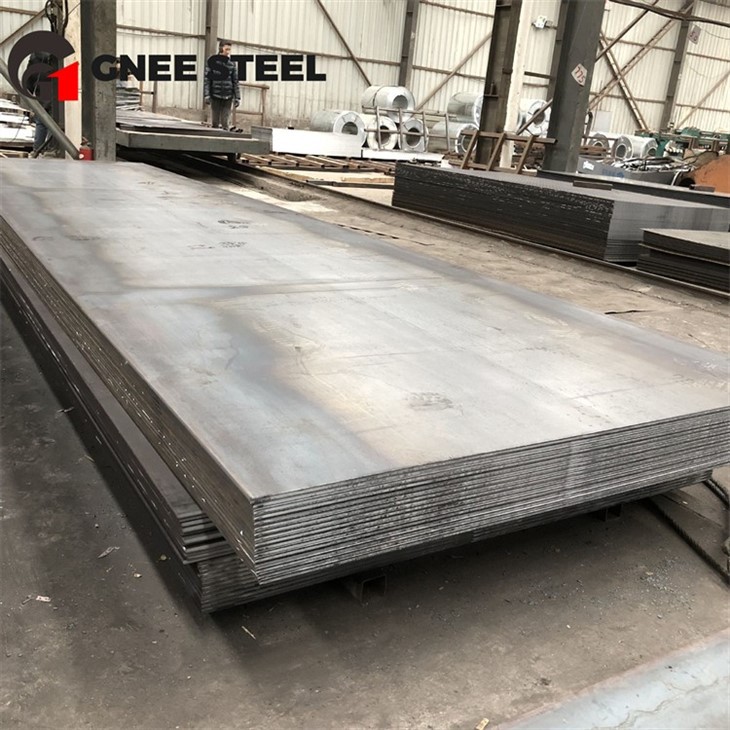

Vessel Plate Products Image
Gnee Group Introduction
With over a decade of experience, GNEE has a deep understanding of the changing steel market dynamics, allowing us to make informed decisions and provide strategic guidance to our clients.
We are committed to providing the highest quality steel products. Our strict quality control measures ensure that every product leaving the factory meets the strictest international standards.
GNEE Customer visit
If you have more needs and questions about 13CrMo4-5 boilers and pressure vessel plate products, please contact us!
