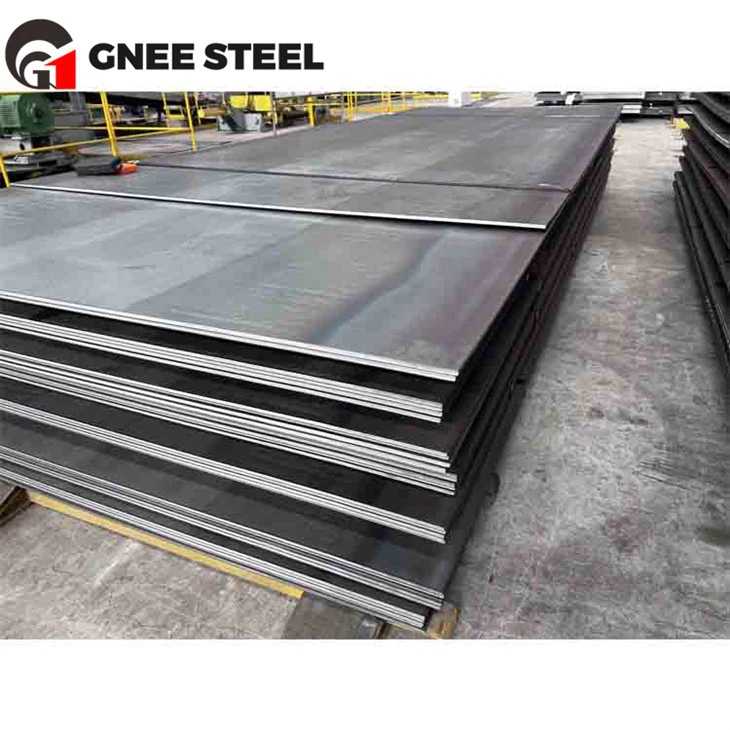

StE285 Vessel Plate





StE 285 is a weldable normalised fine grain pressure vessel steel with good properties, StE 285 boiler quality plates have a minimum yield strength of 285 Mpa and a tensile strength between 650 - 880 Mpa.



StE285 pvq plate is mainly used for welded pressure vessels with improved notch toughness.Specification of StE285 vessel plate: thickness 6mm-300mm; width: 1500-4020mm; length: 3000-27000mm.





StE285 Pressure Vessel Plate Chemical Composition:

C	Si	Mn	P	S	Cr	Cu	Mo	Ni	Nb	Ti	V
≤0.18	≤0.40	≤0.50-1.40	≤0.030	≤0.025	≤0.30	0≤.30	≤0.08	≤0.50	≤0.05	≤0.03	≤0.05



StE285 Boiler Plate Steel Mechanical properties:

Quantity	Value
Young's modulus(Mpa)	200000 - 200000
Tensile strength(Mpa)	650 - 880
Yield strength(Mpa)	350 - 550
Fatigue(Mpa)	275 - 275
Elongation(%)	8 – 25









With 16 years of experience in exporting and supplying quality products and superior service, we offer one-on-one service to each and every client and have exported our products to more than 120 countries and territories in Europe, Asia, Africa, South America and North America.













If you have more needs and questions about StE285 pressure vessel quality steel, please contact us!
