Gnee Steel (Tianjin) Co., Ltd. is one of the most professional 50*50*7 hot rolled equal iron bar manufacturers and suppliers in China, also supports customized service. If you're going to buy 50*50*7 hot rolled equal iron bar made in China, welcome to get free sample from our factory. Quality products and low price are available.
50*50*7 Hot Rolled Equal Iron Bar
50 x 50 x 7 Mild Steel Equal Angle Advantages
50×50×7 hot-rolled equal-leg angle steel is a hot-rolled steel section with a length of 50mm on both sides and a thickness of 7mm, in an L shape. 50×50×7 angle steel is processed by hot rolling process and has the general characteristics of hot-rolled steel.
Mechanical properties: It has high strength and rigidity, and can withstand large pressure, tension and bending moment. Its yield strength and tensile strength will vary depending on the material. Taking the common Q235 material as an example, the yield strength is about 235MPa and the tensile strength is about 370-500MPa.
Physical properties: It has good thermal conductivity and electrical conductivity, the thermal expansion coefficient is relatively stable, and the dimensional changes under different temperature environments are relatively predictable.
Processing performance: It has good weldability and can be firmly connected with other steels by welding; it can be cut, bent and other cold processing operations.

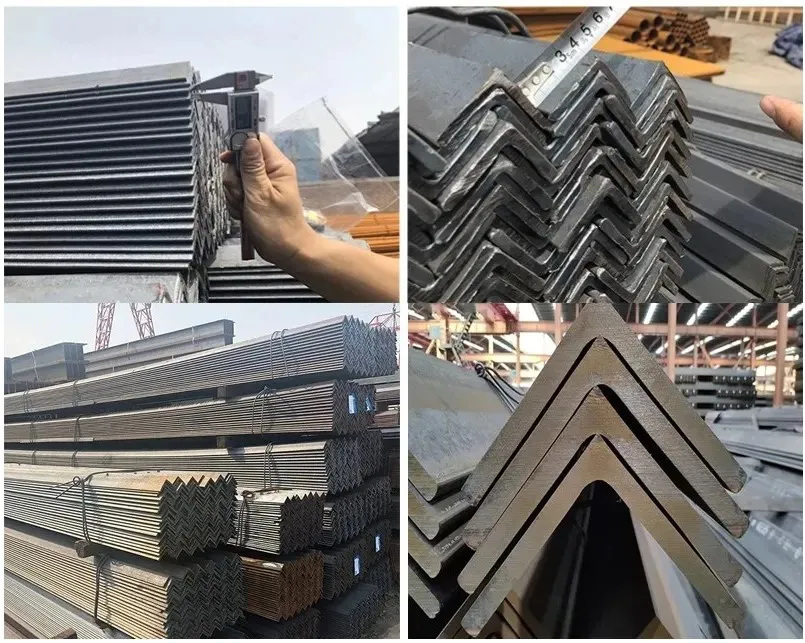

50mm x 50mm x 7mm Mild Steel Angle Iron
| Commodity | Angle iron/ Angle steel |
| Grade | Q195,Q235,Q345,ST37,ST35,SS400,A36,S235jr,S275jr, S355jr, St37-2,etc. |
| Standard | ASTM, AISI, EN, DIN, JIS, GB |
| Size | Equal angle:20x20x3mm-200x200x24mm Unequal angle:25x16x3mm-200x25x18mm |
| Length | 6m/9m/12m or as customer's request |
| Technique | Welded, Hot rolled, galvanized |
| Delivery terms | FOB, CIF, CFR etc. |
| Payment terms | T/T, L/C etc. |
| Packing detail | with bundle, as per standard seaworthy package or as customer's requirement |
| Delivery Time | Normally within 15-20 days, according to quantity |
| Product Advantages | 1. Competitive price in high quality 2.Fastest response for enquiry 3.Good reputation in this industry due to high quality & good service |
50 x 50 mm Equal MS Angles 7 mm Measurement
Dimension measurement: Use a caliper to measure the side length and thickness of the angle steel, ensuring that the side length is 50mm and the thickness is 7mm. A certain size deviation is allowed, and the general deviation range is about ±0.5mm; use a ruler or tape measure to measure the length of the angle steel, which is usually a standard length of 6m, 9m, 12m, etc., and can also be customized according to customer needs.
Angle measurement: Use an angle ruler to measure the angle of the angle steel, which should be 90°. A certain angle deviation is allowed, generally within ±1°.
Straightness measurement: Use the wire drawing method or ruler to check the straightness of the angle steel, and observe whether the angle steel is bent or twisted. The straightness deviation generally does not exceed 0.1% of the length.
GNEE Steel Angle Steel Manufacturer
GNEE is a supplier of power tower angle steel with 17 years of production experience. It has a steel company, a new energy company, a hot-rolled steel company, and a metal company. It has a total of more than 200 employees and an annual output of 4.5 million tons of various special steels and 5 million tons of various metal deep-processing products.
The products we provide are strictly produced in accordance with standards, have passed quality certification, can provide quality certificates, and accept third-party testing.
