EN S235JR Angle Steel Bar
Advantages
- High strength and toughness:
With a yield strength of 235 MPa, it is suitable for structural applications with medium loads.
Good impact toughness (JR grade), able to resist shock and vibration at room temperature.
- Good weldability:
Due to its low carbon content, S235JR is easy to weld and suitable for a variety of welding processes.
- Easy to process:
It can be easily cut, drilled, bent and formed to meet different construction needs.
- Economical:
As a non-alloy structural steel, S235JR has low cost and high cost performance.
- Wide standard compatibility:
Complies with European standard EN 10025-2, suitable for international engineering projects
Application
- Building structures:
Used to build steel structure frames, support beams, columns and trusses.
Suitable for large buildings such as industrial plants, warehouses, gymnasiums, etc.
- Bridge engineering:
Used for supporting structures, guardrails and connecting parts of bridges.
- Machinery manufacturing:
As the basic frame or supporting parts of mechanical equipment.
- Infrastructure:
Used for supporting structures of infrastructure such as power towers, communication towers, street light poles, etc.
- Ship and vehicle manufacturing:
Used for ship deck support, vehicle chassis structure, etc.
- General engineering:
Applicable to various engineering structures that require medium strength and good toughness.
Product Parameters

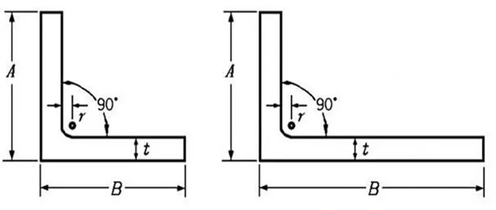

| Equal Angle |
| Specification(mm) | Theoretical weight(kg/m) | Specification(mm) | Theoretical weight(kg/m) |
| 25*25*2.5 | 0.98 | 90*90*7 | 9.59 |
| 25*25*3 | 1.12 | 90*90*8 | 10.90 |
| 30*30*2.5 | 1.17 | 90*90*9 | 9.59 |
| 30*30*3 | 1.36 | 90*90*10 | 13.30 |
| 30*30*4 | 1.78 | 100*100*6 | 9.22 |
| 30*30*5 | 2.16 | 100*100*7 | 10.70 |
| 38*38*3 | 1.72 | 100*100*8 | 12.1 |
| 38*38*4 | 2.26 | 100*100*10 | 14.90 |
| 40*40*3 | 1.83 | 100*100*12 | 17.90 |
| 40*40*4 | 2.41 | 100*100*13 | 19.10 |
| 40*40*5 | 2.92 | 110*110*7 | 11.92 |
| 40*40*6 | 3.50 | 110*110*8 | 13.47 |
| 45*45*4 | 2.74 | 110*110*10 | 16.69 |
| 45*45*5 | 3.38 | 125*125*8 | 15.51 |
| 50*50*3 | 2.33 | 125*125*10 | 19.14 |
| 50*50*4 | 3.06 | 125*125*12 | 22.70 |
| 50*50*5 | 3.77 | 130*130*9 | 17.90 |
| 50*50*6 | 4.43 | 130*130*10 | 19.70 |
| 50*50*8 | 5.82 | 130*130*12 | 23.40 |
| 55*55*5 | 4.17 |
GNEE Steel Manufacturer
GNEE Steel was established in 2008, our main products are section steel, angle steel, flat steel, wear-resistant steel, etc. We have established long-term cooperative relations with well-known steel mills and are happy to provide you with the best prices and product suggestions. You are welcome to visit our company.
