Gnee Steel (Tianjin) Co., Ltd. is one of the most professional a572 channel c steel manufacturers and suppliers in China, also supports customized service. If you're going to buy a572 channel c steel made in China, welcome to get free sample from our factory. Quality products and low price are available.
ASTM A572 is a high-strength, low-alloy (HSLA) steel alloyed with niobium and vanadium, which strengthens the steel and provides a higher yield point strength than ASTM A36. A572 channel beam is ideal for applications that require higher strength because it reduces thickness and weight. ASTM A572 channel steel is available in three grades - 42, 50 and 55.
A572 C Channel Beam Chemical composition
|
Item |
Grade |
Carbon, max, % |
Manganese, max, % |
Silicon, max, % |
Phosphorus, max, % |
Sulfur, max, % |
|
A572 channel steel beam |
42 |
0.21 |
1.35 |
0.40 |
0.04 |
0.05 |
|
50 |
0.23 |
1.35 |
0.40 |
0.04 |
0.05 |
|
|
55 |
0.25 |
1.35 |
0.40 |
0.04 |
0.05 |
A572 C Bar Steel Mechanical properties
|
Item |
Grade |
Yield point, min, ksi [MPa] |
Tensile strength, min, ksi [MPa] |
|
A572 Channel |
42 |
42 290] |
60 [415] |
|
50 |
50 [345] |
65 [450] |
|
|
55 |
55 [380] |
70 [485] |

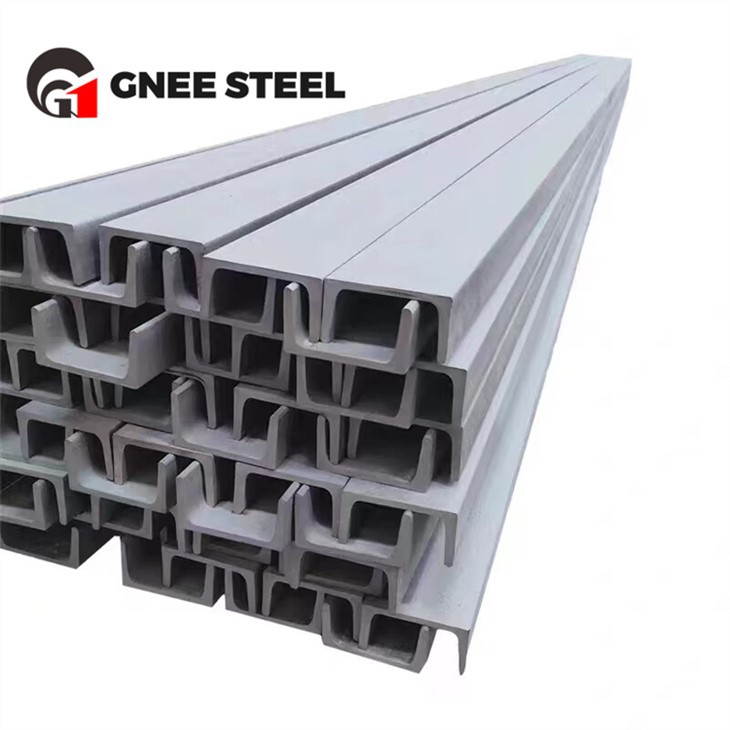

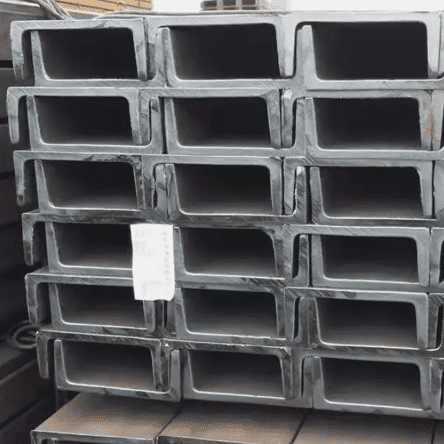

Channel Shaped Steel Product Image:
What are the uses of cold rolled steel channel?
1. Building structure: structural c channel is commonly used in the building of columns, beams, stunning bars and other load-bearing components, can withstand large gravity loads, to provide stable support for the building.
2. Bridge engineering: channel beam is widely used in the construction of bridges, used to make bridge decks, bridge towers, piers and other components, can withstand the load of vehicles and pedestrians, to ensure the safety and stability of the bridge.
3.Mechanical engineering: steel metal channel can be used to make the skeleton and support structure of various mechanical equipments, such as cranes, excavators, pressure vessels, etc., which can withstand large power loads and impact loads.
4. Mining support: structural steel channel can be used as the support material of mine roadway and shaft, used to make bracket and support system, can protect the safety of miners and equipment.
5. Photovoltaic bracket: With the popularity of solar photovoltaic power generation, channel steel beam is widely used in photovoltaic bracket system, used to support and fix the photovoltaic panels, to ensure the stability and safety of solar power generation system.
GNEE Group Team Photo:
GNEE Group Customer Visit:
Our products have undergone strict quality testing and come with professional certificates. If you have any questions about channel section beam, please feel free to inspect.
