A572GR60 High Strength Steel Channel Section
C Channel Steel Products Description
The yield strength of A572GR60 channel steel is about 60ksi (414MPa), and the tensile strength is between 70-90ksi (485-620MPa), which can withstand large loads.
A572GR60 structural channel has good toughness, can maintain integrity when subjected to impact or vibration, can prevent breakage or deformation, and ensure the safety and stability of the structure.
A572GR60 channel steel also has excellent welding performance, suitable for manual welding, automatic welding and other welding processes, with high weld quality, which is convenient for engineering structure connection and assembly.
Engineering application fields of A572GR60 c bar steel
Transportation: Key components of transportation vehicles such as heavy-duty trucks, ships, and railway vehicles are often made of A572GR60 channel steel.
Pressure vessel: A572GR60 structural steel channel is used to manufacture pressure vessels in the petroleum, chemical and other industries to ensure the safety and reliability of the vessels.
A572GR60 high strength steel channel section Products Details
| Item | Depth (mm) | Flange width (mm) | Web thickness (mm) | Flange thickness (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| UPE80 | 80 | 40 | 4.5 | 7.4 | 7.05 |
| UPE100 | 100 | 46 | 4.5 | 7.6 | 8.59 |
| UPE120 | 120 | 52 | 4.8 | 7.8 | 10.4 |
| UPE140 | 140 | 58 | 4.9 | 8.1 | 12.3 |
| UPE160 | 160 | 64 | 5 | 8.4 | 14.2 |
| UPE180 | 180 | 70 | 5.1 | 8.7 | 16.3 |
| UPE200 | 200 | 76 | 5.2 | 9 | 18.4 |

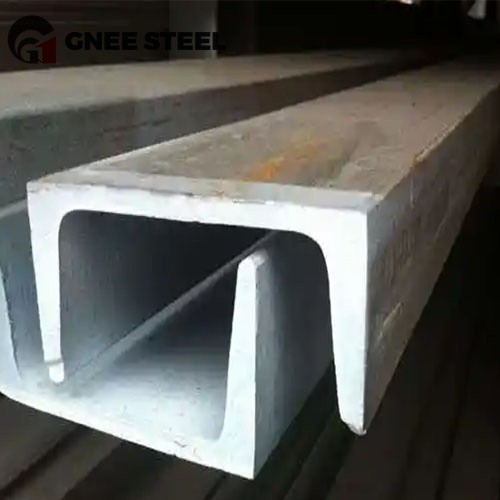

Steel Channel Products Imag
If you have more needs and questions about A572GR60 high strength steel channel section, please contact us!
