ASTM A572 High Strength Steel Channel Section

ASTM A572 High Strength Steel Channel Section

A572 c channel beam has high strength characteristics, high tensile strength and yield strength, and can withstand large external forces without deformation or fracture.

A572 c channel steel also has excellent toughness, which enables it to maintain good deformation resistance when subjected to external impact.

‌Engineering application of A572 hot-rolled channel steel‌
‌Construction field‌: A572 structural channel is often used to manufacture structural parts such as support columns, stairs, railings, floor slabs and frame beams of high-rise buildings, which can ensure the safety and stability of building structures‌.

‌Bridge engineering‌: In the field of bridges, A572 channel beam is mainly used to manufacture key components such as steel frames, main beams, cross beams, support beams and main cables of suspension bridges, which can improve the bearing capacity and safety of bridges.

ASTM A572 High Strength Steel Channel Section Products Details





A572 c channel steel chemical composition (heat analysis)

Item	Grade	Carbon, max, %	Manganese, max, %	Silicon, max, %	Phosphorus, max, %	Sulfur, max, %
A572 steel angle	42	0.21	1.35	0.40	0.04	0.05
	50	0.23	1.35	0.40	0.04	0.05
	55	0.25	1.35	0.40	0.04	0.05



A572 channel c steel mechanical properties

Item	Grade	Yield point, min, ksi [MPa]	Tensile strength, min, ksi [MPa]
A572 steel angle	42	42 290]	60 [415]
	50	50 [345]	65 [450]
	55	55 [380]	70 [485]

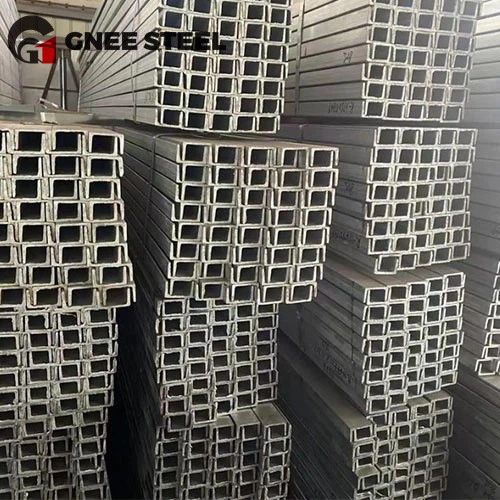

C-Shaped Channel Beam Products Imag



FAQ

Q: What is A36 A572 50 channel?

A: A-36/A572-50's yield strength is increased to 50,000 psi (higher than that of a normal A-36). Because of this, A-36/A572-50 is often used in structural applications that require higher strength than standard A-36. A-36/A572-50 can also be galvanized to provide increased corrosion resistance.

Q: What is A572 steel channel?

A:ASTM A572 is a high-strength low-alloy (HSLA) steel with alloy content of columbium and vanadium, which strengthens the steel and provides higher yield point strength than ASTM A36. A572 HSLA steel channel is ideal for the applications where needs higher strength for it reduces the thickness and weight.

If you have more needs and questions about ASTM A572 high strength steel channel section, please contact us!
