JIS Channel Bar
C Channel Beam Product Description
Japanese standard channel steel is a steel channel section manufactured according to Japanese standards, also known as JIS c bar steel.
The cross-section shape of JIS structural steel channel is groove-shaped, usually composed of a longitudinal waist plate and two parallel wing plates. JIS structural c channel is divided into multiple models according to different sizes and specifications, such as SS400 in JIS G3192-2008 c shaped steel, SS490 type c section steel beams, etc.
JIS c section channel has the following characteristics and uses
1. Diversity: JIS c channel steel beam is available in a variety of models and specifications, suitable for different engineering and construction needs.
2. High strength: JIS c section metal beams undergo strict manufacturing and quality control and have high strength and stability.
3. Convenient construction: JIS channel steel beam has standardized size specifications, is easy to cut, connect and install, and is suitable for various construction and engineering projects.
4. Widely used: JIS metal c section is often used to make steel structures, bridges, support frames, industrial equipment, etc. It can also be used to make light steel structure houses and build temporary buildings.
GNEE can provide you with commonly used JIS c channel grades, such as: SM400 SM490 SS330 SS400 SS490 SS540, etc. We can also provide customization and processing services according to your needs.
C Channel Bar Products Details
JIS Standard Channel:
| Dimensions (mm) | Unit Weight (kg/m) | Dimensions (mm) | Unit Weight (kg/m) |
| 50X25X(3.0-5.0)X6.0 | 2.37-3.46 | 125X65X5.5X8.0 | 12.91 |
| 75X40X3.8X7.0 | 5.30 | 125X65X6.0X8.0 | 13.40 |
| 75X40X4.0X7.0 | 5.60 | 150X75X5.5X7.3 | 14.66 |
| 75X40X4.5X7.0 | 5.85 | 150X75X5.7X10.0 | 16.71 |
| 75X40X5.0X7.0 | 6.92 | 150X75X6.0X10.0 | 17.90 |
| 100X50X3.8X6.0 | 7.30 | 150X75X6.5X10.0 | 18.60 |
| 100X50X4.2X6.0 | 8.03 | 150X75X9X12.50 | 24.0 |
| 100X50X4.5X7.5 | 8.97 | 200X80X7.5X11.0 | 24.6 |
| 100X50X5.0X7.5 | 9.36 | 200X90X8.0X13.5 | 30.3 |
| 125X65X5.2X6.8 | 11.66 | 250X90X9.0X13.0 | 34.6 |
| 125X65X5.3X6.8 | 12.17 | 300X90X9.0X13.0 | 38.1 |

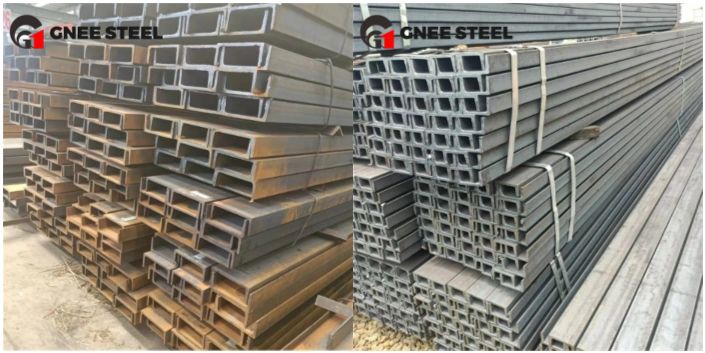

Structural Channel Products Image
Gnee Group Introduction
GNEE ensures the quality of its products with its strong financial strength, advanced management experience and strict incoming material quality control system.
We are famous throughout the country for our excellent products and good reputation, and have won the trust and support of major steel mills and customers.
GNEE Customer visit
If you have more needs and questions about JIS channel bar products, please contact us!
