UPE Parallel Flange Channels

Hot Rolled Taper Flange Channel Products Description

UPE parallel flange channel is a kind of European standard channel steel with high strength and excellent mechanical properties, widely used in construction and industrial fields.

UPE steel channel section has high yield strength and tensile strength, can withstand large loads, has good corrosion resistance and long service life.

UPE structural channel is often used in bridges, ships, lifting and transportation machinery, equipment foundations, brackets, foundation piles and other occasions that need to withstand large loads and impacts.

UPE Parallel Flange Channels Products Details

Identification	Nominal dimensions					Dimensions for detailing					Cross-section	Nominal weight 1m	Surface
	h	b	s	t	R	h1	d	Ø	emin	emax	A	G	AL	AG
	mm	mm	mm	mm	mm	mm	mm		mm	mm	cm2	kg/m	m2/m	m2/m
UPE 80	80	50	4,0	7,0	10	66	46	-	-		10,1	7,90	0,343	43,45
UPE 100	100	55	4,5	7,5	10	85	65	M12	35	36	12,5	9,82	0,402	41,00
UPE 120	120	60	5,0	8,0	12	104	80	M12	35	41	15,4	12,1	0,460	37,98
UPE 140	140	65	5,0	9,0	12	122	98	M16	35	38	18,4	14,5	0,520	35,95
UPE 160	160	70	5,5	9,5	12	141	117	M16	36	43	21,7	17,0	0,579	34,01
UPE 180	180	75	5,5	10,5	12	159	135	M16	36	48	25,1	19,7	0,639	32,40
UPE 200	200	80	6,0	11,0	13	178	152	M20	46	47	29,0	22,8	0,697	30,60
UPE 220	220	85	6,5	12,0	13	196	170	M22	47	49	33,9	26,6	0,756	28,43
UPE 240	240	90	7,0	12,5	15	215	185	M24	47	51	38,5	30,2	0,813	26,89
UPE 270	270	95	7,5	13,5	15	243	213	M27	48	50	44,8	35,2	0,892	25,34
UPE 300	300	100	9,5	15,0	15	270	240	M27	50	55	56,6	44,4	0,968	21,78
UPE 330	330	105	11,0	16,0	18	298	262	M27	54	60	67,8	53,2	1,043	19,60
UPE 360	360	110	12,0	17,0	18	326	290	M27	55	65	77,9	61,2	1,121	18,32
UPE 400	400	115	13,5	18,0	18	364	328	M27	57	70	91,9	72,2	1,218	16,87

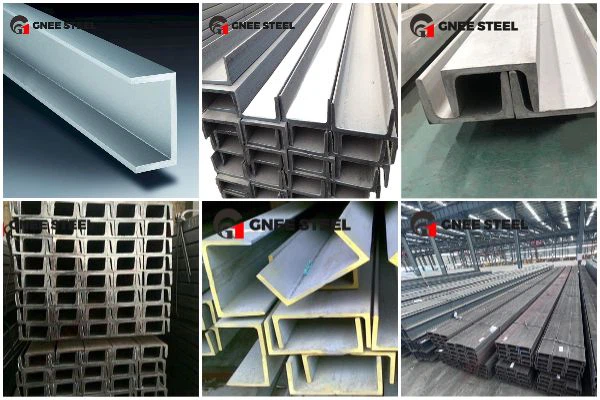

Flange Channel Products Image

FAQ

Q: What is the upe channel?

A: UPE is the short form for channel sections with parallel flanges according to EN 10365 with tolerances according to EN 10279: 2000. The UPE series with parallel flanges is now also available in stainless steel and is a very interesting alternative to the UPN series.

Q: What is the difference between UPE and UPN channels?

A:The key difference in shape between the two channels is that UPN have tapered flangers, of which the width decreases towards the edges, whereas UPE channels have parallel flanges with a constant width. Additionally, UPE channels have a deeper profile and thicker flanges.

Q:What is parallel flange channel?

A: Also referred to as C sections for their shape, parallel flange channels (PFC) are general-purpose hot-rolled structural steel channels used in various structural and load-bearing applications, such as floor beams, portal frames, columns, and trailer frames.

If you have more needs and questions about upe parallel flange channel, please contact us!
