NFA35-502 E 36 WB 3 Corten Metal Sheet

NFA35-502 E 36 WB 3 Corten Metal Sheet

Type:Corrosion Resisting Structural Steel
Standard:ASME, ASTM, DIN, EN,JIS, GB
Composition:Steel
Technique:Hot Rolled
Send Inquiry
Description
Technical Parameters

Gnee Steel (Tianjin) Co., Ltd. is one of the most professional nfa35-502 e 36 wb 3 corten metal sheet manufacturers and suppliers in China, also supports customized service. If you're going to buy nfa35-502 e 36 wb 3 corten metal sheet made in China, welcome to get free sample from our factory. Quality products and low price are available.



NFA35-502 E 36 WB 3 corten metal sheet



Corrosion Resistant Steel Plate Products Description



E 36 WB 3 corten steel material is a weathering steel, more precisely "atmospheric corrosion resistant steel", the chemical composition of E 36 WB 3 corten steel metal improves atmospheric corrosion resistance, this is because under the influence of weather, a protective layer is formed on the surface of E 36 WB 3 steel.



E 36 WB 3 corten steel plate delivery status:
Hot rolled, cold rolled, normalized, quenched, tempered, thermomechanical controlled process (TMCP), electroslag remelting technology, HIC test.



E 36 WB 3 corten steel sheet application range:
E 36 WB 3 corten weathering steel is used for various types of welded, bolted and riveted structures, such as steel frame structures, bridges, tanks and containers, exhaust systems, vehicle and equipment construction, etc.



NFA35-502 E 36 WB 3 Corten Metal Sheet Products Details



E 36 WB 3 steel chemical composition(%):

C Si Mn P S Cr N Cu CEV
max 0.16 Max 0.5 0.5 - 1.5 max 0.035 Max 0.035 0.4 -0.8 max 0.009 0.25-0.55 Max 0.52

Note:
1. The steels may show a Ni content of max 0.65 %;
2. For long E 36 WB 3 steel, the P and S content can be 0.005% higher;
3. The E 36 WB 3 steel may contain max. 0.30 % Mo and max. 0.15 % Zr
4. It is permissible to exceed the specified values provided that for each increase of 0.001 % N, the P max. content will be reduced by 0.005 %; the N content of the ladle analysis, however, shall not be more than 0.012 %
5.The max. value for nitrogen does not apply if the chemical composition shows a minimum total Al content of 0.020 % or if sufficient other N binding elements are present.



E 36 WB 3 steel mechanical property:

Nominal thickness (mm) to 16 16-40 40-63 63-80 80-100 100-150
ReH - Minimum yield strength (MPa) 355 345 335 325 315 295
Nominal thickness (mm) To 3 3-100 100-150
Rm -Tensile strength (MPa) 510-680 470-630 450-600
Nominal thickness (mm) 3-40 40-63 63-100 100-150
A - Minimum elongation Lo = 5,65 √ So (%) 22 21 20 18
Nominal thickness (mm) 1.5 - 2 2-2.5 2.5-3
A - Minimum elongation Lo = Lo = 80 mm (%) 16 17 18
Temperature -20 0
Notch impact test. Min. absorbed energy 27 27

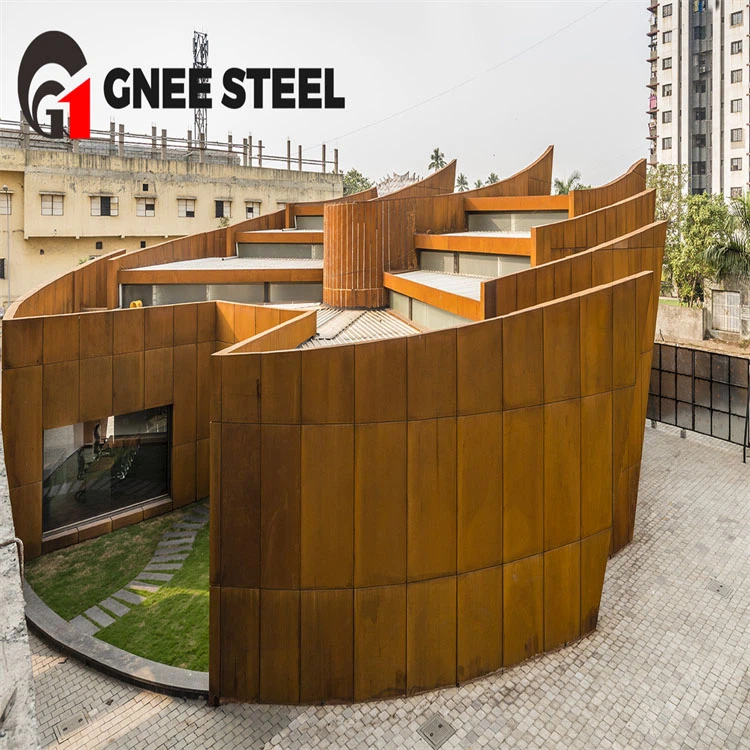

Atmospheric Corrosion Resisting Structural Steel Products Image



Atmospheric Corrosion Steel Plate



GNEE Group Team Photo



atmospheric steel



GNEE Group Exhibition Pictures



cor ten plate



GNEE Group Customer Visits



cor ten steel plate



If you have more needs and questions about NFA35-502 E 36 WB 3 corten metal sheet, please contact us!
