Hot rolled flat S235JR

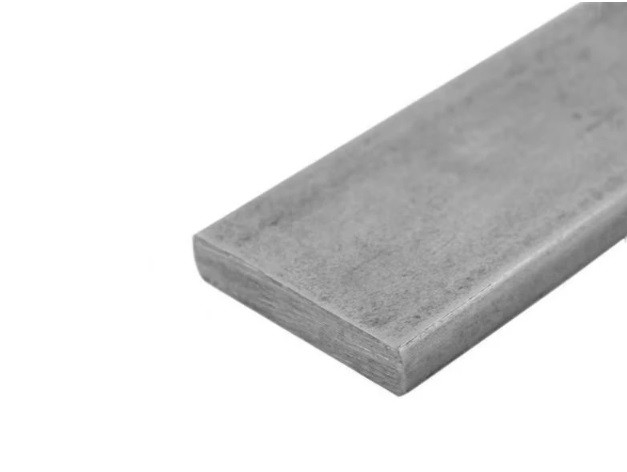

Hot Rolled Steel Flat Bar S235JR Products Description
S235JR flat steel has good plasticity, toughness, weldability, cold stamping performance, certain strength, and good cold bending performance. S235JR is a material with high strength, high wear resistance and good corrosion resistance, which can be widely used in many fields.
As an ISO certified company, we produce a large number of S235JR steel flat bar products and have a large number of international customers. We supply S235JR metal flat bar to customers in India and other countries and regions around the world such as the United States, United Kingdom, Italy, Germany, Australia, etc.
Hot Rolled Flat S235JR Products Details
Chemical Composition % of S235JR Hot Rolled Steel Flat Bar
| C max | Mn max | P max | S max | N max | Cu max | CEV max |
| 0.2 | 1.4 | 0.04 | 0.04 | 0.012 | 0.55 | 0.38 |
Mechanical Properties of S235JR Mild Steel Flat Bar
| Nominal thickness (mm): | to 3 | 3 – 100 | 100 – 150 | 150 – 250 |
| Rm - Tensile strength (MPa) Flat and long products | 360-510 | 360-510 | 350-500 | 340-490 |
| Nominal thickness (mm): | to 16 | 16–40 | 40–63 | 63–80 | 80–100 | 100–150 | 150–200 | 200–250 |
| ReH - Minimum yield strength (MPa) Flat and long products | 235 | 225 | 215 | 215 | 215 | 195 | 185 | 175 |
| KV - Impact energy (J) longitud., | -20° | 0° | +20° |
| 27 | 27 | 27 |
| Nominal thickness (mm): | to 1 | 1.5 – 2 | 2 – 2.5 | 2.5 – 3 | |
| A - Min. elongation Lo = 80 mm (%) parallel, | 17 | 18 | 19 | 20 | 21 |
| Nominal thickness (mm): | Mar-40 | 40 – 63 | 63 – 100 | 100 – 150 | 150 – 250 |
| A - Min. elongation Lo = 5,65 √ So (%) parallel, | 26 | 25 | 24 | 22 | 21 |

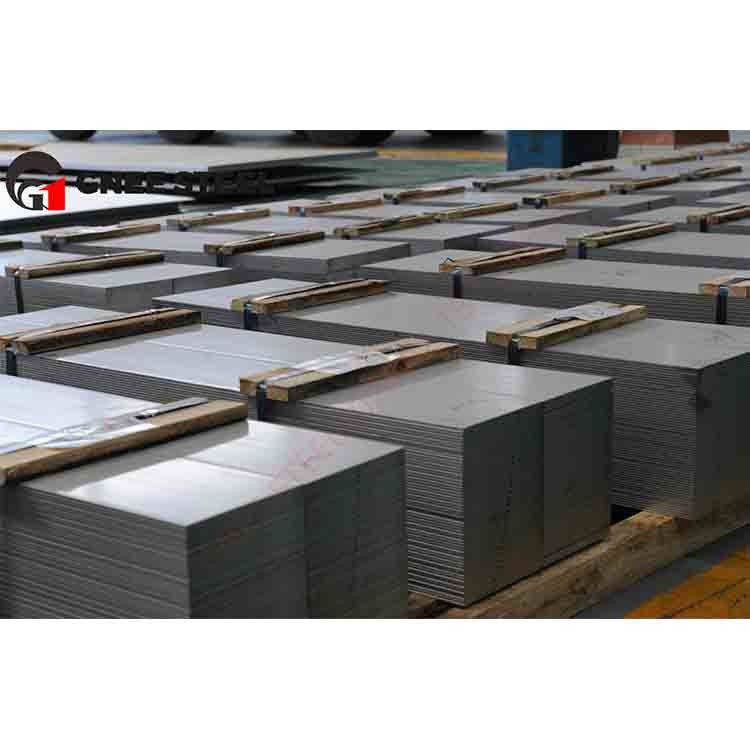

Mild Steel Flat Bar S275JR Products Image
GNEE Group Team Photo
GNEE Group Exhibition Pictures
GNEE Group Customer Visits
If you have more needs and questions about Hot rolled flat S235JR, please contact us!
