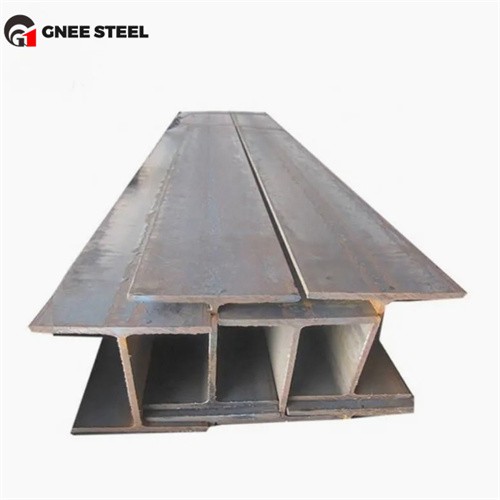

EN S355JR UB305*102*28 305*102*33 H Beam Steel Structure

Chemical composition of S355JR steel h beam: carbon (C) content ≤0.22%, silicon (Si) content ≤0.55%, manganese (Mn) content ≤1.60%, phosphorus (P) content ≤0.025%, sulfur (S) content ≤0.025%.

Mechanical properties of S355JR h section steel: It is a low-alloy high-strength structural steel with a yield strength of 355MPa, a tensile strength between 470-630MPa, an elongation of about 22%, and good impact toughness at room temperature, which can meet the corresponding standard requirements such as 27 joules.

The specific size of 305*102*28 h-shaped steel: the actual size is 308.7mm×101.8mm×6mm×8.8mm, of which 308.7mm is the height of the steel, 101.8mm is the flange width, 6mm is the web thickness, 8.8mm is the flange thickness, and the weight per meter is about 28.2 kg.

Cross-sectional shape characteristics: UB type belongs to H-shaped steel with wide waist and narrow flange, which has good performance in bending resistance and is suitable for smaller load bearing conditions.

Application field of S355JR h beam steel structure
Construction field: It can be used for structural parts of general buildings and factories, such as the construction of frame structures, which can withstand the weight of the building itself and wind loads, etc.

Machinery and equipment manufacturing: It has certain strength and good processing performance, and can be used to manufacture the frame or support structure of some mechanical equipment.

Road and bridge engineering: It can be used as some supporting components in bridge structures, etc.
Power support: a support structure that can be used in power projects to support power equipment and lines.
