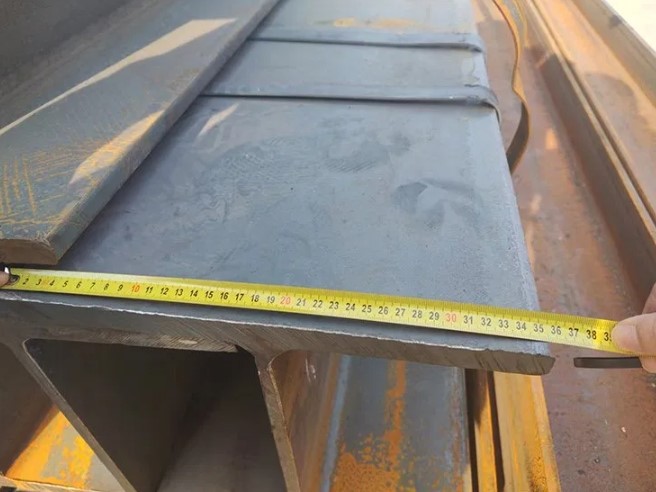

H Shaped Iron Beam W16x40 W16x45

W16x40 steel h profile cross-sectional dimensions (approximate)
Height (h): about 16.3 inches (414 mm)
Width (b): about 7.0 inches (178 mm)
Flange thickness (tf): about 0.695 inches (17.7 mm)
Web thickness (tw): about 0.435 inches (11 mm)
Meter weight: about 40 pounds/foot (about 59.8 kg/m)

W16x45 h steel profile cross-sectional dimensions (approximate)
Height (h): about 16.5 inches (419 mm)
Width (b): about 7.2 inches (183 mm)
Flange thickness (tf): about 0.755 inches (19.2 mm)
Web thickness (tw): about 0.455 inches (11.6 mm)
Meter weight: about 45 pounds/foot (about 67.2 kg/m)

W16x40 W16x45 h beam profile is usually manufactured in accordance with ASTM A6/A 6M-12 standards and can be made of different material grades such as A36, A572 Gr50, A992, etc., depending on the design requirements and usage environment.

W16x40 and W16x45 h profile steel are suitable for a variety of occasions due to their moderate size and strength, including but not limited to commercial buildings and residential frames; bridges and other infrastructure; industrial plants and warehouses; support systems and platforms.

H-beam steel in W16x40 and W16x45 sizes provides good mechanical properties, especially bending strength and rigidity, standardized design, easy access and quick installation, which helps to shorten the construction period and reduce costs.
