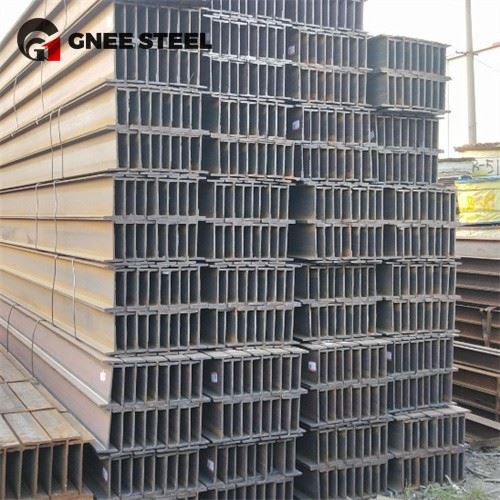

S450J0 Steel Profile H Iron Beam
S450J0 steel beams are low-alloy steels with enhanced mechanical properties, weldability and corrosion resistance, making them ideal for heavy-duty applications in construction, machinery and offshore engineering.
Mechanical properties
Tensile strength: ≥450 MPa.
Yield strength: Meets J0 grade specifications (exact value varies with cross-sectional size).
Impact resistance: Enhanced stability in low temperature environments due to alloying elements such as chromium (Cr)
Elongation: Suitable for dynamic load-bearing structures.
S450J0 H-beam standard dimensions and weights
Universal Columns (UC)
| Model | Dimensions (H×W×Thickness, mm) | Weight (kg/m) |
|---|---|---|
| UC152×152×30 | 152×152×30 | 30.0 |
| UC254×254×89 | 254×254×89 | 88.9 |
| UC305×305×118 | 305×305×118 | 117.9 |
| UC356×368×153 | 356×368×153 | 152.9 |
Universal Beams (UB)
| Model | Dimensions (H×W×Thickness, mm) | Weight (kg/m) |
|---|---|---|
| UB254×146×31 | 254×146×31 | 31.1 |
| UB305×165×54 | 305×165×54 | 54.0 |
| UB356×171×57 | 356×171×57 | 57.0 |
| UB533×210×101 | 533×210×101 | 101.0 |
Manufacturing process of S450J0 steel beams
Hot rolling: The billet is heated above the recrystallization temperature (~80% of the alloy solidus temperature), then rolled, cooled and sheared.
Post-treatment
Normalizing: Improves uniformity of microstructure.
Quenching: Improves surface NMness in high wear applications such as industrial machinery.
| Model Number |
Q235B/C/D Q345B/C/D/E Q390B/C/D/E Q420B/C/D/E Q460/C/D/E Q500/C/D/E SS400 SM490A/B SN400A/B SN490B S235JR/J0 S275JR/J0/J2 S355JR/J0/J2 S355K2 S450J0 S355M/L S460M S355J0WP/J2WP S355J0W/J2W/K2W |
| Application | Industry/Chemical Equipment |
| Welding Line Type | Welding |
| Processing Service | Bending, Punching, Cutting, Moulding |
| Length | 6000mm 9000mm 12000mm or Customized |
| Technique | Hot Rolled Cold Rolled |
| Payment terms | L/C T/T (30%DEPOSIT) |
| Process method | Standard |
