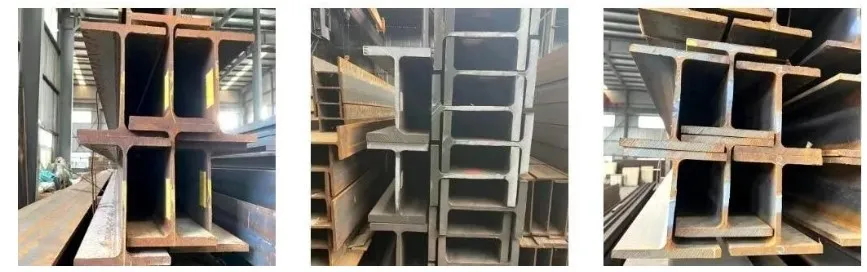

W36x441 W36x487 W36x529 w shape structural steel
W36×441, W36×487 and W36×529 wide flange beam are heavy-duty sections in the American standard H-shaped steel. The "W36" in the name means that the nominal depth of the section is about 36 inches, and the number (such as 441) represents the weight per foot (unit: pounds/foot).
Specifications of W36×441 h beam
Section height (d): about 38.94 inches
Flange width (bf): about 12.83 inches
Web thickness (tw): about 1.38 inches
Flange thickness (tf): about 2.48 inches
Sectional area: about 129.8 square inches
Moment of inertia (Ix): about 22,700 inches⁴ (horizontal axis)
Moment of inertia (Iy): about 1,110 inches⁴ (vertical axis)
Weight per meter: about 655.98 kg/m
Weight per foot: 441 pounds
W36×487 h section steel Specifications
Section height (d): about 39.37 inches
Flange width (bf): about 12.91 inches
Web thickness (tw): about 1.53 inches
Flange thickness (tf): about 2.72 inches
Sectional area: about 143.3 square inches
Moment of inertia (Ix): about 25,400 inches⁴ (horizontal axis)
Moment of inertia (Iy): about 1,300 inches⁴ (vertical axis)
Weight per meter: about 724.71 kg/m
Weight per foot: 487 pounds
W36×529 h section steel beams Specifications
Sectional height (d): about 39.76 inches
Flange width (bf): about 13.00 inches
Web thickness (tw): about 1.67 inches
Flange thickness (tf): about 2.95 inches
Sectional area: about 155.7 square inches
Moment of inertia (Ix): about 28,000 inches⁴ (horizontal axis)
Moment of inertia (Iy): about 1,490 inches⁴ (vertical axis)
Weight per meter: about 787.21 kg/m
Weight per foot: 529 pounds
Dimensional features of W36x441 W36x487 W36x529
The three have similar cross-sectional heights (about 38.9–39.8 inches). As the weight increases, the web and flange thicknesses increase significantly, and the cross-sectional area and moment of inertia also increase.
W36×529 has the highest cross-sectional stiffness (Ix and Iy), suitable for withstanding greater bending moments and shear forces.
Common lengths are 6 meters, 9 meters, 12 meters or customized.
W36x441 W36x487 W36x529 H section steel performance
Ultra-high load-bearing capacity: large cross-section and high moment of inertia enable it to withstand extremely high bending moments and shear forces, suitable for ultra-large span structures.
Strong torsional rigidity: wide flange and thick web design improve torsion resistance and local stability.
Multi-directional stability: H-section is symmetrical and has high rigidity in both horizontal and vertical directions.
Durability: The corrosion resistance and fatigue resistance of A572GR50 and A992 materials are more suitable for harsh environments.
Wide Flange H Beam Comparison
| Model/Material | advantage | shortcoming |
|---|---|---|
| W36×441 | Relatively light, suitable for medium and high loads, low cost | The carrying capacity is lower than 487 and 529, and the extreme scenarios are limited. |
| W36×487 | Higher stiffness, suitable for higher loads, balanced performance and weight | Increased cost and weight, higher requirements for transportation and installation |
| W36×529 | Strongest bearing capacity, suitable for extreme scenarios, excellent earthquake resistance | High cost, heavy weight, and requires heavy equipment support |
| A36 | Low cost, simple processing and welding | Low strength, not suitable for high load or earthquake-resistant scenarios |
| A572GR50 | High strength, fatigue resistance, good overall performance | The cost is slightly higher, and welding requires preheating control |
| A992 | Optimal strength and toughness, excellent earthquake resistance, and strict control of yield strength ratio | Highest cost and high processing requirements |
