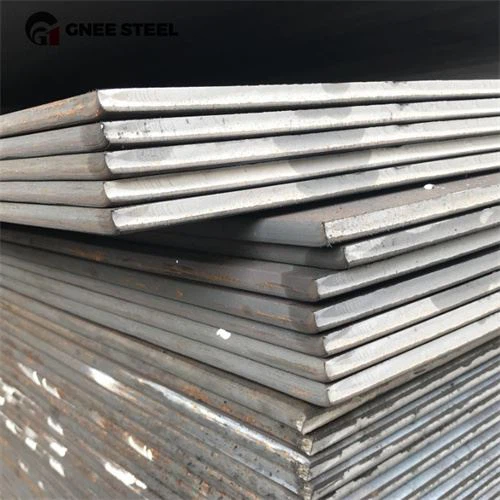

EN Standard Low Alloy Steel S355J0

‌S355J0 low alloy steel is a European standard high-strength low-alloy structural steel plate with excellent mechanical properties and a wide range of applications. ‌

‌‌Performance characteristics of S355J0 high strength sheet metal

Good toughness‌: ‌‌S355J0 high strength plate can still maintain good toughness at low temperatures, high impact toughness, and is not prone to brittle fracture, ensuring safety in harsh environments. ‌

Excellent welding performance‌: S355J0 high tensile steel plate has good welding performance, high strength and good density of welded joints, and can meet the welding requirements of various complex structural parts. ‌

Good processing performance‌: ‌‌S355J0 high strength steel plate is easy to perform various mechanical processing operations and is suitable for manufacturing various complex shaped parts. ‌





Product Name	High Strength Low Alloy Steel Plates (HSLA)
Length	1m-12m or as required
Width	1m-3m or as required
Thickness	8mm-150mm or as required
Material	ASTM:A573 Grade 70,A709 Grade 50,A514 Grade B,etc. ASME:SA573 Grade 70,SA709 Grade 50,SA514 Grade B,etc. EN:S355JR,S355J0,S355K2,S355N,S355J2,S420N,S460N, S460Q,S460QL,S500Q,S500QL,S550Q,S500QL,S690Q, S690QL,S690QL1,S890Q,S890QL,S890QL1,S960Q,S960QL,etc. DIN:ST52-3,etc. JIS:SS490,SS540,SM490,etc. GB:Q355B,Q355D,Q390B,Q390D,Q420B,Q420D, Q460D,Q460E,Q500D,Q500E,Q550D,Q550E, Q620D,Q620E,Q690D,Q690E,Q890D,Q890E,Q960D,Q960E,etc.
Export packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required





C	Mn	Si	P	S	Cu
0.17(max)	1.60(max)	0.55(max)	0.025(max)	0.025(max)	0.55(max)





Nominal thickness (mm)	to 16	16 - 40	40 - 63	63 - 80	80 - 100	100 - 150	150 - 200	200-250	250-400
ReH - Minimum yield strength (MPa)	355	345	335	325	315	295	285	275	-



Nominal thickness (mm)	-3	3-100	100-150	150-250	250-400
Rm -Tensile strength (MPa)	510-680	470-630	450-600	450-600	-



Nominal thickness (mm)	3-40	40-63	63-100	100-150	150-250	250-400
A - Minimum elongation Lo = 5,65 √ So (%)	22	21	20	18	17	-















We support multi-specification and multi-brand hot-rolled steel plate customization. If you have customized needs for EN standard low alloy steel S355J0 or hot-rolled structural steel plate products, please contact us!
