Products Description

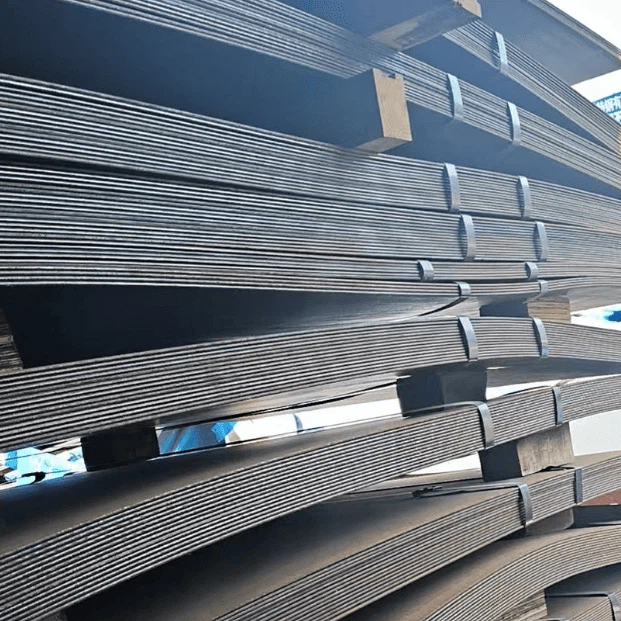

S235J2 carbon steel plate is 1.0117. S235J2 is a commonly used carbon steel that can be easily welded to other weldable steels. Due to its low carbon content, it exhibits excellent cold-forming properties.
This steel plate is produced using a fully killed steel process and is supplied in either a normalized or controlled rolled condition. Widely used in shipbuilding, construction, and machinery manufacturing, EN10025 S235J2 steel plate offers reliable performance across various applications.
Products Specification
| Steel grade type | Carbon steel: |
|---|---|
| Standard | |
| Production specifications | Steel plate,Sheet, Coil,Flat bar,Round bar, Strip steel,wire,All kinds of forgings. |
| Mchining | Turning Milling Grinding Deep hole drilling: length max 9.8 meters. |
|
Range of work |
Round bar steel: 1mm to 2000mm Square-shape steel: 10mm to 1000mm steel Plate/sheet:0.08mm to 800mm Width: 10mm to 1500mm Lenth: We can supply any lenth based on the customer's requirement. Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes Tubings: OD: φ4-410 mm, with wall thickness ranging from 1-35 mm. |
| Heat treatment | Normalizing,Annealing,Tempering,Quenching,Hardening and tempering,Seasoning,Surface hardening,Carburizing |
chemical composition
|
Element |
Composition (% by weight) |
|---|---|
|
Carbon (C) |
0.17 max |
|
Manganese (Mn) |
1.40 max |
|
Phosphorus (P) |
0.035 max |
|
Sulfur (S) |
0.035 max |
|
Silicon (Si) |
0.55 max |
|
Copper (Cu) |
0.55 max |
|
Nitrogen (N) |
0.012 max |
|
Iron (Fe) |
Balance |
Mechanical Properties
|
Property |
Value |
|---|---|
|
Yield Strength (min) |
235 MPa |
|
Tensile Strength |
360–510 MPa |
|
Elongation (min, 200 mm) |
24% |
|
Impact Toughness (Charpy V-notch) |
27 J at -20°C |
|
Hardness (HB, typical) |
120–170 HB |
s235j2 Thickness Tolerance
Thickness tolerance for en 10025-2 s235j2 is governed by EN 10029, which specifies tolerances for hot-rolled plates 3 mm thick or above. For S235J2 (non-alloy structural steel with ReH ≥ 235 N/mm²), the default is Class A, unless otherwise specified. The table below summarizes EN 10029 Class A thickness tolerances:
|
Nominal Thickness t (mm) |
Tolerance (mm) Upper/Lower |
|---|---|
|
t ≤ 3 |
±0.3 |
|
3 < t ≤ 5 |
±0.4 |
|
5 < t ≤ 8 |
±0.5 |
|
8 < t ≤ 15 |
±0.6 |
|
15 < t ≤ 25 |
±0.8 |
|
25 < t ≤ 40 |
±1.0 |
|
40 < t ≤ 80 |
±1.2 |
|
80 < t ≤ 100 |
±1.4 |
|
100 < t ≤ 150 |
±1.8 |
|
150 < t ≤ 200 |
±2.2 |
|
200 < t ≤ 250 |
±2.6 |
Products Application
Construction: For bridges, buildings, and stadiums, where moderate strength (minimum yield strength 235 MPa, tensile strength 360–510 MPa) and low-temperature toughness are required.
Offshore Engineering: In platforms and wind turbines, leveraging its corrosion resistance and impact toughness (Charpy V-notch impact energy ≥ 27 J at –20 °C).
Heavy Machinery: For cranes, excavators, and mining equipment, where durability under dynamic loads is critical.
Shipbuilding: In hulls and superstructures, benefiting from its excellent weldability and strength.
Energy Sector: For pipelines and storage tanks, similar in performance to EN 10025 S355J2G3 steel plates but with moderate strength.
