S500QL high strength plate
S500QL High Strength Low Alloy HSLA Steel Products Description
S500QL high tensile steel plate is a high-strength bridge structural steel plate. It complies with European standard EN10025/6 and is delivered in a quenched and tempered state. We can also choose the delivery method according to your needs.
Performance characteristics of S500QL high strength steel sheet
Good plasticity and toughness: S500QL high strength plate maintains stable performance in various complex working environments.
Fatigue and impact resistance: S500QL high strength sheet metal can improve fatigue and impact resistance after quenching and tempering heat treatment.
Engineering application fields of S500QL high strength structural steel
S500QL high tensile alloy steel is widely used in bridges, buildings, machinery manufacturing and other fields.
S500QL high tensile steel sheet is subjected to greater loads and more complex structural designs in large-scale infrastructure construction.
S500QL High Strength Plate Products Details
S500QL hsla structural steel chemical composition
| Grade | C % | Si % | Mn % | P % | S % | N % | B % | Cr % |
S500QL |
0.200 | 0.800 | 1.700 | 0.020 | 0.010 | 0.015 | 0.005 | 1.500 |
| Cu % | Mo % | Nb % | Ni % | Ti % | V % | Zr % | ||
| 0.500 | 0.700 | 0.060 | 2.000 | 0.050 | 0.120 | 0.150 |
S500QL low alloy structural steel mechanical properties
| Grade | Thickness | Min Yield (Mpa) | Tensile(MPa) | Elongation(%) | Min Impact Energy | |
| S500QL | 8mm-50mm | Min 500Mpa | 590-770Mpa | 17% | -40 | Min 30J |
| 51mm-100mm | Min 480Mpa | 590-770Mpa | 17% | -40 | Min 30J | |
| 101mm-150mm | Min 440Mpa | 540-720Mpa | 17% | -40 | Min 30J | |

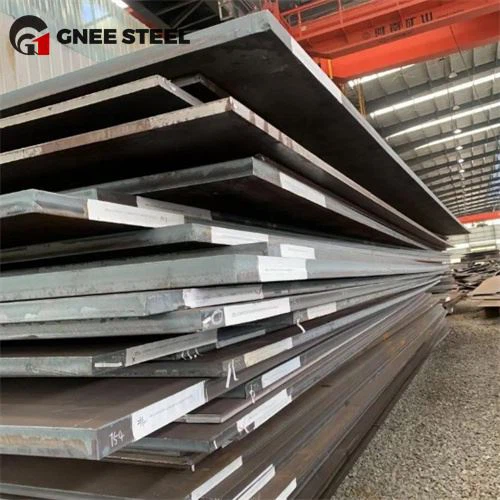

S500QL HSLA Low Alloy High Strength Steel Plate Products Image
S500QL HSLA Steel Plate Product Transportation
If you have more needs and questions about S500QL high strength plate, please contact us!
