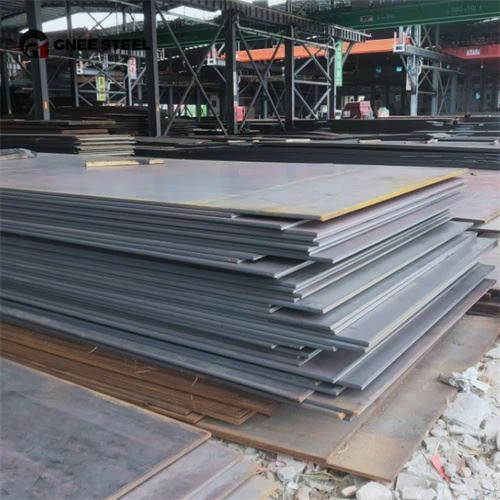

16Mo3 Pressure Vessel Quality Steel

16Mo3 pressure vessel quality steel





16Mo3 boiler plate is an alloy steel material, also known as 1.5415 steel, containing about 0.3% carbon and about 0.3% molybdenum, following the European standard EN10028/EN10222-2.



‌16Mo3 boiler steel plate performance characteristics
Excellent heat resistance and corrosion resistance: 16Mo3 steel boiler plate can maintain stable performance at high temperatures and resist corrosion in corrosive environments.
‌Good welding performance: 16Mo3 pressure vessel plate needs to be preheated during welding, and the overall welding performance is good.



‌16Mo3 pressure vessel steel plate application areas ‌
Boilers and pressure vessels: 16Mo3 pressure vessel plate material is used to manufacture boiler wall plates, heat exchangers, steam generators, pressure vessels, etc.
‌Pipeline system: 16Mo3 vessel steel plate is used to manufacture pipelines for transporting high-temperature fluids, such as gas, steam and hot water pipelines.
‌Petrochemical: 16Mo3 boiler steel is used to manufacture equipment such as storage tanks, reactors and heat exchangers.





Chemical composition % of steel 16Mo3 boiler steel

C	Si	Mn	Ni	P	S	Cr	Mo	N	Cu
0.12 - 0.2	max 0.35	0.4 - 0.9	max 0.3	max 0.025	max 0.01	max 0.3	0.25 - 0.35	max 0.012	max 0.3



Mechanical properties of steel 16Mo3 pressure vessel quality steel

Nominal thickness (mm):	to 60	60 - 100	100 - 150	150 - 250
Rm - Tensile strength (MPa) (+N)	440-590	430-580	420-570	410-570
Rm - Tensile strength (MPa) (+QT)	440-570	420-550



Nominal thickness (mm):	to 16	16 - 40	40 - 60	60 - 100	100 - 150	150 - 250
ReH - Minimum yield strength (MPa) (+N)	275	270	260	240	220	210
Nominal thickness (mm):	to 250	250 - 500
ReH - Minimum yield strength (MPa) (+QT)	265	250



KV - Impact energy (J) transverse, (+N)	+20° 27
KV - Impact energy (J) longitud., (+QT)	+20° 50
KV - Impact energy (J) transverse, (+QT)	+20° 34
KV - Impact energy (J) longitud	+20° 40











We are happy to provide you with the price and specific size of 16Mo3 pressure vessel quality steel, including the inventory and application of the goods. You are welcome to visit our company. We guarantee that you will have a pleasant time in China.
