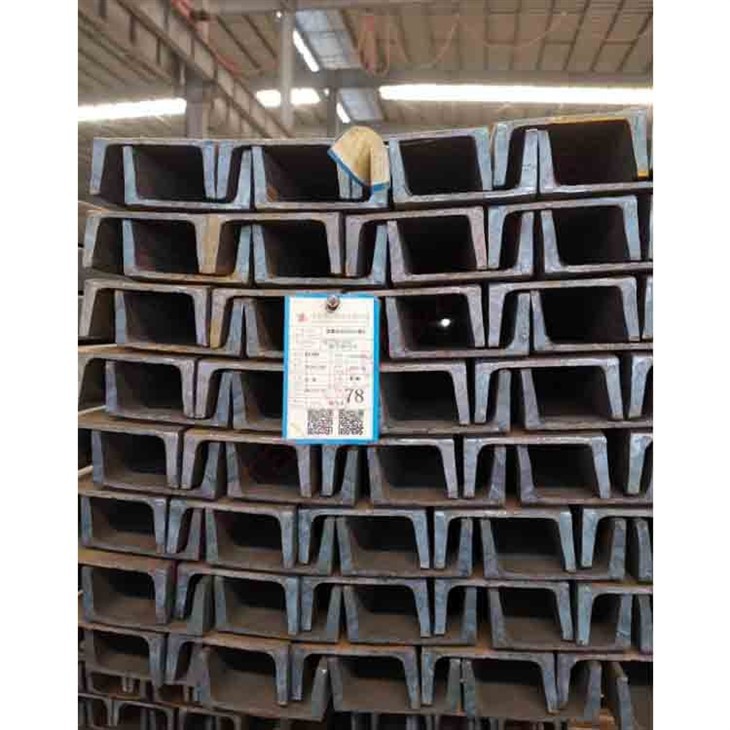

A36 C Section Steel
C Section Steel Channel Product Description
A36 Channel is a hot-rolled mild steel structural C-section with internal radius corners, making it ideal for all structural applications, general fabrication, production and repair.
A36 is hot rolled low carbon channel c steel with good weldability, workability and ductility. A36 structural metal channels are available in two sizes: UPN and UPE, tapered flange and parallel flange respectively.
A36 low carbon channel beam can be galvanized or primed to add a layer of protection against environmental or weather corrosion. The specific galvanized layer GNEE can provide processing services according to your requirements.
A36 c section steel Applications: Building or construction support components; frame supports for trucks, trailers, equipment; ceiling trough systems; workbenches and other daily uses.
Channel metal bar services that GNEE can provide you
Project: ASTM A36 channel steel beam
Sizes: UPN and UPE
Web width: 80 - 200 mm or as required
Web thickness: 6 - 8.5 mm (UPN), 4.5 - 5.2 mm (UPE) or as required
Flange width: 45 - 75 mm (UPN), 40 - 76 mm (UPE) or as required
Flange thickness: 8 - 11.5 mm (UPN), 7.4 - 9.0 mm (UPE) or as required
Length: 3 meters, 6 meters or as required
Surface treatment: untreated, galvanized or primed
Note: can be processed according to your needs
Metal C Section Products Details
Steel grade |
Styles |
Carbon, max, % |
Manganese, % |
Phosphorus, max, % |
Sulfur, max, % |
Silicon, % |
|---|---|---|---|---|---|---|
A36 |
Steel shapes |
0.26 |
-- |
0.04 |
0.05 |
≤0.40 |
Steel grade |
Styles |
Tensile strength, ksi [MPa] |
Yield point, min, ksi [MPa] |
Elongation in 8 in. [200 mm], min, % |
Elongation in 2 in. [50 mm], min, % |
|---|---|---|---|---|---|
A36 |
Steel shapes |
58 - 80 [400 - 550] |
36 [250] |
20 |
21 |
Item |
Depth (mm) |
Flange width (mm) |
Web thickness (mm) |
Flange thickness (mm) |
Weight (kg/m) |
|---|---|---|---|---|---|
UPN80 |
80 |
45 |
6 |
8 |
8.64 |
UPN100 |
100 |
50 |
6 |
8.5 |
10.6 |
UPN120 |
120 |
55 |
7 |
9 |
13.4 |
UPN140 |
140 |
60 |
7 |
10 |
16 |
UPN160 |
160 |
65 |
7.5 |
10.5 |
18.8 |
UPN180 |
180 |
70 |
8 |
11 |
22 |
UPN200 |
200 |
75 |
8.5 |
11.5 |
25.3 |
Item |
Depth (mm) |
Flange width (mm) |
Web thickness (mm) |
Flange thickness (mm) |
Weight (kg/m) |
|---|---|---|---|---|---|
UPE80 |
80 |
40 |
4.5 |
7.4 |
7.05 |
UPE100 |
100 |
46 |
4.5 |
7.6 |
8.59 |
UPE120 |
120 |
52 |
4.8 |
7.8 |
10.4 |
UPE140 |
140 |
58 |
4.9 |
8.1 |
12.3 |
UPE160 |
160 |
64 |
5 |
8.4 |
14.2 |
UPE180 |
180 |
70 |
5.1 |
8.7 |
16.3 |
UPE200 |
200 |
76 |
5.2 |
9 |
18.4 |
Channel Steel Beam Products Image
