Products Description

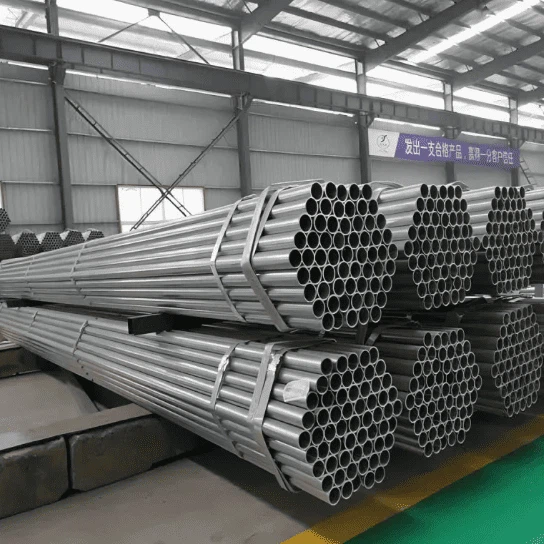

Corten Steel ASME SA423 Seamless Pipes are renowned for their exceptional corrosion resistance and durability. When exposed to natural weather conditions, these pipes form a protective layer that effectively prevents further corrosion, making them ideal for bridge construction, sculpture creation, marine transportation, and various architectural projects.
ASTM A423 Gr.1 pipes typically contain 0.12–0.20% carbon, 0.25–0.50% manganese, 0.25–0.55% copper, and 0.30–1.00% chromium, providing a balance of high strength and weather resistance.
They offer a yield strength of at least 345 MPa, tensile strength between 485–620 MPa, elongation of no less than 21%, and a Brinell hardness below 180 HB, ensuring excellent mechanical performance over long-term use.
ASTM A423 pipes play a crucial role in corrosion-resistant applications, making them highly suitable for sugar mills and various processing units. When purchasing ASTM A423 Gr.1 pipes, it is essential to request the Mill Test Certificate (MTC) and compliance certificate according to the ASTM A423 standard.
The MTC provides detailed information on chemical composition, mechanical properties, and testing, ensuring that the pipes fully meet the corrosion resistance and structural requirements of your project.
Corten Steel ASME SA423 Seamless Pipes & Tubes Specifications
| Size Range | ½ OD to 16 OD |
|---|---|
| Standards | ASTM A 423 GR. 1,ASME SA 423, ASTM A 847, ASTM 588, ASTM 606 |
| Grade | ASTM A 423 GR.1 , asme SA A423 , astm a 847, astm 606 |
| Shape | Round, Square, Rectangle, Hydraulic, Honed Tubes |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End |
| type | Weathering steel / corten steel |
ASTM A423 Pipes Chemical Composition
| COMPOSITION | Grade 1 | Grade 2 |
|---|---|---|
| Carbon, max | 0.15 | 0.15 |
| Manganese, max | 0.55 | 0.50–1.00 |
| Phosphorus | 0.06–0.16 | 0.04 max |
| Sulfur, max | 0.060 | 0.05 |
| Silicon, min | 0.10 | … |
| Copper | 0.20–0.60 | 0.30–1.00 |
| Chromium | 0.24–1.31 | … |
| Nickel | 0.20–0.70 | 0.40–1.10 |
| Molybdenum, min | … | 0.10 |
Mechanical Properties Of Corten Steel ASTM A423 Seamless Pipes
|
Tensile Strength, Mpa |
Yield Strength, Mpa |
Elongation, % |
|
| ASTM A423 Gr.1 |
415 min |
255 min |
25 min |
General Requirements
All tubes shall be supplied as per applicable ASTM B338 /B338M, ASTM A450/A450M Specification Mill test certificates will be issued We can provide 3.2 Certification according to the needs of you
Testings
Mechanical Tests Required Tension Test-One tension test will be made on a specimen for lots of not more than 50 tubes.
Flattening Test-One flattening test will be made on specimens from each end ofone finished tube, not the one used for the flaring or flanging test, from each lot .
Flaring Test (Seamless Tubes)-One flaring test will be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot
Hardness Test-Brinell or Rockwell hardness tests will be made on specimens from two tubes from each lot
Hydrostatic or Nondestructive Electric Test-Each tube will be subjected to the hydrostatic test.
ASTM A423 Corten Steel Tubes Application Industries
Petrochemical Industry
Chemical Industry
Oil and Gas Industry
Pulp & Paper Indusry
Power Plant Industry
Food Processing Industry
Pharmaceuticals Industry
Energy Industry
Aerospace Industry
Paper & Pulp Industry
Offshore and Onshore Services
Sugar Industry
