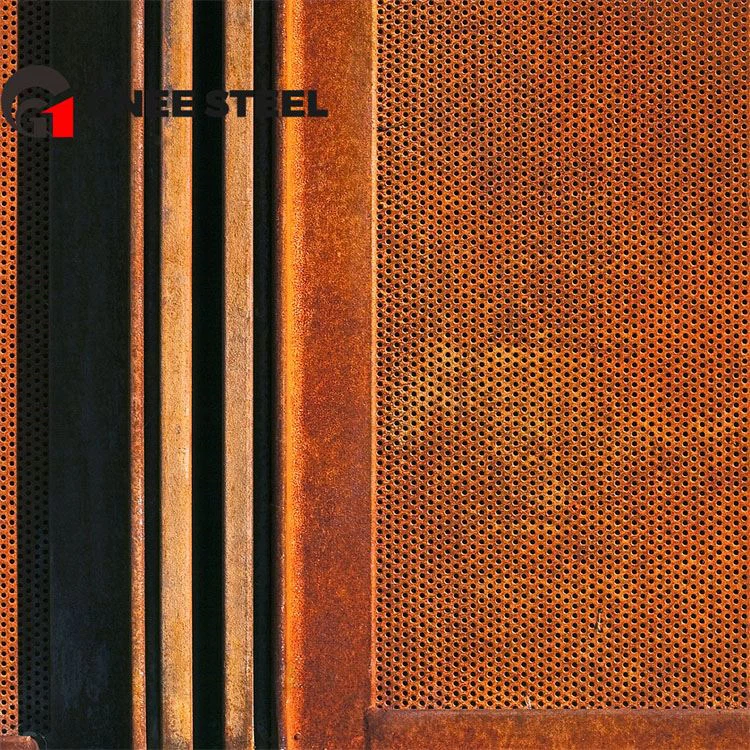

S235J2W corten metal sheet
Weathering Plate Products Description
GNEE is a S235J2W weathering steel sheet supplier with 16 years of production experience, the S235J2W corten sheet we offer is manufactured in strict accordance with the standards, passed the quality certification, we can provide quality certificates and accept third-party testing.
The S235J2W weathering steel sheet we offer can be customised in size, cut, welded, punched and other processing services according to your end-use requirements for S235J2W corten steel sheet products.
Weathering Metal Products Details
S235J2W Corten Weathering Steel Chemical Composition & Mechanical Property:
| C | Si | Mn | P | S | Cr | Cu | CEV |
| max 0.13 | max 0.4 | 0.2 - 0.6 | max 0.035 | max 0.03 | 0.4 - 0.8 | 0.25 - 0.55 | max 0.44 |
| Nominal thickness (mm): | to 3 | 3 - 100 | 100 - 150 |
| Rm - Tensile strength (MPa) | 360-510 | 360-510 | 350-500 |
| Nominal thickness (mm): | to 16 | 16 - 40 | 40 - 63 | 63 - 80 | 80 - 100 | 100 - 150 |
| ReH - Minimum yield strength (MPa) | 235 | 225 | 215 | 215 | 215 | 195 |
| KV - Impact energy (J) longitud., | -20° 27 |
0° 27 |
| Nominal thickness (mm): | 1.5 - 2 | 2 - 2.5 | 2.5 - 3 |
| A - Min. elongation Lo = 80 mm (%) | 19 | 20 | 21 |
| Nominal thickness (mm): | 3 - 40 | 40 - 63 | 63 - 100 | 100 - 150 |
| A - Min. elongation Lo = 5,65 √ So (%) | 26 | 25 | 24 | 22 |
Corten Structural Steel Products Image
GNEE Group Team Photo
GNEE Group Exhibition Pictures
GNEE Group Customer Visits
If you have more needs and questions about S235J2W corten metal sheet, please contact us!
