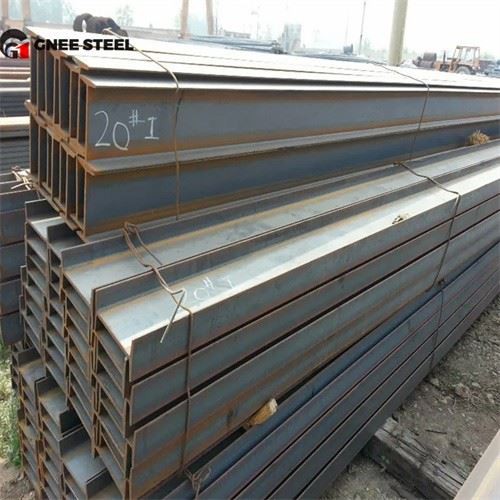

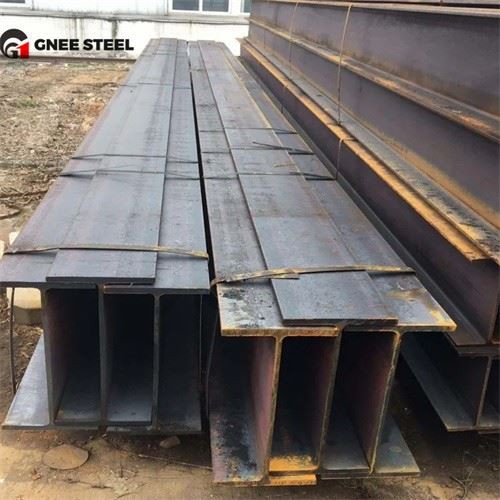

762x292x194 S355JR H-Beams Structural Steel

UB 762x292x194 h type beam is an H-shaped steel specification with dimensions of 762 mm (about 30 inches) in height and 292 mm (about 11.5 inches) in width. It weighs 194 kg per meter and is usually made of S355JR material.

Product description of S355JR h profile steel
Standard: S355JR h shape metal is a hot rolled structural steel that follows the European standard EN 10025.

Yield strength: not less than 355 MPa, with high resistance to deformation.

Tensile strength: usually ranges from 470 to 630 MPa.

Elongation: at least 22%, able to withstand some plastic deformation before breaking.

Impact toughness: minimum 27 joules at +20°C, ensuring good toughness and impact resistance.

Chemical composition: mainly iron, with small amounts of carbon (maximum 0.22%), manganese (maximum 1.60%), silicon (maximum 0.55%) and other elements, and strictly limits the content of phosphorus and sulfur (both not exceeding 0.025%) to ensure the quality of the material.

UB 762x292x194 steel h profile has high strength and good toughness, and is widely used in the following engineering fields:
High-rise building structure: as the main load-bearing components, such as columns and beams.

Bridge construction: used to build bridge frames and support bridge decks.

Industrial plants: suitable for the main frame of large industrial buildings.

Other heavy structures: including but not limited to crane tracks, port machinery, etc.
