W8x13 W8x15 H Section Steel A36/A572GR50/A992

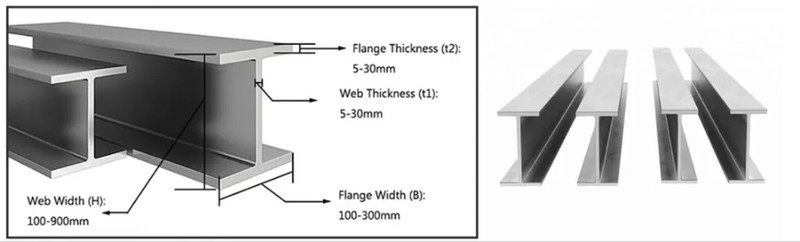

W8x13 h beam and W8x15 h section steel are two different specifications of American standard H-beam (also known as wide flange H-beam), while A36 refers to a material standard of steel.

W8x13 h shaped iron beam: This refers to a specific size of H-beam, with a section height of about 8 inches (about 203 mm) and a theoretical weight of 13 pounds per foot (about 5.9 kg/m). "W" stands for wide flange, and "8" means the section height is 8 inches.

W8x15 h shaped steel beam: It is also an H-beam. Compared with W8x13, its section height is also 8 inches, but the theoretical weight per foot length is increased to 15 pounds (about 6.8 kg/m). It is heavier, thicker or wider than W8x13, and has a higher load-bearing capacity.

W8x13 and W8x15 are two H-shaped steel specifications under the American Standard (ASTM). They have different sizes and weights, and are applicable to different engineering scenarios. They are usually used in structures that require high strength, high rigidity and stability, such as buildings and bridges.

W8x13 h shaped steel
Lightweight applications: Due to its lighter weight per foot (13 pounds per foot), W8x13 is suitable for occasions where the load-bearing capacity is not particularly high.

Residential and commercial buildings: In some residential or small commercial buildings that do not need to withstand extreme loads, W8x13 can be used as beams or columns to support floors or roofs.

Secondary frame structure: It can be used as an auxiliary structural material to support the main frame structure, such as partition walls, interior decoration frames, etc.

W8x15 h beam structure
Medium load requirements: Compared with W8x13, W8x15 has a higher weight per foot (15 pounds per foot) and is more suitable for applications that require higher strength and load-bearing capacity.

Industrial construction: For industrial plants or warehouses that require stronger support, W8x15 is more suitable and can withstand greater loads.

Bridge construction: In some cases, W8x15 may also be used for secondary components in bridge construction, especially where the span is not large and the required load-bearing capacity is moderate.
