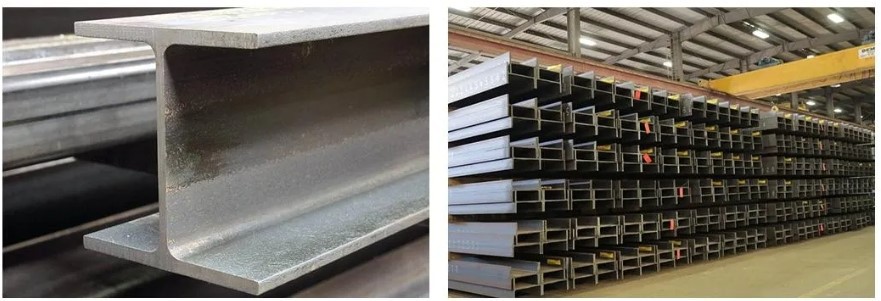

A36 W4x13 W5x16 W6x8.5 steel wide flange beam
ASTM A36 h shaped beam is a widely used low-carbon structural steel with good weldability and machinability, suitable for a variety of processing techniques (such as cutting, bending, welding); easy to form, suitable for the manufacture of complex structures.
A36 material W4x13, W5x16, W6x8.5 H-shaped steel has reasonable section design and excellent mechanical properties.
W4x13 h beam steel structure
Height (H): 4 inches (about 101.6mm)
Flange width (B): 1.33 inches (about 33.9mm)
Web thickness (t): 0.23 inches (about 5.84mm)
Application areas: secondary beams of small bridges; support beams in light building structures; frame components of mechanical equipment.
Features: Suitable for scenes with small spans and low load requirements; due to its small size, it is easy to transport and install.
W5x16 h section beam
Height (H): 5 inches (about 127mm)
Flange width (B): 1.63 inches (about 41.4mm)
Web thickness (t): 0.33 inches (about 8.38mm)
Application areas: beam structure of medium-sized bridges; frame beams of industrial plants; supporting structures of buildings.
Features: Compared with W4x13, it has stronger load-bearing capacity and is suitable for medium spans and large and medium-sized structures; the cross-section design is reasonable and can withstand certain bending and shear forces.
W6x8.5 h beam structure
Height (H): 6 inches (about 152.4mm)
Flange width (B): 1.63 inches (about 41.4mm)
Web thickness (t): 0.33 inches (about 8.38mm)
Application areas: main beams of large bridges; frame beams of high-rise buildings; supporting beams of heavy machinery and equipment.
Features: High bearing capacity, suitable for large span or heavy load scenarios; large flange width, increased bending resistance.
Application characteristics of A36 material in steel
Excellent welding performance: A36 material is easy to weld, suitable for a variety of welding processes (such as arc welding, submerged arc welding, etc.), suitable for on-site construction.
Good processing performance: It can be processed by cutting, drilling, bending and other processes to meet the needs of complex structures.
Wide applicability: Due to its moderate strength and low cost, A36 steel is widely used in construction, bridges, machinery manufacturing and other fields.
