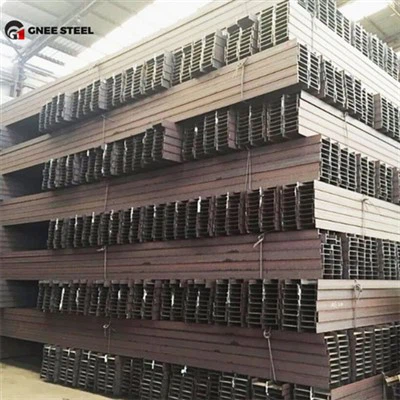

S355JR/S355J0 UB1016x305x222 h shaped steel
Chemical properties of S355JR steel beam h
Carbon content ≤0.22%, silicon content ≤0.55%, manganese content ≤1.60%, phosphorus and sulfur content ≤0.025%.
The yield strength varies according to the thickness of the steel plate. When the thickness is ≤16mm, the yield strength is ≥355MPa. As the thickness increases, the yield strength will gradually decrease. For example, when the thickness is 16-40mm, the yield strength is ≥345MPa. The tensile strength is generally between 470-630MPa, with good plasticity and processing properties.
Chemical properties of S355J0 h profile steel
Carbon content ≤0.20%, silicon content ≤0.55%, manganese content ≤1.60%, phosphorus and sulfur content ≤0.040%.
Yield strength ≥355MPa, tensile strength between 470-630MPa, elongation up to 22%, good impact toughness, can withstand impact at 0℃, can withstand low temperature environment, and has good weldability, machinability and fatigue resistance.
Steel specifications
Dimensions: UB 1016x305x222 h beam profile means British standard H-beam steel, height is 1016mm, flange width is 305mm, weight per meter is 222kg.
Implementation standard: British standard H-beam steel implements EN standard, size standard is BS EN10365-2017, tolerance standard is EN10034:1993.
Application of UB 1016x305x222 h steel profile
Construction: Suitable for high-rise buildings, factories, steel structures, etc., can be used as structural components such as beams and columns to bear the weight of the building and various loads.
Bridge engineering: It can be used to build large bridges, can bear the weight of the bridge itself, vehicle loads and wind loads, etc., and is especially suitable for the main structure of the bridge in low temperature environments.
Machinery manufacturing: Commonly used in the manufacture of heavy machinery, lifting equipment, engineering vehicles, etc., to provide solid structural support for the equipment.
