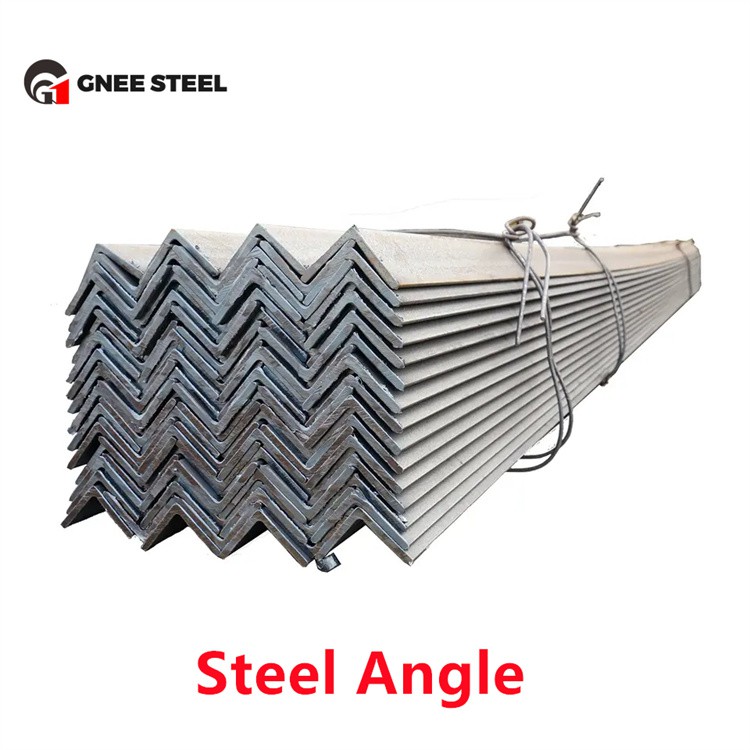

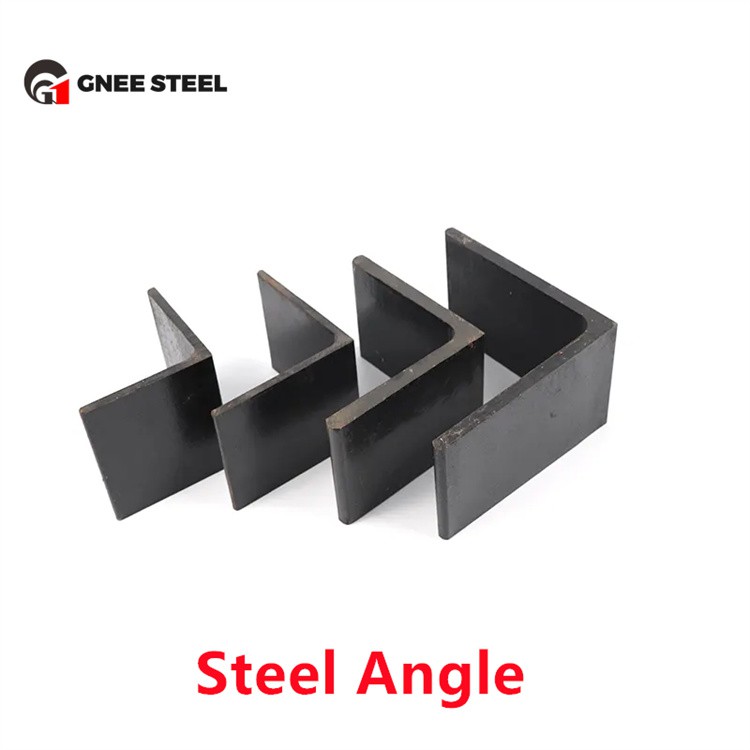

ASTM A36 A53 Q235 Q345 Iron Angle Bar Steel is a versatile and high-performance series of structural angle steel, engineered to meet the stringent standards of both international (ASTM) and Chinese national (GB/T) specifications. As a core component in structural engineering and industrial fabrication, this angle bar steel features a classic L-shaped cross-section (available in equal-side and unequal-side configurations) that ensures excellent load-bearing capacity, balanced force distribution, and exceptional structural stability, making it suitable for a wide range of static and dynamic load applications.
This product series covers four premium-grade iron-based materials, each with distinct chemical compositions and mechanical properties tailored to diverse project requirements. Q235 and Q345 are Chinese national standard carbon structural steels, while ASTM A36 and ASTM A53 are widely recognized American standard steels, ensuring compatibility with global engineering projects. Q235 grade, with a carbon content of 0.14%-0.22%, offers a minimum yield strength of 235 MPa and tensile strength of 370-500 MPa, striking an optimal balance between cost-effectiveness and basic structural performance. Q345, a low-alloy high-strength steel, boasts a minimum yield strength of 345 MPa and tensile strength of 470-630 MPa, enhanced by trace alloying elements (manganese, silicon, vanadium) for superior toughness and impact resistance, ideal for heavy-load and harsh-environment applications.
ASTM A36, the American equivalent of Q235, is a carbon structural steel with a minimum yield strength of 250 MPa and tensile strength of 400-550 MPa, characterized by excellent ductility and weldability, making it the most commonly used material in North American structural projects. ASTM A53, primarily a seamless and welded steel pipe standard, is extended here to angle bar steel, featuring a carbon content of 0.25%-0.30%, with a minimum yield strength of 240 MPa and tensile strength of 415 MPa, offering enhanced corrosion resistance and structural integrity for applications involving fluid transport and outdoor infrastructure. All four materials comply with strict dimensional tolerances (ASTM A6/A6M for American standards and GB/T 706 for Chinese standards), ensuring consistent quality and interchangeability across projects.
The iron angle bar steel is manufactured via advanced hot-rolling technology, a process that involves heating iron billets to temperatures above 1000°C to soften the material, followed by precision rolling to form the L-shaped cross-section. This hot-rolling process refines the internal grain structure of the steel, eliminates internal defects (such as pores, inclusions, and cracks), and improves ductility and workability. The product can be easily cut, bent, drilled, and welded using standard industrial methods (arc welding, MIG welding, TIG welding), with no significant hardening in the heat-affected zone-ensuring strong, durable joints and maintaining structural integrity after fabrication.
In terms of specifications, the ASTM A36 A53 Q235 Q345 Iron Angle Bar Steel offers a comprehensive range of dimensions to accommodate diverse application scenarios. Leg lengths range from 20mm to 200mm (0.75 inches to 8 inches), with thicknesses spanning 3mm to 25mm (0.12 inches to 1 inch), and standard lengths of 6m, 9m, and 12m (20 feet to 40 feet). Custom lengths (up to 18m/60 feet) and special dimensions are available for bulk orders, catering to project-specific requirements. Popular standard sizes include 50x50x5mm, 75x75x8mm, 100x100x10mm, and 125x75x10mm (equal-side and unequal-side), all of which are regularly stocked for immediate delivery.
Due to their distinct performance advantages, the four material grades within this series are widely applied across multiple industries. Q235 and ASTM A36 are preferred for general structural projects, such as building frames, roof trusses, scaffolding, floor joists, and warehouse shelves. Q345 is ideal for heavy-duty applications, including bridge bracing, transmission towers, machinery supports, and industrial factory frameworks. ASTM A53 angle bar steel is particularly suitable for outdoor and corrosive environments, such as road guardrails, marine infrastructure, and fluid transport system supports. Additionally, the product is widely used in civil decoration (sunrooms, courtyard railings) and agricultural machinery, demonstrating its versatility.
Each batch of ASTM A36 A53 Q235 Q345 Iron Angle Bar Steel undergoes strict quality control procedures, including chemical composition testing, mechanical property verification (yield strength, tensile strength, impact toughness), dimensional accuracy inspection, and surface quality assessment. The surface of the hot-rolled angle bar features a natural oxide film, which can be further treated with hot-dip galvanization, electro-galvanization, or painting to enhance corrosion resistance, extending service life in outdoor, humid, or corrosive environments. As a reliable, cost-effective, and versatile structural material, this angle bar steel series meets the diverse needs of global engineering projects, embodying the perfect integration of international standards and practical performance.
