S355J0W weathering steel is an atmospheric corrosion-resistant structural steel grade specified by EN 10025-5. It combines structural strength, impact toughness, weldability and improved resistance to atmospheric corrosion, making S355J0W steel plate suitable for bridges, buildings, outdoor structures, infrastructure and architectural applications.
For buyers looking for a combination of structural performance and weather resistance, S355J0W high-strength structural steel provides a practical solution for long-term outdoor use.
S355J0W Weathering Steel Chemical Composition
The chemical composition of S355J0W weathering steel is designed to balance weldability, structural strength and atmospheric corrosion resistance. Elements such as chromium, copper and nickel contribute to the formation of a protective weathering surface.
| Element | S355J0W Requirement, wt.% |
|---|---|
| C | ≤0.16 |
| Si | ≤0.50 |
| Mn | 0.50–1.50 |
| P | ≤0.035 |
| S | ≤0.035 |
| N | ≤0.012 |
| Cr | 0.40–0.80 |
| Cu | 0.25–0.55 |
| Ni | ≤0.65 |
| Mo | ≤0.30 |
| Zr | ≤0.15 |
| CEV | ≤0.52 |
The controlled carbon content is important for S355J0W weldability, while Cu, Cr and Ni contribute to the weathering performance of S355J0W weathering steel plate.
S355J0W Steel Plate Mechanical Properties
The mechanical properties of S355J0W high-strength structural steel depend on plate thickness. Therefore, buyers should always confirm the applicable thickness range when specifying S355J0W steel plate.
| Thickness | Yield Strength, min. | Tensile Strength | Elongation, min. | Impact Energy |
| ≤16 mm | 355 MPa | 470–630 MPa | 22% | ≥27 J at 0°C |
| >16–40 mm | 345 MPa | 470–630 MPa | 22% | ≥27 J at 0°C |
| >40–63 mm | 335 MPa | 470–630 MPa | 21% | ≥27 J at 0°C |
| >63–80 mm | 325 MPa | 470–630 MPa | 20% | ≥27 J at 0°C |
| >80–100 mm | 315 MPa | 470–630 MPa | 20% | ≥27 J at 0°C |
| >100–150 mm | 295 MPa | 450–600 MPa | 18% | ≥27 J at 0°C |
The key point is that S355J0W steel plate does not have a fixed 355 MPa yield strength for every thickness. The minimum yield strength decreases as thickness increases.
S355J0W Weldability and Welding Performance
S355J0W weldability is generally considered good when appropriate welding procedures are followed. The relatively low carbon content and controlled alloying system allow S355J0W weathering steel to be welded using common structural-steel welding processes.
Common welding methods for S355J0W steel plate include:
- SMAW
- GMAW/MIG/MAG
- FCAW
- SAW
However, the welding parameters for S355J0W weathering steel plate should be selected according to plate thickness, joint restraint, heat input, ambient temperature and the qualified welding procedure.
For thicker S355J0W structural steel, higher restraint or low-temperature welding conditions, preheating and interpass-temperature control may be required. The final requirements should be established through the applicable WPS/PQR rather than relying on a single universal preheating temperature.
S355J0W Weathering Steel Welding Considerations
The key difference between welding S355J0W weathering steel and conventional structural steel is that the finished weld may also need to provide compatible weathering performance.
When an unpainted S355J0W corten steel structure is designed to develop a natural patina, the welding consumable should be selected according to the project requirements. A compatible weathering-steel consumable can help the weld area weather more consistently with the parent metal.
Before welding S355J0W steel plate, the joint should be clean and dry. Oil, moisture, rust scale and other contaminants should be removed. Heat input should be controlled to avoid unnecessary deterioration of the heat-affected zone.
For thick or highly restrained S355J0W high-strength structural steel components, hydrogen control, suitable preheating and controlled cooling may become more important.
S355J0W Weather Resistant Steel Features
The main advantage of S355J0W weather resistant steel is the combination of structural performance and atmospheric corrosion resistance.
Under suitable exposure conditions, the steel gradually develops a protective patina. This weathering layer can reduce the rate of further atmospheric corrosion and may reduce dependence on conventional coating systems.
The main characteristics of S355J0W weathering steel plate include:
- High structural strength: Up to 355 MPa minimum yield strength for thicknesses ≤16 mm.
- Atmospheric corrosion resistance: Alloying elements such as Cu, Cr and Ni support protective patina formation.
- Impact toughness: Minimum 27 J at 0°C under the J0 classification.
- Good weldability: Suitable welding procedures allow fabrication using common welding processes.
- Low-maintenance potential: Suitable unpainted structures can reduce repainting requirements.
- Distinctive appearance: The natural brown-orange patina provides an architectural weathered-steel appearance.
S355J0W High-Strength Structural Steel Applications
The combination of strength, weldability and weather resistance makes S355J0W high-strength structural steel suitable for demanding outdoor structures.

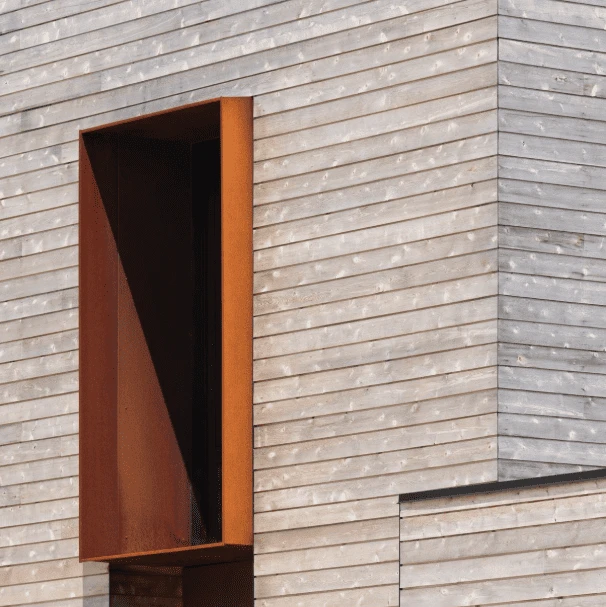

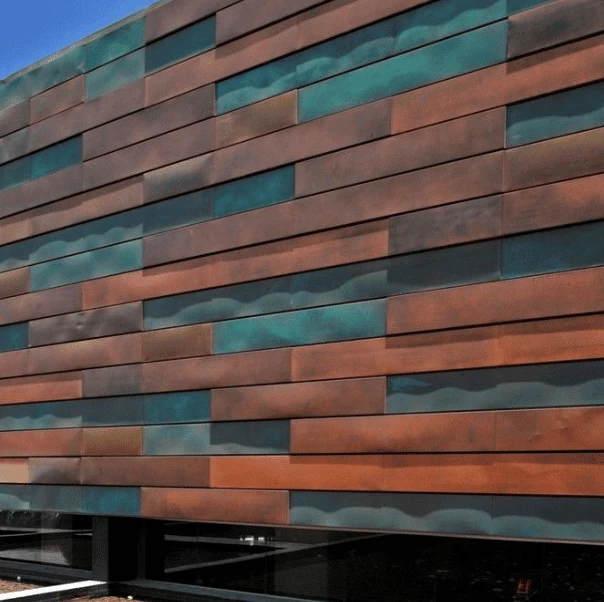

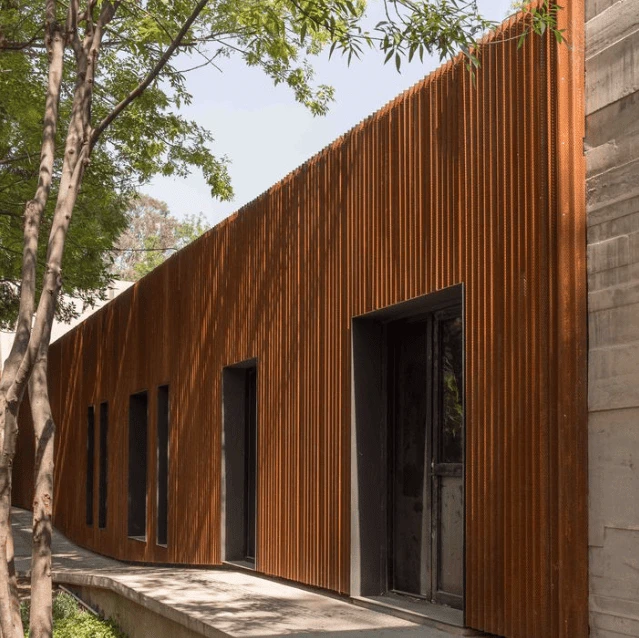

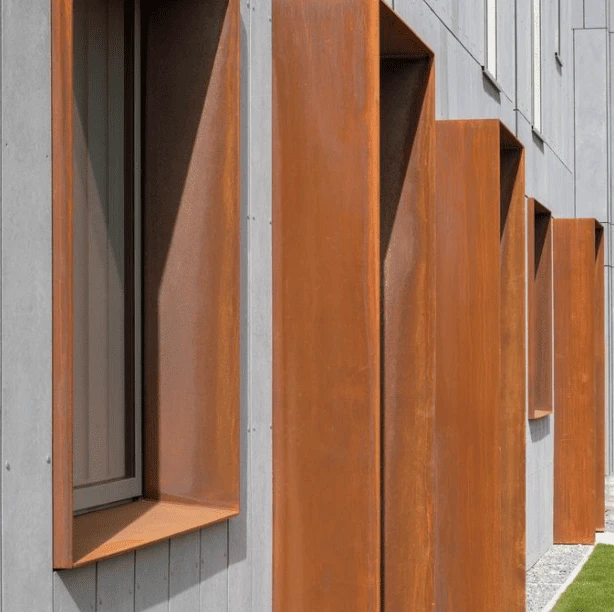

Typical applications for S355J0W steel plate include bridge girders, bridge components, railway structures, building façades, outdoor structural frames, industrial structures, architectural structures, sculptures and landscape installations.
For projects where structural strength and a natural weathered appearance are required simultaneously, S355J0W weathering steel can provide both engineering and architectural value.
S355J0W Weathering Steel vs S355J0 Carbon Steel
The primary difference between S355J0W weathering steel and S355J0 structural steel is atmospheric corrosion resistance.
| Property | S355J0 Structural Steel | S355J0W Weathering Steel |
| Standard | EN 10025 | EN 10025-5 |
| Strength class | S355 | S355 |
| Impact class | J0 | J0 |
| Atmospheric corrosion resistance | Standard | Improved |
| Protective patina | Not specifically designed | Designed to develop under suitable conditions |
| Outdoor exposure | Usually requires protection | Particularly suitable |
| Weathering appearance | No | Yes |
Therefore, S355J0W corten steel is generally more suitable than conventional S355J0 when the project requires natural weathering, outdoor exposure and reduced dependence on conventional coating systems.
S355J0W Weathering Steel Plate Supplier
Gnee supplies S355J0W weathering steel plate for bridges, buildings, infrastructure, architectural structures and outdoor projects. We can support customers requiring S355J0W steel plate according to project specifications. Supply can be arranged according to required thickness, width, length, quantity, surface condition and processing requirements.
If you are sourcing EN 10025-5 S355J0W weathering steel, contact Gnee for product specifications, technical documentation, material certificates, cutting services and project-based supply solutions.
Request a Quote for S355J0W Weathering Steel Plate

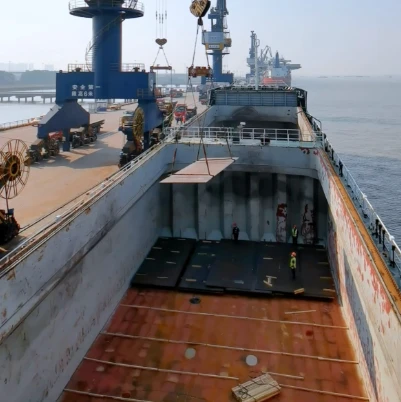

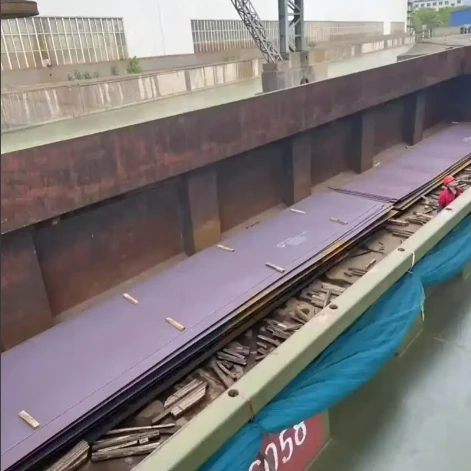

Our Packing
