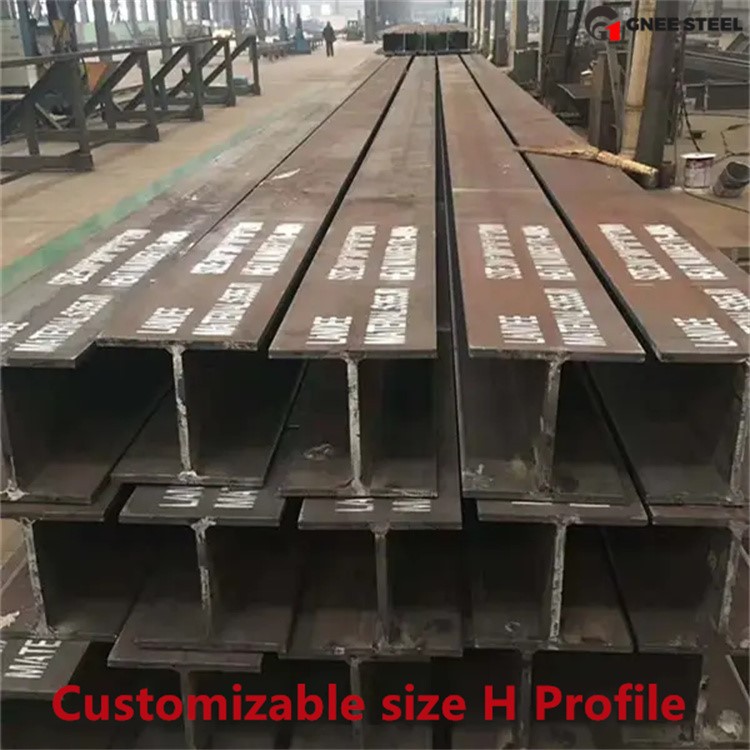

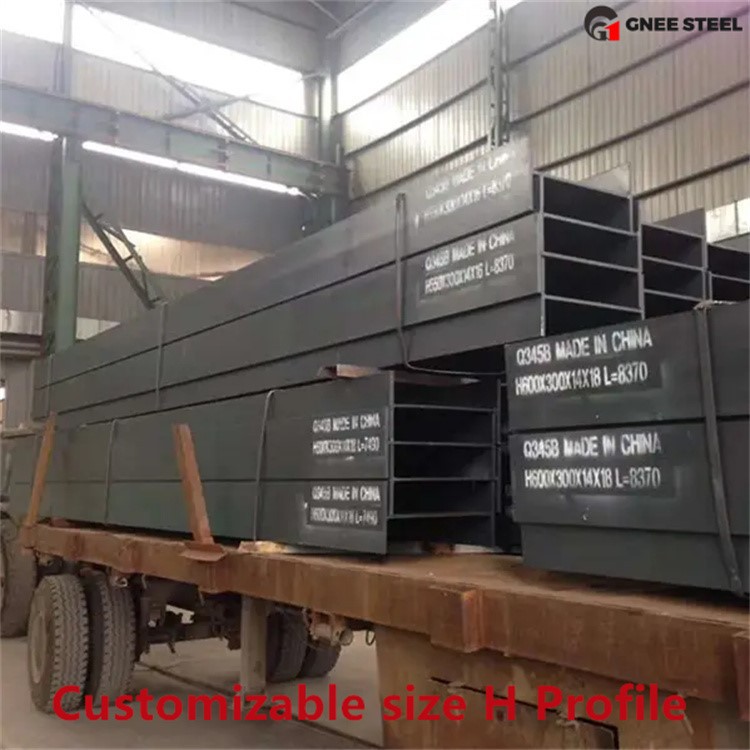

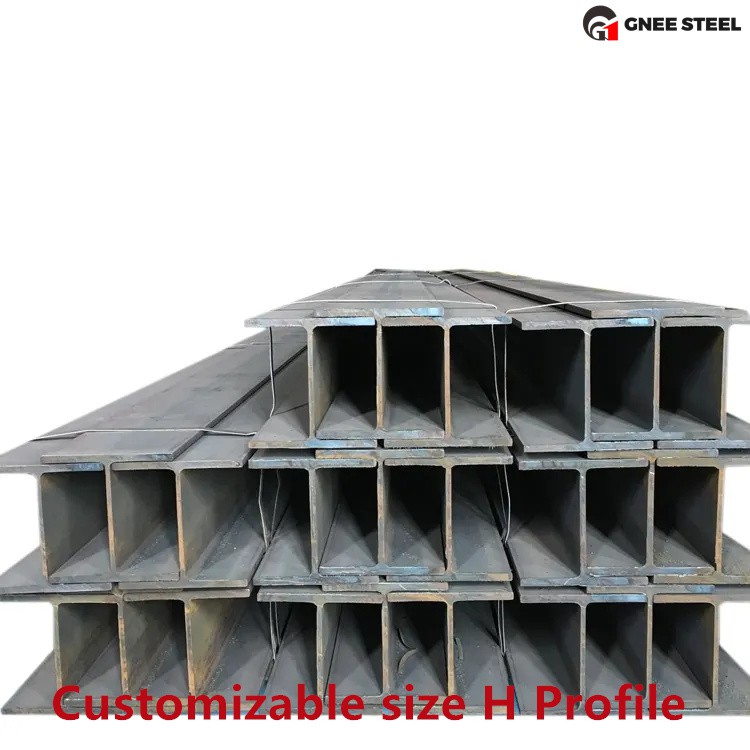

Q: How does the geometry of an H-beam contribute to its high moment of inertia?
A: The H-beam's geometry concentrates mass away from the neutral axis, significantly increasing its moment of inertia compared to solid sections of equal weight. The flanges resist bending moments primarily through tension and compression, while the web provides shear resistance and connects the flanges. This efficient distribution of material allows H-beams to achieve exceptional stiffness against bending in the strong axis (parallel to the web). The specific dimensions (flange width, thickness, web height, thickness) are precisely engineered to optimize the moment of inertia for different loading scenarios. Consequently, H-beams can span longer distances or support heavier loads with less material than many other shapes.
Q: Why are H-beams particularly vulnerable to lateral-torsional buckling, and how is this mitigated?
A: H-beams are highly efficient in strong-axis bending but possess relatively low resistance to twisting and weak-axis bending, making them susceptible to lateral-torsional buckling (LTB) under high loads, especially when unbraced lengths are long. LTB occurs when compression in the flange causes it to buckle sideways, twisting the entire beam. Mitigation strategies include providing lateral bracing at intervals along the beam length to restrain the compression flange. The bracing effectively reduces the unbraced length, dramatically increasing the beam's buckling resistance. Design codes provide specific formulas and tables to calculate the required bracing spacing based on the beam's properties and applied loads.
Q: What role does the web-to-flange thickness ratio play in H-beam performance?
A: The web-to-flange thickness ratio is crucial for balancing different failure modes and performance requirements. A relatively thick web enhances the beam's resistance to shear forces and web buckling under concentrated loads. However, a thick web adds weight and cost. A thicker flange significantly increases the section's moment capacity and resistance to flange local buckling. Engineers select specific H-beam sections (e.g., W-shapes with varying "slenderness" classifications like compact, non-compact, slender) based on this ratio to ensure the beam can develop its full plastic moment capacity before local buckling occurs, as dictated by structural design codes like AISC.
Q: How do residual stresses from the manufacturing process affect H-beam behavior?
A: Residual stresses are locked-in internal stresses present in H-beams after hot-rolling and cooling due to uneven cooling rates between the thicker flange/web junctions and the thinner flange tips/web center. These stresses exist in equilibrium within the section without external loads. Under applied bending loads, residual stresses can cause early yielding in parts of the cross-section, slightly reducing the effective elastic range. They also influence the beam's susceptibility to buckling phenomena, potentially lowering its critical buckling load compared to a theoretically stress-free beam. Modern design codes account for these effects through empirical factors and stability equations calibrated against test data.
Q: What is the significance of the "k-value" or "k1 detailing" in H-beam connections?
A: The k-value (distance from the outer face of the flange to the web toe of the fillet) and k1-value (distance from the center of the fillet to the flange edge) are critical dimensions for connection design. These values determine the clearance available for welding access, bolt placement, and the attachment of connection elements like shear tabs or end plates. Accurate knowledge of k and k1 is essential to ensure that welds can be properly executed, bolts can be tightened without interference, and stiffeners (if needed) fit correctly. Fabricators rely on standardized k/k1 values published in beam dimension tables to detail connections accurately and avoid costly fit-up issues in the field.
