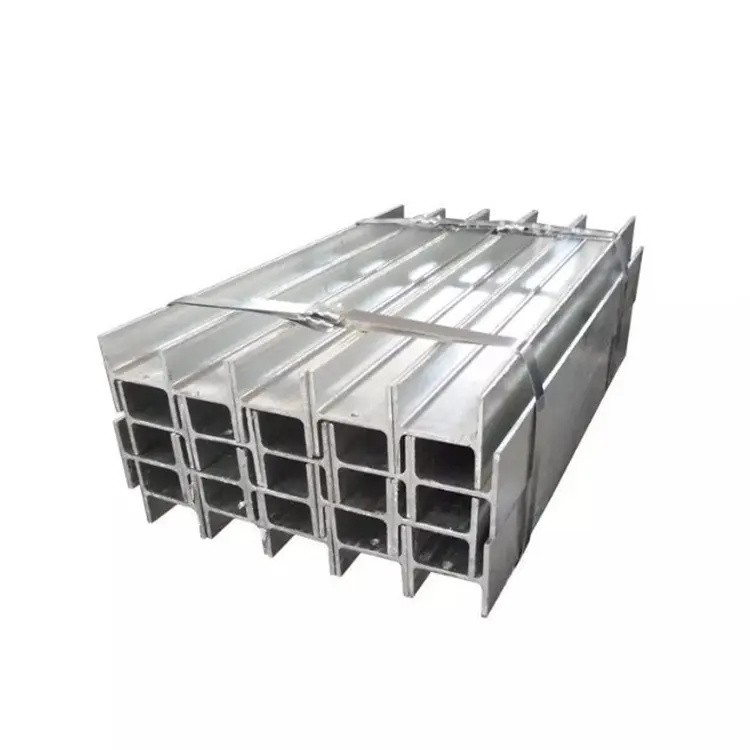

* Q1: How are H-beams utilized in "floating floor" constructions for acoustic isolation?
* A1: H-beams form the structural grid for floating floors: Beams are mounted on resilient isolators (neoprene pads, steel springs) atop the structural slab, decoupling the floating floor from building vibrations. A concrete slab is poured over the beams, often on acoustic underlayment. The mass of the concrete slab and the stiffness of the H-beams determine the floor's resonant frequency. The resilient isolators attenuate structure-borne sound (footfall, machinery vibration) by introducing a low-frequency spring-mass system. This prevents vibrations in the building structure from transmitting into the sensitive floating floor space above, crucial for recording studios, labs, cinemas, and critical healthcare areas. Beam depth and spacing are optimized for required stiffness and mass.
* Q2: What is "constrained layer damping" (CLD) and how is it applied to H-beams?
* A2: Constrained Layer Damping (CLD) is a technique to reduce vibration in H-beams. A viscoelastic damping material layer (like polymer sheets or mastic) is bonded directly to the beam's web or flanges. A stiff constraining layer (typically thin steel plate) is then bonded firmly on top of the damping layer. When the beam vibrates, shear deformation occurs within the viscoelastic layer, converting vibrational energy into heat. The constraining layer maximizes this shear strain. CLD is highly effective at damping specific mid-to-high frequency vibrations that cause noise radiation. It's applied to existing beams to mitigate problematic vibrations or specified during fabrication for sensitive applications like broadcast studios or precision manufacturing floors.
* Q3: How do tuned vibration absorbers (TVAs) mitigate specific vibration frequencies in H-beam structures?
* A3: Tuned Vibration Absorbers (TVAs) target troublesome resonant frequencies. A TVA consists of a mass, spring (often elastomeric), and damper tuned precisely to the H-beam's problematic natural frequency. It's attached directly to the beam at the point of maximum modal displacement. When the beam vibrates at the target frequency, the TVA mass resonates out-of-phase. Energy is dissipated through the TVA's damping mechanism and transferred into the absorber, drastically reducing the vibration amplitude of the primary beam at that specific frequency. TVAs are highly effective for addressing discrete frequency problems like those from rotating machinery mounted on H-beam supports. Design requires precise modal analysis.
* Q4: What are the acoustic considerations when designing penetrations through H-beam webs for services?
* A4: Penetrations (holes for pipes, ducts, conduits) through H-beam webs create flanking paths for sound. Large or clustered holes significantly reduce the beam's web area, impacting both structural strength and its ability to block airborne sound transmission (Sound Transmission Class - STC). Holes must be sleeved with acoustically sealed collars to prevent sound leakage through the gap. Maintaining minimum edge distances between holes and the flange/web junction is crucial for structural integrity. Acoustic putty pads or sealant seal gaps around penetrations. The location and size of penetrations require coordination between structural, MEP, and acoustic engineers to balance structural requirements, service routing, and acoustic performance targets. Acoustic modeling may be needed for critical assemblies.
* Q5: How does the mass and stiffness of H-beams influence the Sound Transmission Class (STC) of walls or floors they support?
* Q5: H-beams act as structural elements and potential sound bridges. Their mass contributes positively to the overall mass law – heavier assemblies generally have higher STC ratings. However, if beams directly connect separating walls/floors to the main structure without acoustic breaks (resilient channels, isolation clips), they create flanking paths, drastically reducing STC. Beam stiffness influences the critical frequency where coincidence dip occurs (reduced STC). Stiffer beams have lower critical frequencies, potentially within the speech range, worsening performance. Using deeper, heavier beams can improve mass but requires careful isolation. Acoustically optimized designs often use discontinuous construction or resiliently mounted furring attached to the beams to break the sound path while leveraging the beam's structural capacity.
