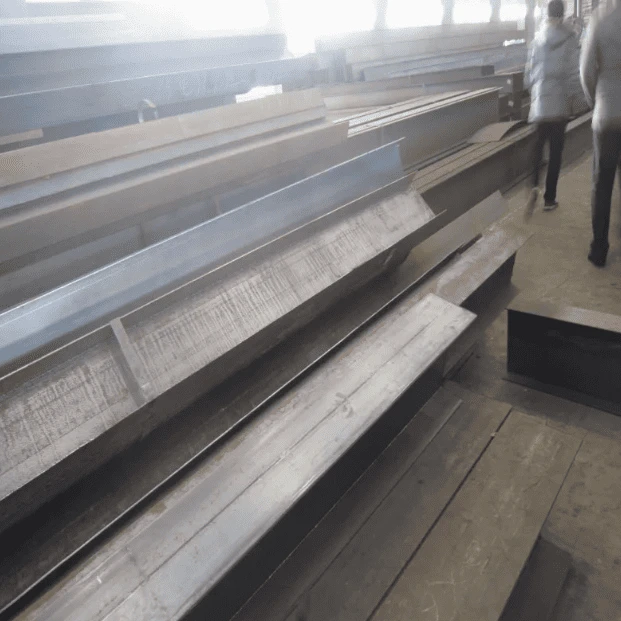

S355JR h section steel is currently the most widely used low-alloy high-strength structural steel under the European standard EN 10025-2, applied in construction, bridges, and heavy machinery structures. S355JR Structural Steel Beam is renowned for its excellent bending resistance, well-proportioned cross-section, and good weldability.
Chemical Composition of S355JR H Beam(EN 10025-2)
| Element | C (%) Max | Si (%) | Mn (%) | P (%) Max | S (%) Max | Nb (%) | V (%) | Ti (%) |
|---|---|---|---|---|---|---|---|---|
| S355JR | 0.20 | 0.55 | 1.60 | 0.035 | 0.035 | 0.05 | 0.10 | 0.05 |
Note: Minor elements may vary slightly depending on manufacturer.
Mechanical Properties of S355JR H Beam(EN 10025-2)
| Property | Value / Condition |
|---|---|
| Yield Strength (ReH) | ≥ 355 MPa (for thickness ≤ 16 mm) |
| Tensile Strength (Rm) | 470–630 MPa |
| Elongation (A%) | ≥ 20% |
| Impact Toughness (Charpy V) | ≥ 27 J at 20°C |
| Hardness (Brinell HB) | 145–190 |
| Weldability | Excellent |
| Formability / Machinability | Good |
Difference Between S355JR HEA and HEB
S355JR H-beams are classified into HEA, HEB, and HEM types based on thickness and load-bearing capacity. HEA is a light H-beam with flanges and lower weight, suitable for structures with moderate load requirements.
HEB is a standard H-beam with thicker, offering higher load-bearing capacity, making it ideal for medium to heavy buildings and industrial structures. HEA is more economical for transportation and installation, while HEB provides greater strength and structural safety.
Application Examples of HEA and HEB S355JR H Beam

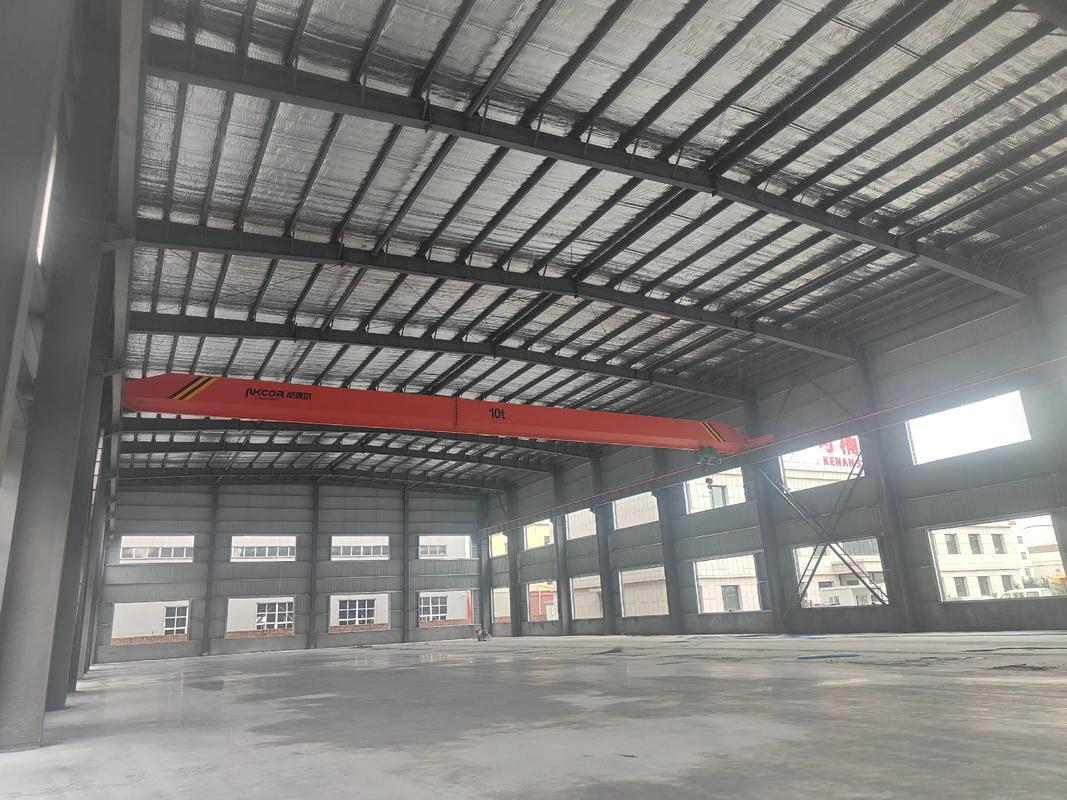

S355JR HEA: In residential building projects or small industrial factories, we typically use S355JR HEA beams for light to medium steel structures. For example, a mid-sized warehouse project may require around 120–150 tons of HEA beams. Due to their lighter weight, these beams are easier to transport and install, making them ideal for projects with moderate load requirements.
S355JR HEB: For large-scale commercial buildings, heavy industrial facilities, or major bridge constructions, we use S355JR HEB beams. In a large bridge project or a high-capacity crane structure, a single project may require 300–500 tons of HEB beams. Their thicker flanges allow for greater load-bearing capacity, ensuring the safety and stability of heavy-duty structures.
Price Comparison (Reference, 2026, USD/ton, Ex-Works China)
| Type | Price Range (USD/ton) |
|---|---|
| S355JR HEA | 850 – 950 |
| S355JR HEB | 900 – 1,050 |
If you need S355JR, please contact us to get the last quote
HEA Series chart
| Designation | Height h (mm) | Width b (mm) | Web Thk. t1 (mm) | Flange Thk. t2 (mm) | Theoretical Weight (kg/m) |
| HEA 100 | 96 | 100 | 5.0 | 8.0 | 16.7 |
| HEA 120 | 114 | 120 | 5.0 | 8.0 | 19.9 |
| HEA 140 | 133 | 140 | 5.5 | 8.5 | 24.7 |
| HEA 160 | 152 | 160 | 6.0 | 9.0 | 30.4 |
| HEA 180 | 171 | 180 | 6.0 | 9.5 | 35.5 |
| HEA 200 | 190 | 200 | 6.5 | 10.0 | 42.3 |
| HEA 220 | 210 | 220 | 7.0 | 11.0 | 50.5 |
| HEA 240 | 230 | 240 | 7.5 | 12.0 | 60.3 |
| HEA 260 | 250 | 260 | 7.5 | 12.5 | 68.2 |
| HEA 280 | 270 | 280 | 8.0 | 13.0 | 76.4 |
| HEA 300 | 290 | 300 | 8.5 | 14.0 | 88.3 |
| HEA 320 | 310 | 300 | 9.0 | 15.5 | 97.6 |
| HEA 340 | 330 | 300 | 9.5 | 16.5 | 105.0 |
| HEA 360 | 350 | 300 | 10.0 | 17.5 | 112.0 |
| HEA 400 | 390 | 300 | 11.0 | 19.0 | 125.0 |
HEB Series chart
| Designation | Height h (mm) | Width b (mm) | Web Thk. t1 (mm) | Flange Thk. t2 (mm) | Theoretical Weight (kg/m) |
| HEB 100 | 100 | 100 | 6.0 | 10.0 | 20.4 |
| HEB 120 | 120 | 120 | 6.5 | 11.0 | 26.7 |
| HEB 140 | 140 | 140 | 7.0 | 12.0 | 33.7 |
| HEB 160 | 160 | 160 | 8.0 | 13.0 | 42.6 |
| HEB 180 | 180 | 180 | 8.5 | 14.0 | 51.3 |
| HEB 200 | 200 | 200 | 9.0 | 15.0 | 61.3 |
| HEB 220 | 220 | 220 | 9.5 | 16.0 | 71.5 |
| HEB 240 | 240 | 240 | 10.0 | 17.0 | 83.2 |
| HEB 260 | 260 | 260 | 10.0 | 17.5 | 93.0 |
| HEB 280 | 280 | 280 | 10.5 | 18.0 | 103.0 |
| HEB 300 | 300 | 300 | 11.0 | 19.0 | 117.0 |
| HEB 320 | 320 | 300 | 11.5 | 20.5 | 127.0 |
| HEB 340 | 340 | 300 | 12.0 | 21.5 | 134.0 |
| HEB 360 | 360 | 300 | 12.5 | 22.5 | 142.0 |
| HEB 400 | 400 | 300 | 13.5 |
Each batch of steel is supplied with an original MTC (Mill Test Certificate) complying with EN 10204 3.1, which provides detailed information on the chemical composition (including carbon equivalent, CEV) and mechanical properties (yield strength, tensile strength, and impact energy), ensuring 100% compliance with the European standard EN 10025-2.
What is a steel grade S355JR equivalent to?
S355JR equivalent grades have very close chemical composition and mechanical properties to that of S355JR steel. Both the S355JR equivalent grades Q345B, A572 Gr 50, ST52-3, SM490B and S355JR steel are main products of Gnee steel.
Is S355 equivalent to A36?
S355JR and A36 are not directly equivalent, as S355JR has higher strength (yield 355 MPa vs. A36's 250 MPa) and guaranteed impact toughness, making it closer to ASTM A572 Grade 50 than A36. A36 is often equivalent to S235JR (yield 235 MPa), a lower EN grade.
What is steel grade S355JR?
Steel grade S355JR is used to manufacture hot-rolled flat and long products, which are subsequently used when producing steel building structures. Classification: Non-alloy structural steel. Products: Flat and long products, semi-finished products.
What does JR mean in S355JR?
The "JR" designation means that the material has been subjected to a Charpy V-notch impact test at 208℃ and has a minimum impact strength of 27 Joules.
What material is S335JR?
S335JR - an useful structural grade steel with a minimum yield strength of 355 N/mm².
