SS400 channel steel is commonly supplied according to JIS standard dimensions, offering flexible thickness options and accurate theoretical weight control for structural design.

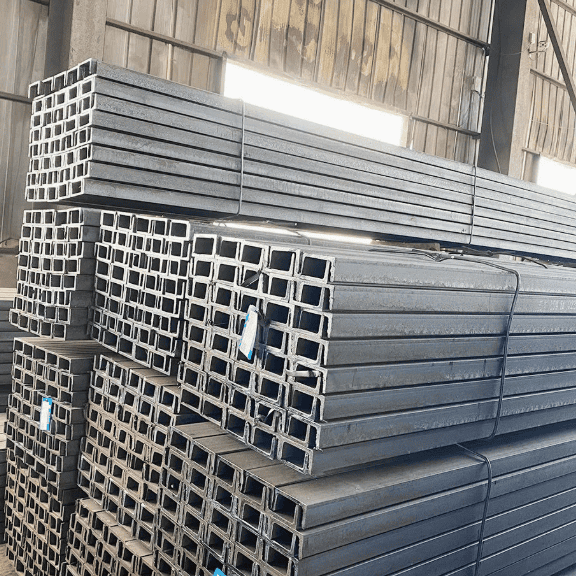

SS400 channel steel
JIS Channel Steel Size & Weight Table
| Dimensions (mm) | Unit Weight (kg/m) | Dimensions (mm) | Unit Weight (kg/m) |
|---|---|---|---|
| 50×25×(3.0–5.0)×6.0 | 2.37 – 3.46 | 125×65×5.5×8.0 | 12.91 |
| 75×40×3.8×7.0 | 5.30 | 125×65×6.0×8.0 | 13.40 |
| 75×40×4.0×7.0 | 5.60 | 150×75×5.5×7.3 | 14.66 |
| 75×40×4.5×7.0 | 5.85 | 150×75×5.7×10.0 | 16.71 |
| 75×40×5.0×7.0 | 6.92 | 150×75×6.0×10.0 | 17.90 |
| 100×50×3.8×6.0 | 7.30 | 150×75×6.5×10.0 | 18.60 |
| 100×50×4.2×6.0 | 8.03 | 150×75×9.0×12.5 | 24.00 |
| 100×50×4.5×7.5 | 8.97 | 200×80×7.5×11.0 | 24.60 |
| 100×50×5.0×7.5 | 9.36 | 200×90×8.0×13.5 | 30.30 |
| 125×65×5.2×6.8 | 11.66 | 250×90×9.0×13.0 | 34.60 |
| 125×65×5.3×6.8 | 12.17 | 300×90×9.0×13.0 | 38.10 |
All JIS SS400 channels are hot rolled and suitable for cutting, welding, and fabrication.
GB Standard Channel Steel Size Comparison
For projects requiring Chinese GB standard channels, GNEE also supplies equivalent sizes with clear theory weight reference.
GB Channel Steel Size & Theory Weight
| Size | h (mm) | b (mm) | d (mm) | Theory Weight (kg/m) |
|---|---|---|---|---|
| 5# | 50 | 37 | 4.5 | 5.438 |
| 6.3# | 63 | 40 | 4.8 | 6.634 |
| 8# | 80 | 43 | 5.0 | 8.045 |
| 10# | 100 | 48 | 5.3 | 10.007 |
| 12# | 120 | 53 | 5.5 | 12.059 |
| 14#a | 140 | 58 | 6.0 | 14.535 |
| 16#b | 160 | 65 | 8.5 | 19.752 |
| 18#b | 180 | 70 | 9.0 | 23.000 |
| 20#b | 200 | 75 | 9.0 | 25.777 |
| 25#b | 250 | 80 | 9.0 | 31.335 |
| 30#b | 300 | 87 | 9.5 | 39.173 |
| 40#b | 400 | 102 | 12.5 | 65.208 |
GB channels are widely used for domestic projects and export fabrication orders.
EN Standard UPN Channel Steel Sizes
For European projects, EN standard UPN channel steel is often specified due to its universal compatibility.
EN UPN Channel Steel Dimensions
| Size | Dimensions (mm) | Unit Weight (kg/m) |
|---|---|---|
| UPN50 | 50×25×5×6.0 | 3.86 |
| UPN80 | 80×45×6×8.0 | 8.65 |
| UPN100 | 100×50×6×8.5 | 10.60 |
| UPN120 | 120×55×7×9.0 | 13.40 |
| UPN140 | 140×60×7×10.0 | 16.00 |
| UPN160 | 160×65×7.5×10.5 | 18.80 |
| UPN180 | 180×70×8×11.0 | 22.00 |
| UPN200 | 200×75×8.5×11.5 | 25.30 |
UPN SS400 channels are commonly used in steel frames, platforms, and industrial buildings.
European Economical UPE Channel Steel Specifications
UPE channels feature parallel flanges, offering improved load distribution and easier bolting.
UPE Channel Steel Size & Weight
| Size | Dimensions (mm) | Unit Weight (kg/m) |
|---|---|---|
| UPE80 | 80×40×4.5×7.4 | 7.05 |
| UPE100 | 100×46×4.5×7.6 | 8.59 |
| UPE120 | 120×52×4.8×7.8 | 10.40 |
| UPE140 | 140×58×4.9×8.1 | 12.30 |
| UPE160 | 160×64×5.0×8.4 | 14.20 |
| UPE180 | 180×70×5.1×8.7 | 16.30 |
| UPE200 | 200×76×5.2×9.0 | 18.40 |
Why Choose GNEE for SS400 Channel Steel Supply
- Full coverage of JIS / GB / EN / UPN / UPE standards
- Large ready stock for fast shipment
- Accurate theoretical weight control
- Max stock length up to 12 meters
- Fixed-length cutting supported

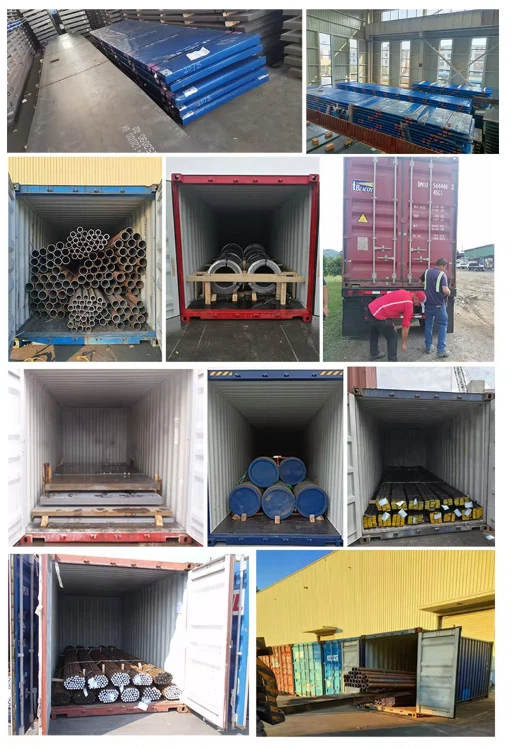

- Export-grade packing for sea freight
Whether you need UPN or UPE SS400 channel steel, GNEE provides stable quality, sufficient inventory, and professional export service. As a trusted manufacturer and stockist, we help reduce your procurement time and project risk.
Contact us for the latest JIS G 3192 SS400 channel steel
What is SS400 grade material?
SS400 is a hot rolled steel grade belonging to the JIS G 3101 standard. SS400 Plates are designed with a superior concentration of ferrous material with small constituents of silicon, carbon, sulfur, and phosphorous.
Is SS400 carbon steel or stainless steel?
JIS G3101 SS400 is one of the most common carbon structural steel grade, other grades of JIS G3101 are ss330, ss490, ss540.
Is SS400 equivalent to mild steel?
Key Insight: SS400 prioritizes tensile strength over elongation compared to mild steel. Strength vs. Ductility: SS400 has a higher tensile strength (400+ MPa) but slightly lower ductility than mild steel. Regional Use: SS400 aligns with Japanese standards, while ASTM A36 (USA) or S235 (EU) are regional equivalents.
What does SS400 stand for?
SS400 steel is a low-carbon structural steel defined under the JIS G3101 standard, primarily used in general construction and engineering applications. The "SS" stands for "Steel Structure," and the "400" indicates a minimum tensile strength of 400 MPa, making it suitable for non-critical load-bearing components.
What is equivalent to SS400?
Equivalent materials to the widely used SS400 include ASTM A36 and EN S275JR, both of which exhibit similar mechanical properties and are often utilized in similar applications.
