Hot Rolled A36 Equal and Unequal Galvanized Steel Angles

Sep 16, 2025

Leave a message

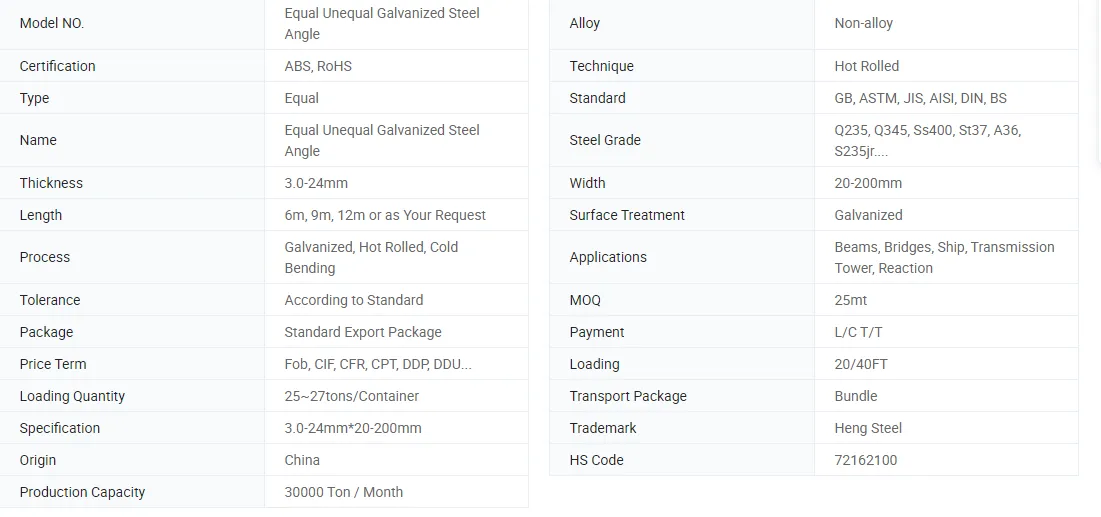

Product Overview

Hot rolled galvanized steel angles are L-shaped structural sections used for bracing, framing, racking and support work in architectural and engineering structures. This range covers ASTM A36 and Q235B carbon steel, rolled into equal leg and unequal leg profiles and then hot-dip galvanized to protect the finished member in outdoor and humid service. Typical uses include beams and bridges, ship structures, transmission and reaction towers, lifting and transport machinery, industrial furnaces, container frames and warehouse shelving.

The product is a plain carbon structural angle. Stainless steel grades are not part of this range, which is rolled from carbon steel to ASTM A36/A36M, JIS G3101 SS400, GB/T 700 Q235B and EN 10025-2 S235JR, with dimensions taken from GB/T 706 and GB/T 9787.

Grades and Mechanical Properties

Grade Reference standard Minimum yield strength Tensile strength
ASTM A36 ASTM A36/A36M 250 MPa 400-550 MPa
Q235B GB/T 700 235 MPa 370-500 MPa
S235JR EN 10025-2 235 MPa 360-510 MPa
SS400 JIS G3101 245 MPa 400-510 MPa

All four grades are weldable with conventional processes. The 90 degree leg geometry makes the angle easy to bolt or weld against a vertical face to form shelves, rails and bracing, and the rolled surface accepts both galvanizing and paint systems.

Equal and Unequal Angle Size Range

Type Dimensions Thickness Theoretical mass
Equal angle 20 × 20 mm to 200 × 200 mm 3-24 mm 0.885-71.1 kg/m
Unequal angle Long leg 25-200 mm, short leg 16-125 mm 3-18 mm 1.687-43.6 kg/m
Standard length 6 m, 9 m or 12 m - -

Representative equal angle sizes and their theoretical mass are listed below; values are calculated from nominal dimensions in the hot rolled angle tables.

Size (mm) Thickness (mm) Mass (kg/m)
20 × 20 3 0.885
30 × 30 4 1.78
40 × 40 4 2.42
50 × 50 5 3.77
63 × 63 6 5.72
75 × 75 8 8.92
90 × 90 8 10.9
100 × 100 10 15.0
120 × 120 12 21.6
150 × 150 15 33.7
200 × 200 24 72.0

Galvanizing and Surface Protection

Hot-dip galvanizing to ISO 1461 or ASTM A123 immerses the finished angle in molten zinc, forming a metallurgically bonded zinc-iron coating. For steel 6 mm thick and above, ISO 1461 requires a minimum average coating thickness of 70 micrometres and a minimum local thickness of 55 micrometres. Unlike electroplated zinc, the hot-dip coating is thick and abrasion resistant, which suits outdoor bracing, towers and racking that are handled and installed on site.

Black finish: as-rolled surface with mill scale for painting or further processing.

Hot-dip galvanized: full corrosion protection of legs, cut ends and punched holes.

Cut and punched: legs cut to length and holes punched or drilled before coating so every face stays protected.

Fabrication, Inspection and Packing

Angles can be cut to length, punched, drilled, bent and welded to drawing before or after galvanizing. Each heat is checked for chemical composition and each batch for tensile and yield properties; dimensional inspection covers leg length, leg thickness, the squareness of the 90 degree corner and overall straightness. Sections are packed in standard seaworthy bundles, secured with steel strapping and marked with heat number, grade and size for traceability.

FAQ

Q: What is a galvanized equal angle?
It is a hot rolled carbon steel L-section with two legs of equal length at 90 degrees, coated with zinc so that it can be bolted or welded to a vertical face as a shelf support, frame member or brace without corroding in outdoor service.

Q: What is the difference between equal and unequal angle?
An equal angle has two legs of the same length, such as 75 × 75 mm, while an unequal angle has legs of different lengths, such as a 100 mm long leg with a 75 mm short leg, which suits edge supports and asymmetric connections.

Q: Which grades are supplied in this range?
The range covers ASTM A36, GB/T 700 Q235B, EN 10025-2 S235JR and JIS G3101 SS400 carbon steel. Stainless steel designations are outside this product range.

Q: What size and thickness range is available?
Equal angles run from 20 × 20 mm to 200 × 200 mm with thicknesses of 3-24 mm, and unequal angles from 25 × 16 mm to 200 × 125 mm with thicknesses of 3-18 mm, in 6 m, 9 m and 12 m lengths.

Q: How does hot-dip galvanizing compare with electroplated zinc?
Hot-dip galvanizing forms a thicker, metallurgically bonded coating that resists abrasion and mechanical damage far better than an electroplated layer, which is why it is preferred for structural angles used outdoors.

Q: Are the listed masses exact?
No. The masses quoted are theoretical values calculated from nominal leg dimensions and thickness, and actual delivery mass is confirmed by weighing the bundle during final inspection.
