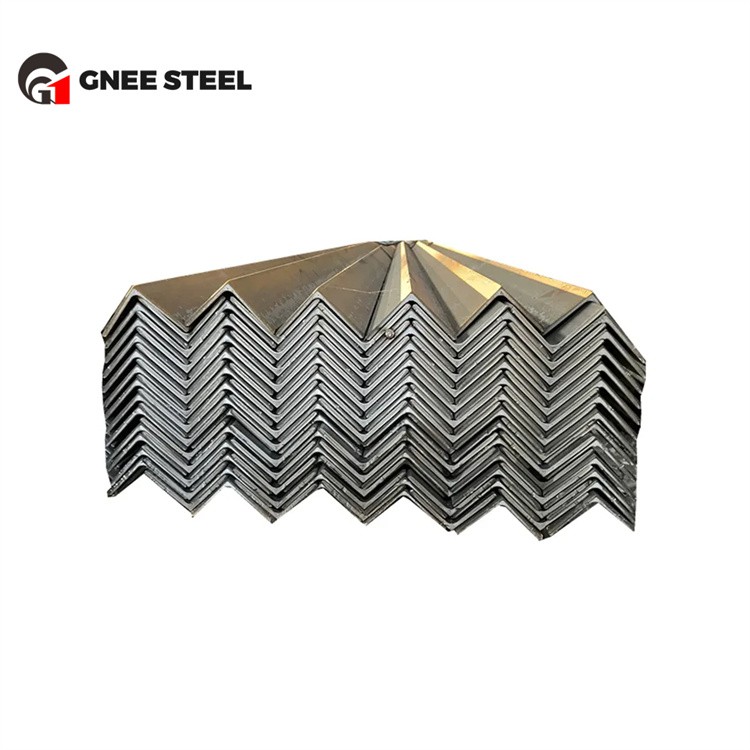

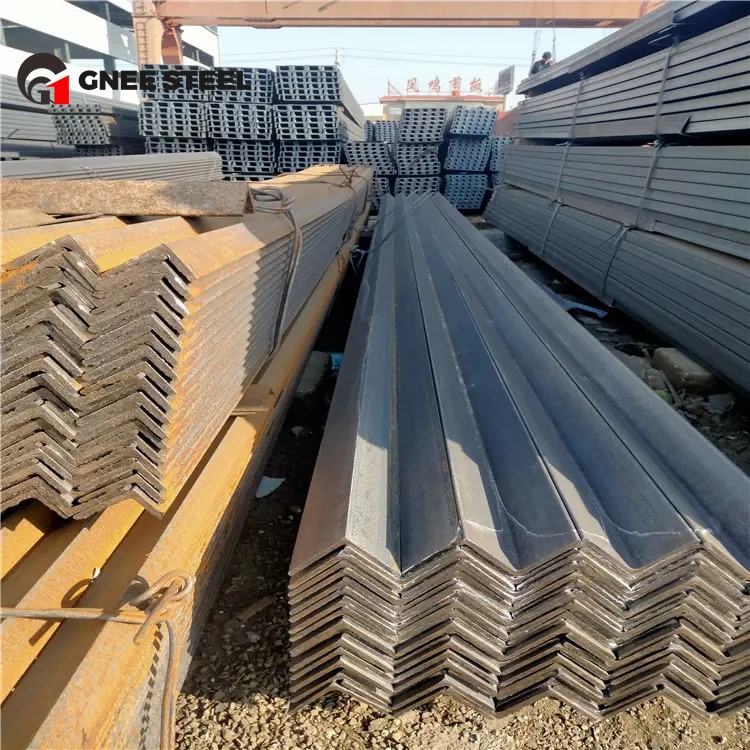

S275JR ASTM Standard Angle Bar Steel is a high-performance structural steel product engineered to comply with both European EN 10025-2 and ASTM standards, combining the superior mechanical properties of S275JR grade with the global compatibility of ASTM specifications. Characterized by its classic L-shaped cross-section (available in equal and unequal leg configurations), this angle bar is crafted from premium S275JR non-alloy structural steel, delivering exceptional strength, toughness, and workability. It serves as a versatile and reliable structural component for a wide range of industrial, construction, and engineering applications worldwide, particularly where medium to heavy load-bearing capacity is required.
The core performance of this angle bar is defined by its S275JR steel grade, a European standard non-alloy structural steel that is commercially and functionally equivalent to ASTM A36, with slight advantages in strength and toughness. S275JR features a strictly controlled chemical composition: carbon content ≤0.21%, manganese content ranging from 1.00% to 1.50%, and phosphorus and sulfur content each ≤0.035%. This optimized composition ensures the material exhibits balanced mechanical properties, including a minimum yield strength of 275 MPa (for thickness ≤16mm, decreasing slightly with increasing thickness), a tensile strength range of 410-560 MPa, and a minimum elongation of 23% (for thickness ≤40mm). A key distinguishing feature of S275JR is its guaranteed notch impact toughness of ≥27 J at 20℃, a requirement not default in ASTM A36, ensuring reliable performance under static and moderate dynamic loads.
Compliance with ASTM standards is a critical highlight of this angle bar, ensuring seamless compatibility with global engineering projects. While S275JR is originally a European standard grade, it is widely recognized as a functional equivalent to ASTM A36 for most general structural applications, with the advantage of being approximately 10% stronger in its nominal thickness range. The product adheres to ASTM A6/A6M dimensional tolerances for structural shapes, ensuring consistent leg lengths, uniform thickness, and precise right-angle profiles that facilitate easy assembly with other ASTM-standard structural components.
The L-shaped cross-section of this S275JR angle bar is specifically designed for efficient force distribution and structural stability. Available in both equal-side and unequal-side configurations, it adapts to diverse application needs: equal-side angle bars feature identical leg lengths for symmetrical load transmission, making them ideal for building frames, roof trusses, and vertical supports; unequal-side angle bars have two legs of different lengths, offering flexible adaptability for irregular structural joints, wall brackets, and asymmetric load scenarios. The uniform thickness of the legs ensures consistent rigidity and load-bearing capacity across the entire length of the bar.
Manufactured using advanced hot-rolling technology, the S275JR ASTM Standard Angle Bar Steel undergoes a precise production process to guarantee consistent quality and performance. Steel billets are heated to temperatures above 1000°C to soften the material, then subjected to precision rolling to form the L-shaped cross-section. This hot-rolling process refines the internal grain structure, eliminates inherent defects such as pores, inclusions, and microcracks, and enhances the material's ductility and toughness-ensuring uniform mechanical performance and dimensional accuracy across each batch. The process also ensures a smooth surface finish, reducing the need for additional processing before installation.
Exceptional workability is another key attribute of this angle bar, making it highly suitable for on-site fabrication and customization. S275JR's low carbon equivalent (typically ≤0.36) ensures superior weldability compared to ASTM A36, allowing seamless fusion with other structural components using standard welding methods (arc welding, MIG welding, TIG welding) without the need for pre-heating for most sections. Additionally, it can be easily cut, drilled, bent, and punched using conventional industrial equipment, adapting to customized project designs without compromising structural integrity.

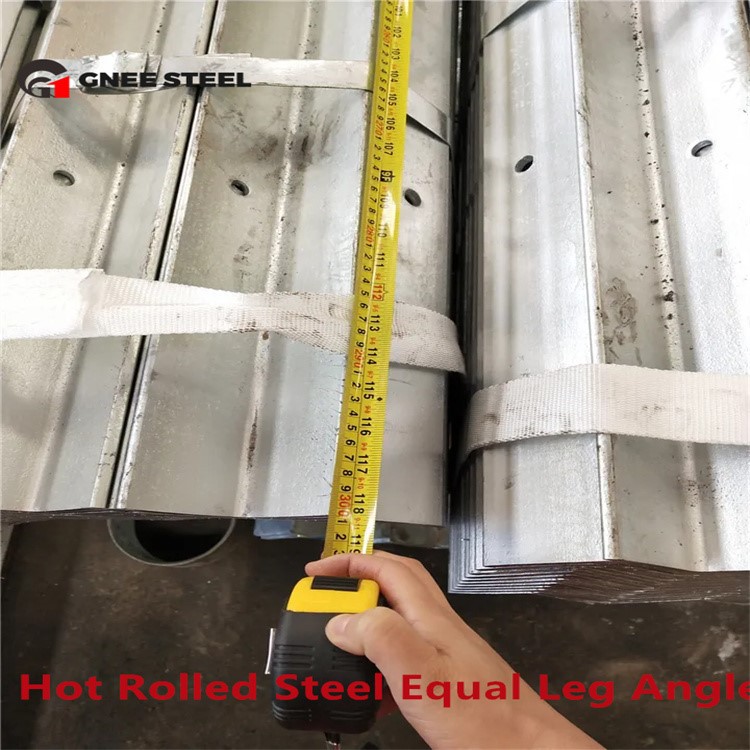

In terms of specifications, the S275JR ASTM Standard Angle Bar Steel offers a comprehensive range of dimensions to accommodate diverse application needs. Leg lengths typically range from 20mm to 200mm, with thicknesses spanning 3mm to 20mm, and standard lengths of 6m, 9m, and 12m-with custom lengths available for bulk orders to meet project-specific requirements. All dimensions strictly adhere to ASTM A6/A6M tolerances, ensuring compatibility with global engineering standards and seamless integration with other structural components.
This angle bar is widely applied across multiple industries due to its reliable performance, ASTM compatibility, and versatile design. In construction engineering, it is used for building frames, bridge bracings, roof trusses, and scaffolding. In industrial fabrication, it serves as machinery supports, equipment bases, and factory frameworks. It also finds applications in infrastructure projects, such as transmission towers, road guardrails, and offshore platforms, as well as in warehousing and heavy machinery manufacturing. For outdoor or humid environments, the angle bar can be further treated with hot-dip galvanization, painting, or shot blasting to enhance corrosion resistance, extending its service life.
Each batch of S275JR ASTM Standard Angle Bar Steel undergoes rigorous quality control procedures to ensure compliance with EN 10025-2 and ASTM standards. Inspections include chemical composition analysis, mechanical property testing (yield strength, tensile strength, impact toughness), dimensional accuracy verification, and ultrasonic testing in accordance with ASTM A435 and A577 standards. Mill test certificates in EN 10204 format 3.1/3.2 are provided to confirm product quality, ensuring reliability for critical and non-critical applications alike. As a high-performance, ASTM-compatible structural material, it embodies the perfect balance of strength, workability, and versatility, making it a trusted choice for modern global engineering projects.
