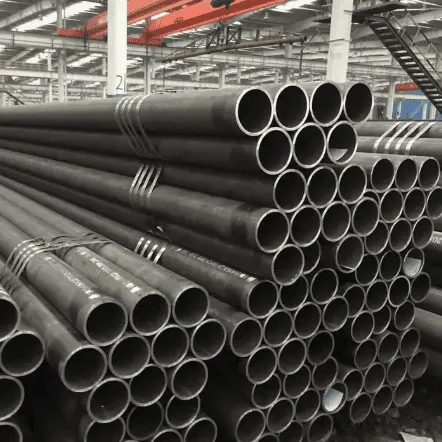

Q355 steel pipe is a high-strength, low-alloy structural steel pipe manufactured according to the Chinese standard GB/T 1591.
With a minimum yield strength of 355 MPa, Q355 steel pipe offers superior load-bearing capacity, excellent weldability, good toughness, and reliable performance under low temperatures. It is widely used in construction, machinery, bridges, steel structures, oil & gas, and heavy engineering applications.
1. What Is Q355 Steel Pipe?
Q355 steel pipe is produced from Q355 grade steel, which features a balanced composition of carbon, manganese, silicon, and micro-alloying elements such as Cr, Ni, and Cu.
This provides greater strength than Q345 steel while maintaining good ductility and weldability.
Q355 steel pipe is available in:
Seamless Q355 steel pipe
Welded Q355 steel pipe
Hot-rolled / cold-drawn Q355 steel pipe
Structural and mechanical Q355 steel hollow sections
2. Grades of Q355 Steel Pipe
Q355 steel pipe includes five sub-grades with different impact performance:
| Grade | Impact Temperature | Application |
|---|---|---|
| Q355A | No impact test | General structural use |
| Q355B | +20 °C | Buildings, machinery |
| Q355C | 0 °C | Medium temperature environments |
| Q355D | –20 °C | Low-temperature or outdoor structures |
| Q355E | –40 °C | Extreme cold regions or offshore projects |
3. Chemical Composition (Typical)
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.20 |
| Silicon (Si) | ≤ 0.50 |
| Manganese (Mn) | 1.0–1.6 |
| Phosphorus (P) | ≤ 0.030 |
| Sulfur (S) | ≤ 0.030 |
| Cr / Ni / Cu | Micro-alloy additions |
Note: Composition varies slightly among Q355A/B/C/D/E.
4. Mechanical Properties
| Property | Value |
|---|---|
| Yield Strength | ≥ 355 MPa |
| Tensile Strength | 470–630 MPa |
| Elongation | 20% (min) |
| Impact Toughness | Varies by grade (20°C to –40°C) |
| Weldability | Excellent |
| Formability | Good |
Q355 steel pipe provides strong performance in both high-load structural areas and low-temperature applications.
5. Equivalent Materials
Although not exactly identical, the closest international equivalents are:
| Standard | Equivalent Steel | Notes |
|---|---|---|
| ASTM | A572 Grade 50 Pipe | Closest match to Q355 in strength |
| EN | S355JR / S355J0 / S355J2 Pipe | Very similar mechanical properties |
| JIS | SM490B / SM490C Pipe | Equivalent strength and toughness |
6. Applications of Q355 Steel Pipe
Q355 steel pipe is commonly used in:
Structural Engineering
Building columns & beams
Heavy steel structures
Industrial framing
Construction & Infrastructure
Bridges
Highway guard rails
Scaffolding and support pipes
Machinery & Equipment
Heavy machinery frameworks
Lifting equipment
Engineering machinery arms
Energy & Transportation
Oil and gas transmission
Offshore structures
Wind power towers
Q355's high strength and impact resistance make it suitable for demanding structural and mechanical environments.
