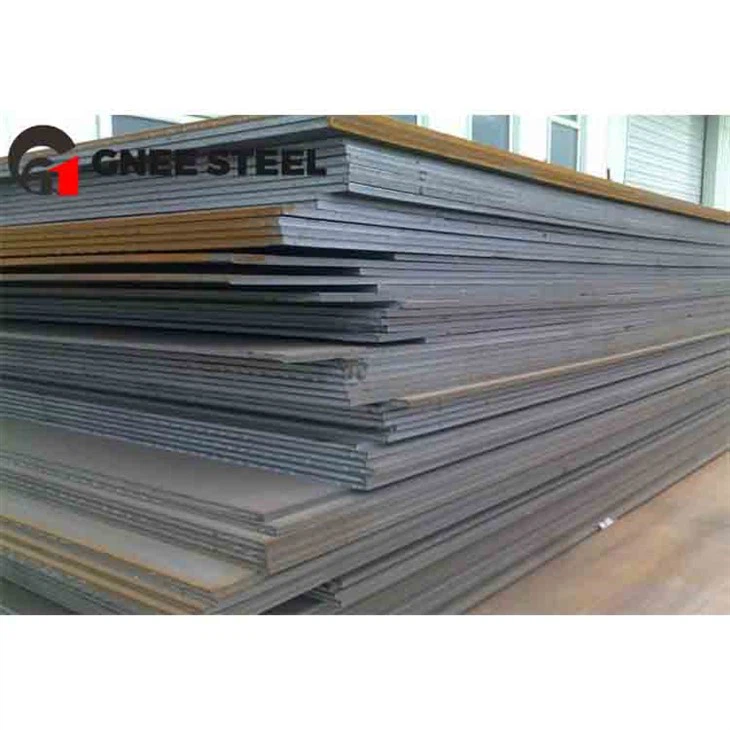

A302 Boiler Plate
Boiler Steel Plate Products Description
ASTM A302 boiler vessel plate is manganese-molybdenum and manganese-molybdenum-nickel alloy steel plate for pressure vessels.ASTM A302 boiler vessel steel is available in four grades, namely, Grade A, Grade B, Grade C, and Grade D. The grades A and D contain nickel as a chemical component. Among them, Grade C and Grade D contain the chemical composition nickel. Under the same thickness condition, the yield strength and tensile strength of ASTM A302 steel boiler plate of Grade B and Grade C are the same, but the elongation of Grade C plate is higher.
The properties of ASTM A302 pressure vessel plate are based on its manganese-molybdenum-nickel composition.The thickness of ASTM A302 boiler steel is limited only by the ability of the chemical composition to meet the specified mechanical property requirements.
ASTM A302 pressure vessel steel plate is widely used in the fabrication of pressure vessels, boilers, tanks and heat exchangers in oil and gas projects.
steel boiler plate
Pressure Vessel Plate Product Details
Chemical composition of ASTM A302 boiler vessel plates:
| Element | Thickness (mm) | Class A | Class B | Class C | Class D |
| C ≤ | 25~50 | 0.23 | 0.23 | 0.23 | 0.23 |
| >50 | 0.25 | 0.25 | 0.25 | 0.25 | |
| Mn ≤ | - | 0.87~1.41 | 1.07~1.62 | 1.07~1.62 | 1.07~1.62 |
| S ≤ | - | 0.04 | 0.035 | 0.035 | 0.035 |
| Si | - | 0.13~0.45 | 0.13~0.45 | 0.13~0.45 | 0.13~0.45 |
| Mo | - | 0.41~0.64 | 0.41~0.64 | 0.41~0.64 | 0.41~0.64 |
| Ni | - | - | - | 0.37~0.73 | 0.67~1.03 |
Mechanical properties of ASTM A302 boiler vessel plates:
| ASTM A302 | Yield strength | Tensile strength | Elongation |
| (Mpa) | Mpa | (%) | |
| Class A | 310 | 515-655 | 15 |
| Class B | 345 | 550-690 | 15 |
| Class C | 345 | 550-690 | 17 |
| Class D | 345 | 550-690 | 17 |
vessel steel plate
GNEE Group Receives Visiting Customers
Strict quality control system and perfect after-sales service system are always our primary concern, which can guarantee and track the quality of our products from raw material purchasing, production process, finished products and after-sales service. We are committed to providing our customers with high quality products and services to ensure your satisfaction.
astm pressure vessel
If you have more needs and questions about A302 boiler plate, please contact us!
