4130 Round Bar Stock
AISI 4130 round steel is defined as a low alloy steel containing 1% Cr and 0.2% Mo as strengthening alloying elements. It offers good strength, toughness, corrosion resistance and machinability. The lower carbon content of 0.28-0.33% compared to AISI 4140 makes it easy to weld.AISI 4130 is normally supplied in NMened and tempered condition with a NMness range of 207-235 HB.
4130 Round Stock Steel Chemical Composition
| Carbon | 0.28-0.33 |
| Manganese | 0.40-0.60 |
| Phosphorus (max) | 0.035 |
| Sulfur (max) | 0.040 |
| Silicon | 0.15-0.35 |
| Chromium | 0.80-1.10 |
| Molybdenum | 0.15-0.25 |
4130 Round Bar Stock Mechanical Property
| Tensile strength (psi) | 85,000 - 95,000 |
| Yield strength (psi) | 55,000 - 65,000 |
| Elongation in 2" (%) | 25 - 35 |
| Reduction of area (%) | 45 - 55 |
| Brinell Hardness (BHN) | 180 - 210 |
4130 Round Metal Bar Products Details
The forging temperature of AISI 4130 round steel should be carried out between 950°C and 1200°C. The lower the temperature at the end of forging, the finer the grain. Keep the appropriate time before forging to make the steel unevenly heated, but do not forge below 950 ℃.AISI 4130 steel should be cooled as slowly as possible after forging.
AISI 4130 round steel after forging can be annealed to eliminate stress and to obtain a good organization suitable for machining, the annealing temperature should be carried out between 800 ℃ -850 ℃, keep the appropriate time to make the steel heated evenly. Cool slowly in the furnace.
This heat treatment will obtain a martensitic organization after quenching and increase the surface NMness and strength.AISI 4130 round steel should be carried out between 870°C-890°C, kept for a suitable period of time to allow the steel to be heated sufficiently, and then quenched in oil, or water. It should be tempered immediately after quenching.
AISI 4130 round steel is used as forgings in the aerospace, oil and gas, automotive, agricultural and defense industries. Typical applications for 4130 round steel include: forged valve bodies, pumps, aircraft engine mounts, welded pipe, fittings, hydraulic tools, and more.

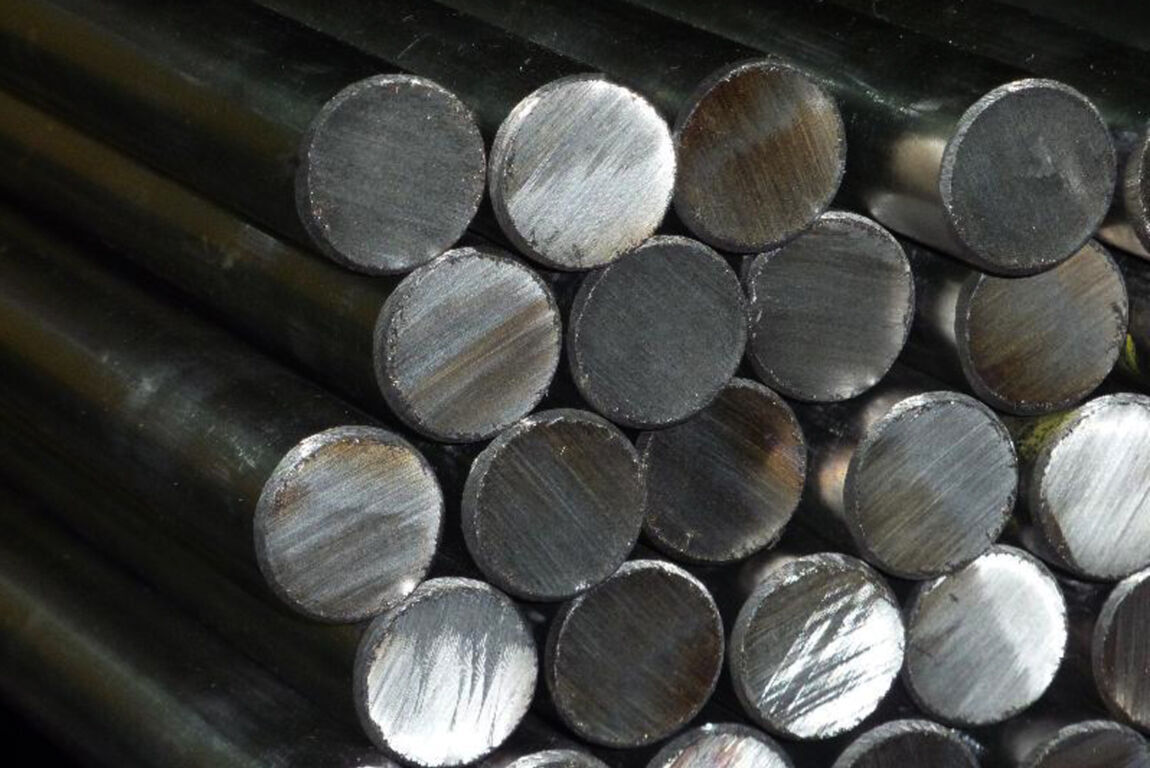

4130 Round Stock Metal Product Image
GNEE Group Team Photo
GNEE group customer visit
We have excellent after-sales service. If you have any questions about 4130 Round Bar Stock, you can contact us and we will reply to you within two hours.
