What a Connection Has to Do
An H-beam connection transfers some combination of shear, bending moment and axial force from one member to another. The joint type follows the structural action: a simply supported beam needs a shear connection at each end, a rigid frame needs a moment connection capable of transferring rotation restraint, and a bracing member needs an axial connection that also tolerates the small rotations of a frame under load. Detailing that ignores the intended action is the most common cause of site problems, so the design should always state the forces the connection must carry rather than describing a joint type alone.
Comparison of Connection Methods
| Method | Primary use | Key strength | Main limitation |
|---|---|---|---|
| Bolted with high-strength bolts | Beam-to-column and beam-to-beam, site joints | Fast erection, adjustable, demountable | Requires accurate hole alignment |
| Welded | Shop fabrication, moment connections | Continuous load path, stiff and compact | Site quality control and access |
| Bolted end plate | Moment connections to columns | Shop-welded plate, site-bolted interface | Plate stiffness controls bolt force |
| Flange and web splice | Extending member length | Restores section capacity | Requires precise two-part detailing |
Bolted Connections
High-strength bolting is the default for site connections. In North American practice the bolts are covered by ASTM F3125/F3125M, which consolidates the familiar A325 and A490 grades: A325 material has a minimum tensile strength of 825 MPa up to 1 inch diameter, and A490 material 1035 MPa. In European practice, property classes 8.8 and 10.9 to ISO 898-1 are used with HV or HR bolt assemblies to EN 14399 series, and the connection design follows EN 1993-1-8.
Three detailing rules govern whether the joint will assemble and perform:
1. Hole clearance must match the bolt class and the connection type; oversize holes reduce slip resistance and are only permitted where the design accounts for it.
2. Minimum edge distance and bolt spacing must be respected to prevent tear-out and block shear.
3. For slip-critical joints, the faying surfaces must be prepared to the specified class, because coating thickness and cleanliness change the slip factor.

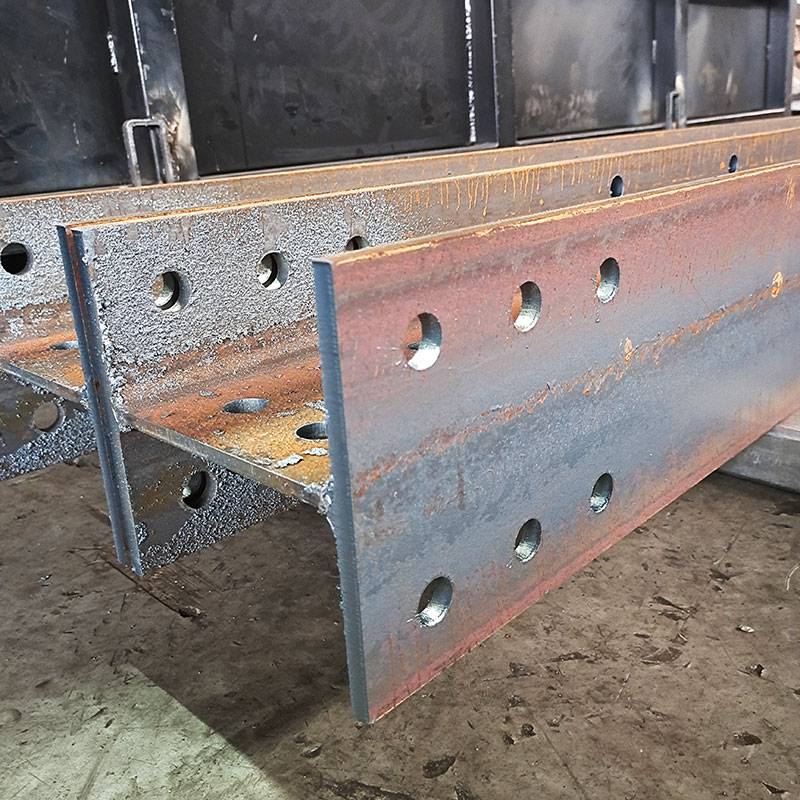

Pre-drilled beams with holes produced under shop conditions to the connection drawing remove the risk of hole misalignment on site and are the usual way large repetitive frames are procured.
Welded and Hybrid Connections
Welding gives the stiffest and most compact joint and is normally done in the shop where position, preheat and access can be controlled. Design and fabrication follow a structural welding code such as AWS D1.1/D1.1M, with electrodes such as E70XX giving a minimum weld metal tensile strength of 70 ksi, or an equivalent classification in the European system. Execution of steel structures, including welder qualification, inspection levels and tolerances, is covered by EN 1090-2.
The hybrid solution used in most framed buildings is a shop-welded end plate or shear tab bolted to the column in the shop, with a bolted site interface. This keeps the difficult welding off site while preserving the speed of bolted erection, and it localises inspection to a controlled environment.
Installation and Inspection
Bolted joints are inspected for hole alignment, bolt grade marking, correct tightening method and, in slip-critical connections, for the specified surface condition. Torque or tension control methods should be the ones stated in the design, because a torque value alone does not confirm the preload achieved. Welded joints are inspected visually first, then by the non-destructive method and extent required by the relevant execution class. Dimensional checks on the erected frame, including plumb, level and member alignment, should be carried out before any bolted connection is finally tightened.
Frequently Asked Questions
Q: Should an H-beam connection be bolted or welded?
A: Use bolting where the joint must be assembled on site, adjusted, or opened later for maintenance; use welding where maximum stiffness is required and access allows controlled shop conditions. Most steel frames combine both, with shop welds and site bolts.
Q: Which bolt grades are used in structural steelwork?
A: In North American practice, ASTM F3125/F3125M grades equivalent to A325 and A490, with minimum tensile strengths of 825 MPa and 1035 MPa respectively. In European practice, property classes 8.8 and 10.9 to ISO 898-1 used in assemblies to the EN 14399 series.
Q: What electrode class is used for structural welds?
A: E70XX electrodes such as E7018 give a minimum tensile strength of 70 ksi (about 480 MPa) and are widely used for carbon steel frames. The exact classification and any toughness requirement are set by the welding code and the base metal grade specified for the project.
Q: Can bolt holes be drilled on site?
A: They can, but the result is rarely as accurate as shop drilling and the coating around each hole must be repaired afterwards. Where a frame has many repetitive connections, pre-drilling in the shop to the connection drawing is faster and produces a better joint.
Q: How is a moment connection different from a shear connection?
A: A shear connection only needs to transfer vertical reaction, so a simple bolted web cleat is sufficient. A moment connection must also transfer bending moment into the column, which requires the flanges to be connected and often needs stiffeners or a full-depth end plate so the bolts are loaded in tension.
Q: What information does a fabricator need to drill a connection?
A: A dimensioned connection drawing showing bolt grades, hole diameters, edge distances, bolt spacing, plate sizes and any stiffener details, together with the member section and orientation. Ambiguity in the drawing is the main cause of rework on bolted frames.
