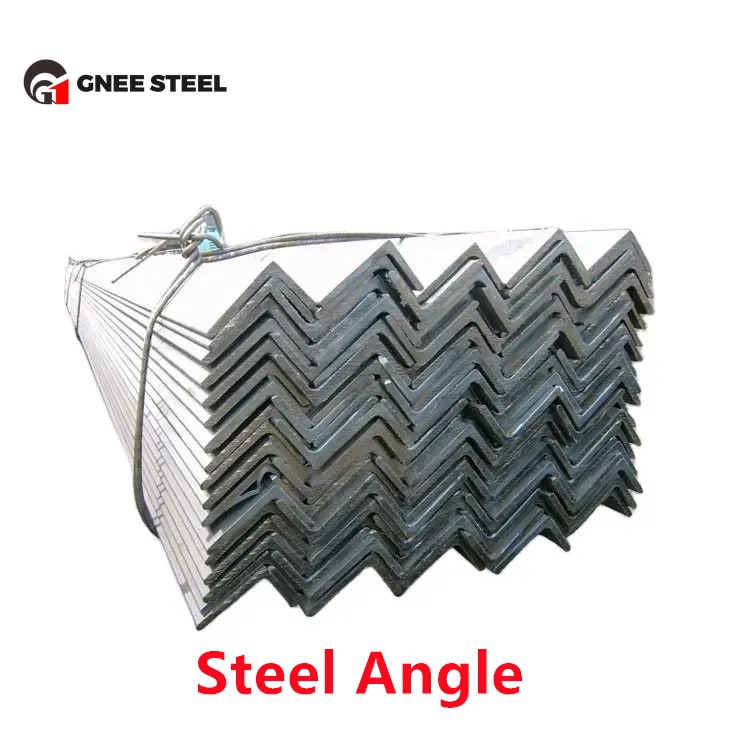

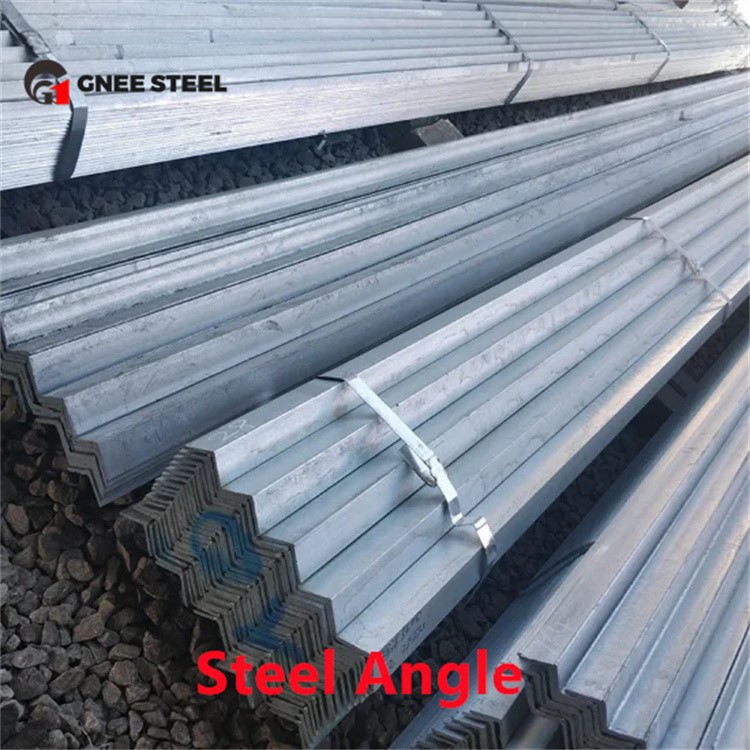

Prime Quality Angel Iron Hot Rolled Q235 S235jr S355jr Angle Steel

Prime Quality Angel Iron Hot Rolled Q235 S235jr S355jr Angle Steel is a high-end structural steel product, characterized by its premium quality, advanced hot-rolling manufacturing process, and three superior-grade steel materials. As a versatile L-shaped angle steel (available in equal-side and unequal-side configurations), it is engineered to meet the strict requirements of Chinese, European, and global structural standards, delivering exceptional mechanical performance, structural stability, and workability. This prime-quality angle steel serves as a fundamental component in various industrial, construction, and infrastructure projects, embodying the perfect combination of reliability, durability, and cost-effectiveness.

The product's prime quality is rooted in its three carefully selected steel grades, each with strictly controlled chemical compositions and mechanical properties to cater to diverse project requirements. Q235, a Chinese national standard (GB/T 700) carbon structural steel, is renowned for its balanced performance and cost-effectiveness. With a carbon content ranging from 0.14% to 0.22%, supplemented by manganese (0.30%-0.70%) and silicon, it offers a minimum yield strength of 235 MPa and a tensile strength range of 370-500 MPa. This grade is ideal for general structural applications where reliable load-bearing capacity and economic efficiency are prioritized.

S235JR is a European standard (EN 10025-2) non-alloy structural steel, widely recognized for its stable performance and excellent toughness. The "JR" grade indicates notch impact resistance at 20°C, ensuring the material can withstand sudden loads in normal working environments. With a minimum yield strength of 235 MPa (at room temperature) and a tensile strength of 360-510 MPa, its chemical composition (carbon ≤0.17%, manganese 0.30%-0.60%) guarantees consistent mechanical properties, making it suitable for European and global projects adhering to EN specifications.

S355JR, also a European standard (EN 10025-2) low-alloy high-strength steel, is an upgraded option for heavy-load applications. Boasting a minimum yield strength of 355 MPa and a tensile strength range of 470-630 MPa, it is enhanced by trace alloying elements (manganese, silicon, vanadium) that improve its toughness, impact resistance, and wear resistance. With a carbon content ≤0.20% and manganese content 1.00%-1.60%, S355JR is designed for high-stress structural scenarios, such as heavy machinery supports, bridge bracing, and large-scale building frames.

Advanced hot-rolling technology is a core factor ensuring the prime quality of this angle steel. During production, steel billets of the selected grades are heated to a high temperature (above 1000°C) to soften the material, then subjected to precision rolling to form the L-shaped cross-section. This hot-rolling process refines the internal grain structure of the steel, eliminates internal defects such as pores, inclusions, and microcracks, and enhances ductility and toughness. Unlike cold-rolled products, the hot-rolled angle steel maintains a natural oxide film on its surface, which preserves the material's inherent properties and provides a stable base for subsequent surface treatments if required.

As prime-quality angle iron, this product exhibits exceptional workability, a key advantage for structural fabrication. It can be easily cut, bent, drilled, and welded using standard industrial methods, including arc welding, MIG welding, and TIG welding. The optimized chemical composition of each steel grade minimizes the risk of hardening and cracking in the heat-affected zone during welding, ensuring strong, durable joints that maintain structural integrity. This workability allows for flexible fabrication, adapting to the diverse design requirements of different projects.

In terms of specifications, the Prime Quality Angel Iron Hot Rolled Q235 S235jr S355jr Angle Steel offers a comprehensive range of dimensions to meet varied application needs. Equal-side angle steel features leg lengths ranging from 20mm to 200mm with thicknesses of 3mm to 25mm, while unequal-side configurations have longer legs from 30mm to 200mm, shorter legs from 20mm to 125mm, and the same thickness range. Standard lengths are 6m, 9m, and 12m, with custom lengths (up to 18m) available for bulk orders to cater to project-specific requirements. Popular standard sizes include 50x50x5mm, 75x75x8mm, 100x100x10mm, and 125x75x10mm, all regularly stocked to ensure timely delivery.

Due to its prime quality and versatile performance, this angle steel is widely applied across multiple industries. In construction engineering, it is used for building frames, roof trusses, floor joists, scaffolding, balcony railings, and wall supports. In industrial fabrication, it serves as machinery supports, equipment bases, factory frameworks, and conveyor system components. In infrastructure projects, it is utilized in bridge bracing, transmission towers, road guardrails, and drainage systems. Additionally, it finds applications in warehousing (shelves, cargo pallets) and civil decoration, demonstrating its adaptability to diverse scenarios.

Each batch of this prime-quality angle steel undergoes rigorous quality control procedures to ensure consistency and reliability. Quality inspections include chemical composition analysis, mechanical property testing (yield strength, tensile strength, impact toughness), dimensional accuracy verification, and surface quality assessment. The natural hot-rolled surface can be further treated with hot-dip galvanization, electro-galvanization, or painting to enhance corrosion resistance, extending its service life in outdoor, humid, or corrosive environments. As a prime-quality structural material, it combines superior performance, diverse material options, and excellent workability, making it an indispensable choice for modern global engineering projects.
